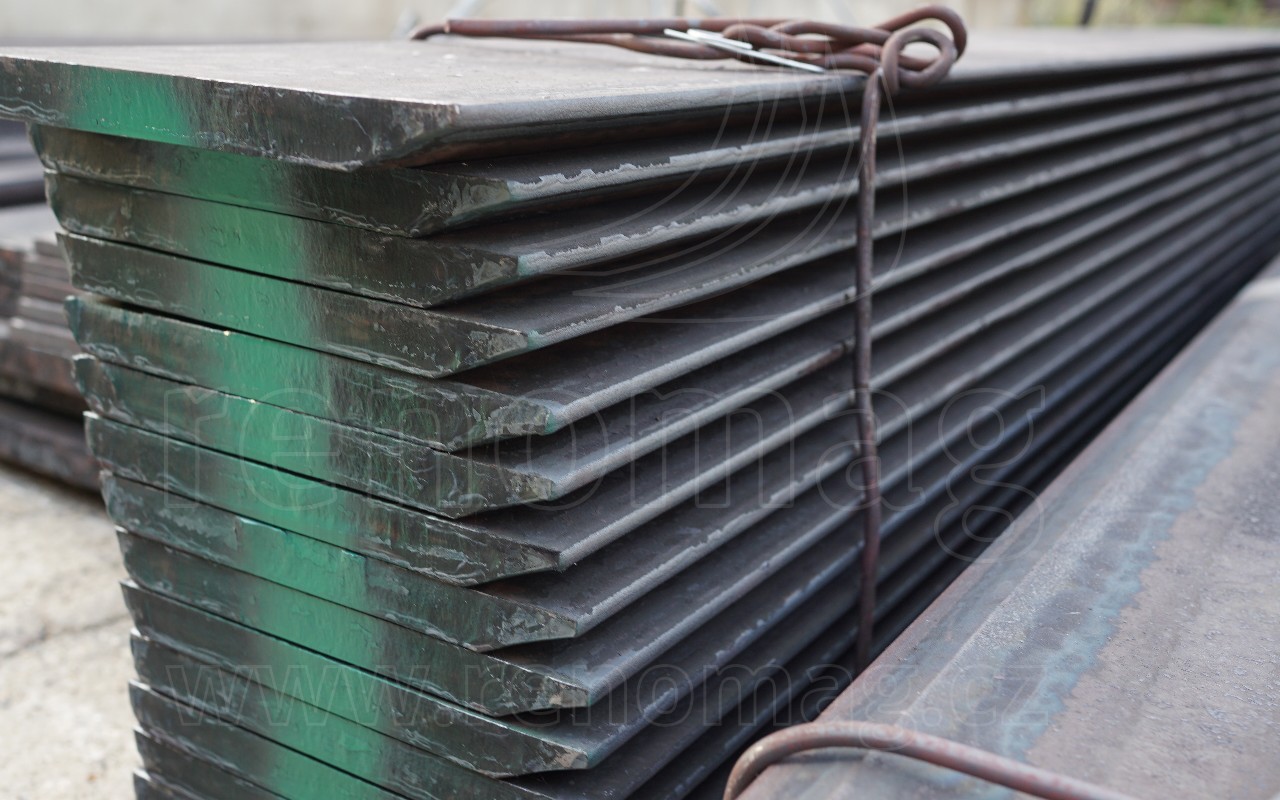

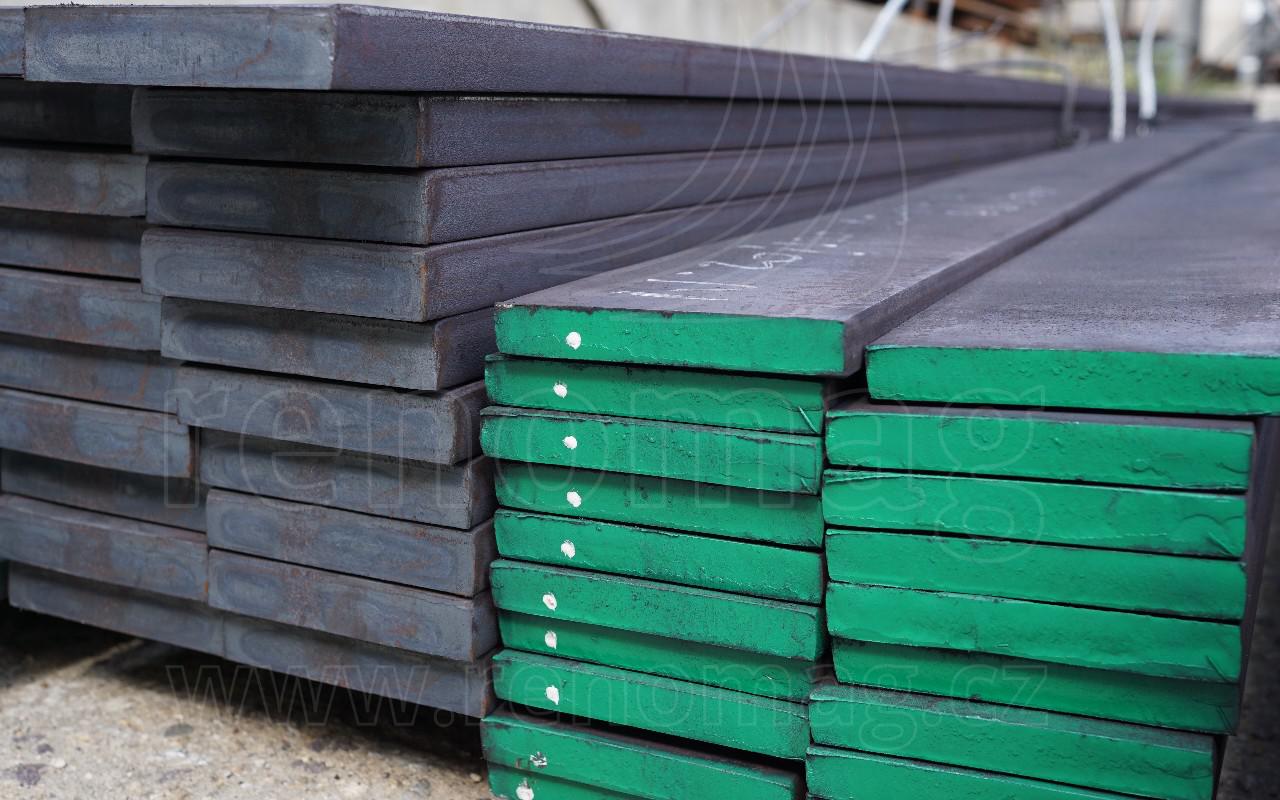

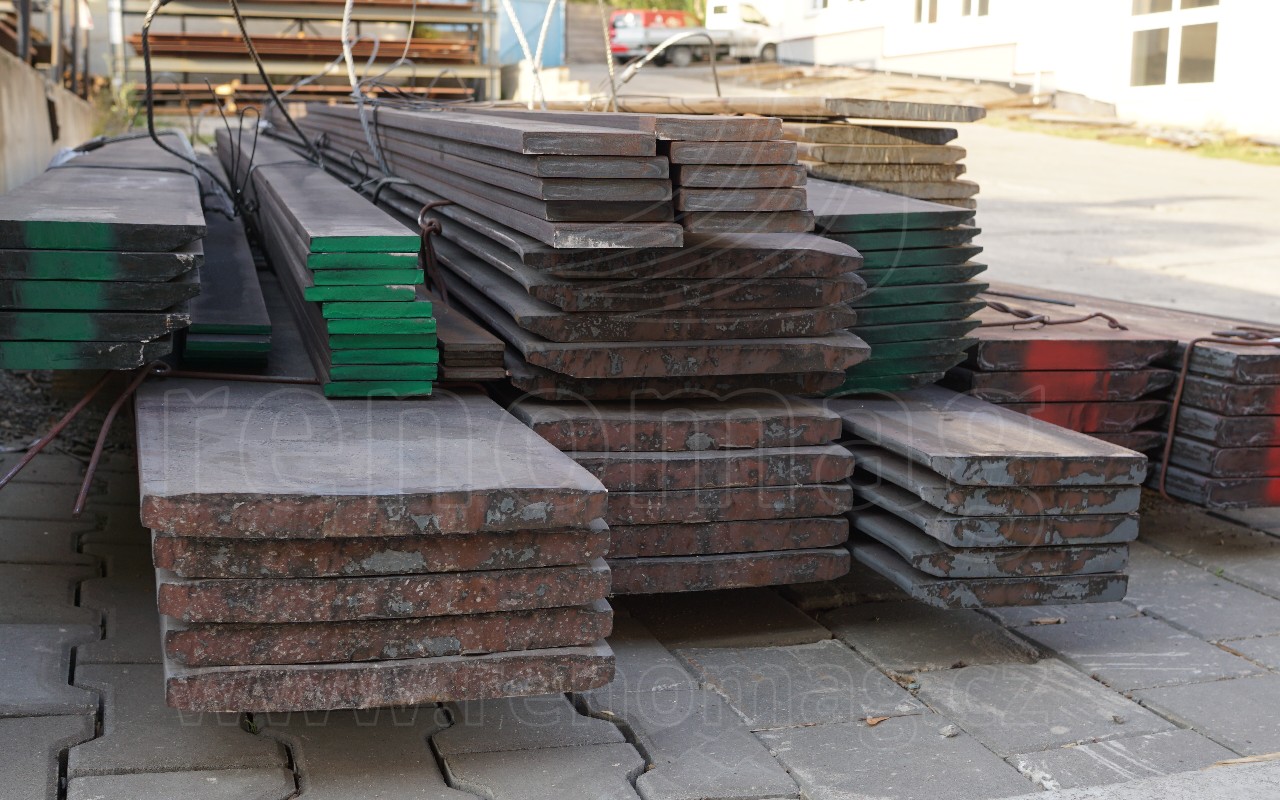

Brity a profily valcované v metráži
Pre opravu a výrobu lyžíc a lopát ponúkame valcovaný kalený profil, nadelený na dĺžku podľa priania zákazníka s úkosom tvrdosti 230 HB, 400 HB, 500 HB v rôznych hrúbkach. Výhodou tohto oteruvzdorného materiálu je dlhá životnosť (valcované houževnaté ostrie nie je ovplyvnené pálením), dobrá zvárateľnosť a u vybraného sortimentu možnosť okamžitého dodania. Uplatnenie je veľmi široké, od stavebnej techniky ako je minirýpadlo, traktorbáger, rýpadlo, šmykom riadený alebo kolesový nakladač či buldozér, cez údržbu komunikácií pre sněžné pluhy až po stroje v poľnohospodárstve a lesníctve.
BRITY S JEDNOSTRANNÝM ÚKOSOM TVRDOSTI 500 HB | ||||||||
---|---|---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
|||||
A | B | C | D | E | ||||
PM08012BJ500 | 80 | 12 | 20,2 ° | 5 | 6300 | 7,1 | ||
PM11012BJ500 | 110 | 12 | 23,9 ° | R3 | 3 | 6000 | 9,7 | |
PM11016BJ500 | 110 | 16 | 23,9 ° | R3 | 7 | 6000 | 13,1 | |
PM15016BJ500 | 150 | 16 | 24 ° | 5 | 7 | 6000 | 18 | |
PM15020BJ500 | 150 | 20 | 22,6 ° | 5 | 5 | 6000 | 21,5 | |
PM20020BJ500 | 200 | 20 | 23 ° | 8 | 6 | 6000 | 29,5 | |
PM20025BJ500 | 200 | 25 | 23 ° | 8 | 11 | 6000 | 37,4 | |
PM24525BJ500 | 245 | 25 | 22,6 ° | 10 | 8 | 6000 | 44,9 | |
PM25025BJ500 | 250 | 25 | 22,6 ° | 10 | 6 | 6000 | 45,6 | |
PM25030BJ500 | 250 | 30 | 22,6 ° | 10 | 11 | 6000 | 55,3 | |
PM27032BJ500 | 270 | 32 | 23 ° | 10 | 10 | 6000 | 63,1 | |
PM27035BJ500 | 270 | 35 | 23 ° | 10 | 13 | 6000 | 69,1 | |
PM30030BJ500 | 300 | 30 | 23 ° | 10 | 8 | 6100 | 66,1 | |
PM30035BJ500 | 300 | 35 | 23 ° | 10 | 13 | 6100 | 77,7 | |
PM30040BJ500 | 300 | 40 | 23 ° | 10 | 18 | 6100 | 89,4 | |
PM30050BJ500 | 300 | 50 | 23 ° | 10 | 28 | 6100 | 112,9 | |
PM40040BJ500 | 400 | 40 | 24 ° | 12 | 15 | 6100 | 119,5 | |
PM40045BJ500 | 400 | 45 | 24 ° | 12 | 20 | 6100 | 135,2 | |
PM40050BJ500 | 400 | 50 | 24 ° | 12 | 25 | 6100 | 150,9 |
BRITY S JEDNOSTRANNÝM ÚKOSOM TVRDOSTI 400 HB | ||||||||
---|---|---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
|||||
A | B | C | D | E | ||||
PM08012BJ400 | 80 | 12 | 20,2 ° | 5 | 6300 | 7,1 | ||
PM11012BJ400 | 110 | 12 | 23,9 ° | R3 | 3 | 6000 | 9,7 | |
PM11016BJ400 | 110 | 16 | 23,9 ° | R3 | 7 | 6000 | 13,1 | |
PM15016BJ400 | 150 | 16 | 24 ° | 5 | 7 | 6000 | 18 | |
PM15020BJ400 | 150 | 20 | 22,6 ° | 5 | 5 | 6000 | 21,5 | |
PM20020BJ400 | 200 | 20 | 23 ° | 8 | 6 | 6000 | 29,5 | |
PM20025BJ400 | 200 | 25 | 23 ° | 8 | 11 | 6000 | 37,4 | |
PM24525BJ400 | 245 | 25 | 22,6 ° | 10 | 8 | 6000 | 44,9 | |
PM25025BJ400 | 250 | 25 | 22,6 ° | 10 | 6 | 6000 | 45,6 | |
PM25030BJ400 | 250 | 30 | 22,6 ° | 10 | 11 | 6000 | 55,3 | |
PM27032BJ400 | 270 | 32 | 23 ° | 10 | 10 | 6000 | 63,1 | |
PM27035BJ400 | 270 | 35 | 23 ° | 10 | 13 | 6000 | 69,1 | |
PM30030BJ400 | 300 | 30 | 23 ° | 10 | 8 | 6100 | 66,1 | |
PM30035BJ400 | 300 | 35 | 23 ° | 10 | 13 | 6100 | 77,7 | |
PM30040BJ400 | 300 | 40 | 23 ° | 10 | 18 | 6100 | 89,4 | |
PM30050BJ400 | 300 | 50 | 23 ° | 10 | 28 | 6100 | 112,9 | |
PM40040BJ400 | 400 | 40 | 24 ° | 12 | 15 | 6100 | 119,5 | |
PM40045BJ400 | 400 | 45 | 24 ° | 12 | 20 | 6100 | 135,2 | |
PM40050BJ400 | 400 | 50 | 24 ° | 12 | 25 | 6100 | 150,9 |

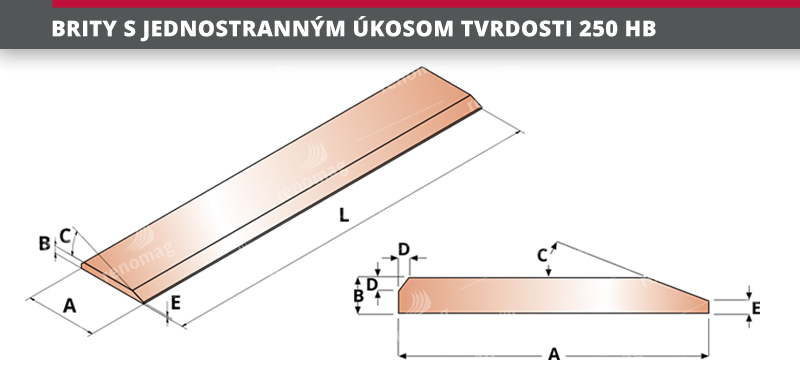

BRITY S JEDNOSTRANNÝM ÚKOSOM TVRDOSTI 250 HB | ||||||||
---|---|---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
|||||
A | B | C | D | E | ||||
PM08012BJ250 | 80 | 12 | 20,2 ° | 5 | 6300 | 7,1 | ||
PM11012BJ250 | 110 | 12 | 23,9 ° | R3 | 3 | 6000 | 9,7 | |
PM11016BJ250 | 110 | 16 | 23,9 ° | R3 | 7 | 6000 | 13,1 | |
PM15016BJ250 | 150 | 16 | 24 ° | 5 | 7 | 6000 | 18 | |
PM15020BJ250 | 150 | 20 | 22,6 ° | 5 | 5 | 6000 | 21,5 | |
PM20020BJ250 | 200 | 20 | 23 ° | 8 | 6 | 6000 | 29,5 | |
PM20025BJ250 | 200 | 25 | 23 ° | 8 | 11 | 6000 | 37,4 | |
PM24525BJ250 | 245 | 25 | 22,6 ° | 10 | 8 | 6000 | 44,9 | |
PM25025BJ250 | 250 | 25 | 22,6 ° | 10 | 6 | 6000 | 45,6 | |
PM25030BJ250 | 250 | 30 | 22,6 ° | 10 | 11 | 6000 | 55,3 | |
PM27032BJ250 | 270 | 32 | 23 ° | 10 | 10 | 6000 | 63,1 | |
PM27035BJ250 | 270 | 35 | 23 ° | 10 | 13 | 6000 | 69,1 | |
PM30030BJ250 | 300 | 30 | 23 ° | 10 | 8 | 6100 | 66,1 | |
PM30035BJ250 | 300 | 35 | 23 ° | 10 | 13 | 6100 | 77,7 | |
PM30040BJ250 | 300 | 40 | 23 ° | 10 | 18 | 6100 | 89,4 | |
PM30050BJ250 | 300 | 50 | 23 ° | 10 | 28 | 6100 | 112,9 | |
PM40040BJ250 | 400 | 40 | 24 ° | 12 | 15 | 6100 | 119,5 | |
PM40045BJ250 | 400 | 45 | 24 ° | 12 | 20 | 6100 | 135,2 | |
PM40050BJ250 | 400 | 50 | 24 ° | 12 | 25 | 6100 | 150,9 |

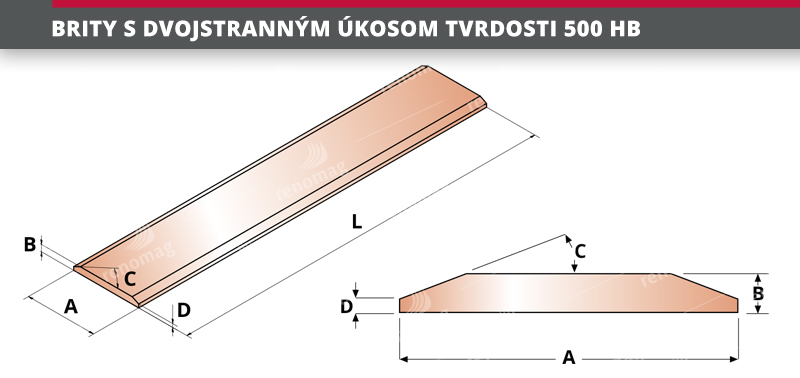

BRITY S DVOJSTRANNÝM ÚKOSOM TVRDOSTI 500 HB | |||||||
---|---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
||||
A | B | C | D | ||||
PM12015BD500 | 120 | 15 | 25 ° | 5 | 6500 | 12,2 | |
PM15216BD500 | 152,4 | 15,9 | 25 ° | 5 | 6500 | 17,4 | |
PM15219BD500 | 152,4 | 19,1 | 25 ° | 8,1 | 6500 | 21,0 | |
PM20316BD500 | 203,2 | 15,9 | 25 ° | 5 | 6500 | 23,7 | |
PM20319BD500 | 203,2 | 19,1 | 25 ° | 8,1 | 6500 | 28,5 | |
PM20325BD500 | 203,2 | 25,4 | 25 ° | 14,4 | 6500 | 38,5 | |
PM25419BD500 | 254 | 19,1 | 25 ° | 7,1 | 6500 | 36,0 | |
PM25425BD500 | 254 | 25,4 | 25 ° | 13,4 | 6500 | 48,5 | |
PM25430BD500 | 254 | 30 | 25 ° | 18 | 6500 | 57,7 | |
PM25432BD500 | 254 | 32 | 25 ° | 20 | 6500 | 61,4 | |
PM25435BD500 | 254 | 35 | 25 ° | 23 | 6500 | 67,4 | |
PM25441BD500 | 254 | 41 | 25 ° | 29 | 6500 | 79,3 | |
PM28025BD500 | 280 | 25 | 22,5 ° | 7 | 6500 | 48,9 | |
PM30525BD500 | 304,8 | 25,4 | 22,5 ° | 9,5 | 6500 | 56,0 | |
PM30529BD500 | 304,8 | 28,5 | 22,5 ° | 12,6 | 6500 | 63,6 | |
PM30532BD500 | 304,8 | 32 | 22,5 ° | 16,1 | 6500 | 71,8 | |
PM33025BD500 | 330 | 25 | 22,5 ° | 11 | 6500 | 61,0 | |
PM33029BD500 | 330 | 28,5 | 22,5 ° | 14,5 | 6500 | 70,1 | |
PM33030BD500 | 330 | 30 | 22,5 ° | 16 | 6500 | 74,0 | |
PM33032BD500 | 330 | 32 | 22,5 ° | 18 | 6500 | 79,2 | |
PM33035BD500 | 330 | 35 | 22,5 ° | 21 | 6500 | 87,0 | |
PM33038BD500 | 330 | 38 | 22,5 ° | 24 | 6500 | 94,7 | |
PM33041BD500 | 330 | 41 | 22,5 ° | 27 | 6500 | 102,5 | |
PM33050BD500 | 330 | 50 | 22,5 ° | 36 | 6500 | 126,1 | |
PM36030BD500 | 360 | 30 | 22,5 ° | 8 | 6500 | 75,6 | |
PM36035BD500 | 360 | 35 | 22,5 ° | 13 | 6500 | 89,9 | |
PM36040BD500 | 360 | 40 | 22,5 ° | 18 | 6500 | 103,9 | |
PM40625BD500 | 406 | 25 | 22,5 ° | 9 | 6500 | 74,8 | |
PM40629BD500 | 406 | 28,5 | 22,5 ° | 12,5 | 6500 | 86,0 | |
PM40632BD500 | 406 | 32 | 22,5 ° | 16 | 6500 | 97,1 | |
PM40635BD500 | 406 | 35 | 22,5 ° | 19 | 6500 | 106,7 | |
PM40638BD500 | 406 | 38 | 22,5 ° | 22 | 6500 | 116,0 | |
PM40641BD500 | 406 | 41 | 22,5 ° | 25 | 6500 | 125,8 | |
PM40645BD500 | 406 | 45 | 22,5 ° | 29 | 6500 | 138,6 | |
PM40650BD500 | 406 | 50 | 22,5 ° | 34 | 6500 | 154,5 | |
PM40660BD500 | 406 | 60 | 22,5 ° | 44 | 6500 | 186,2 |
* Tvrdosti 250 HB a 400 HB na dotaz

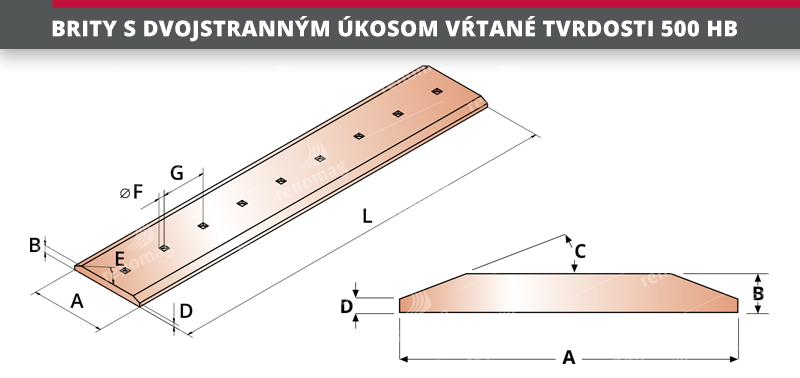

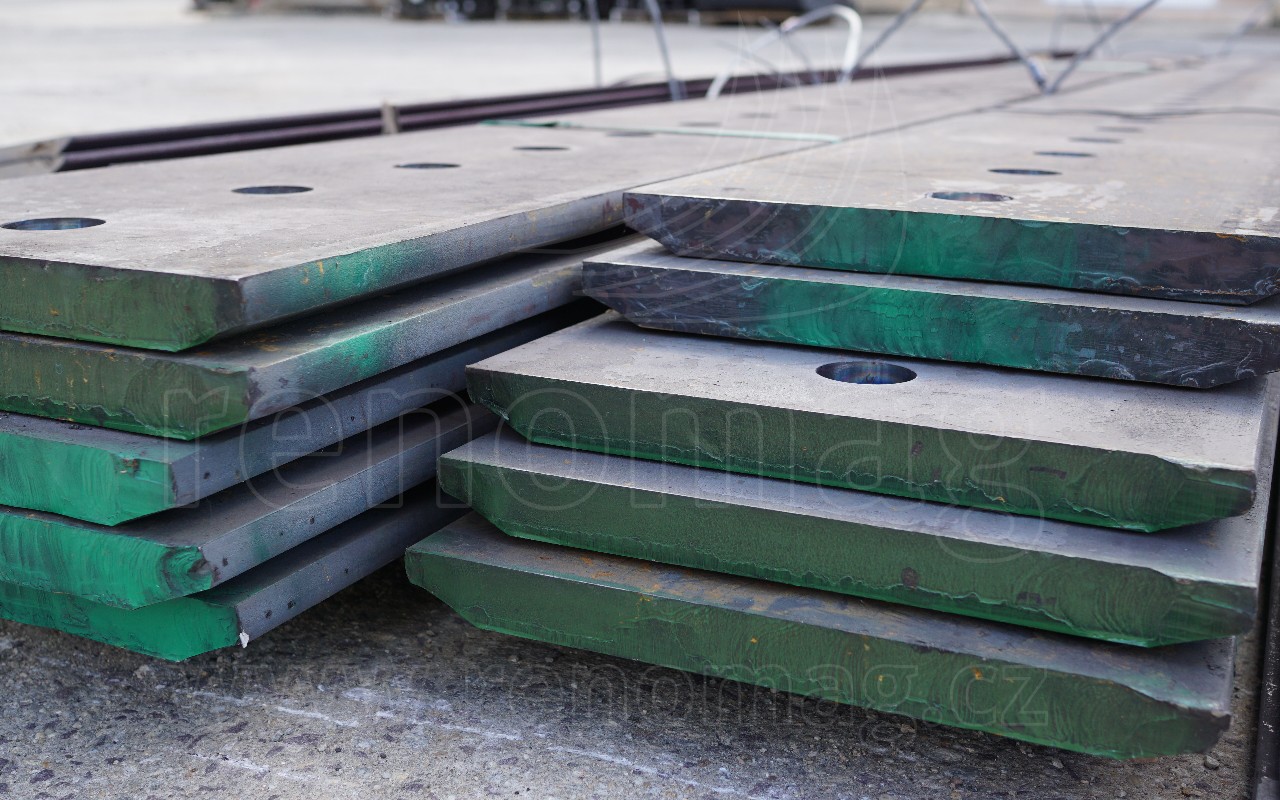

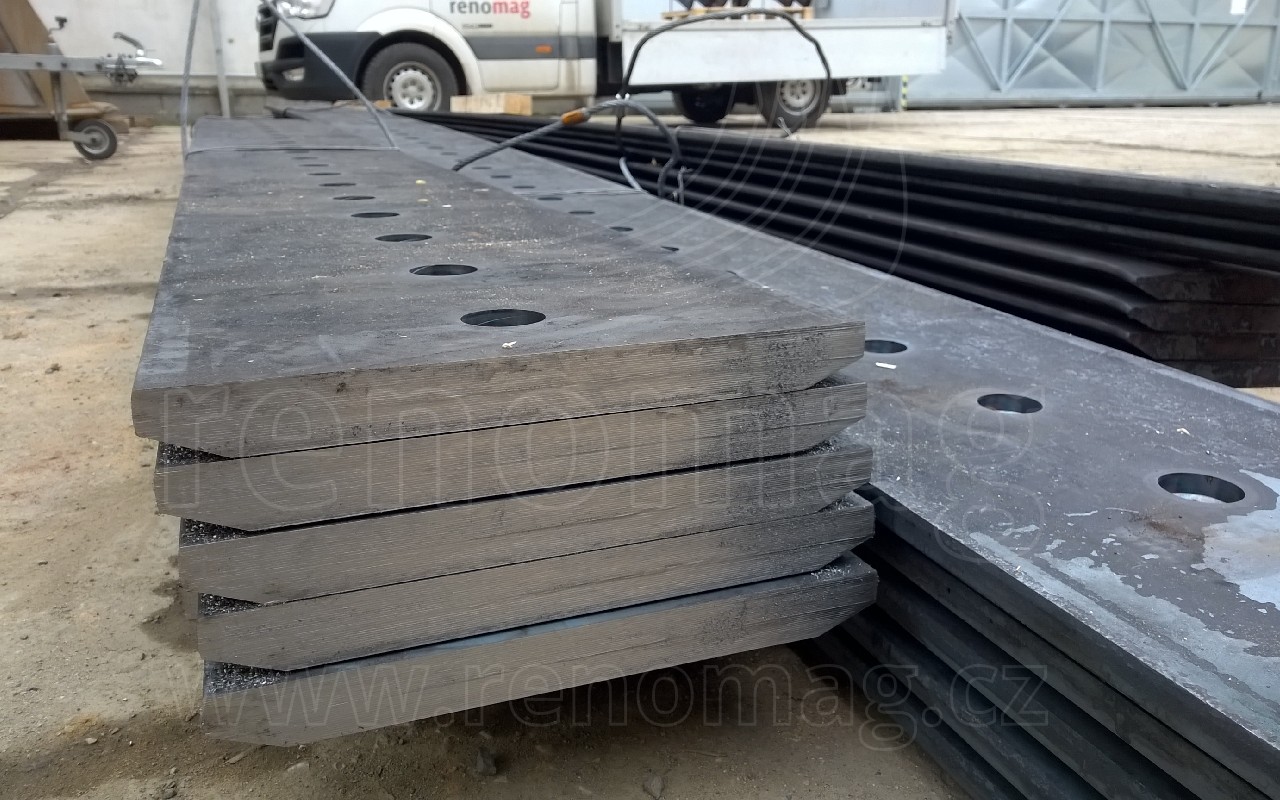

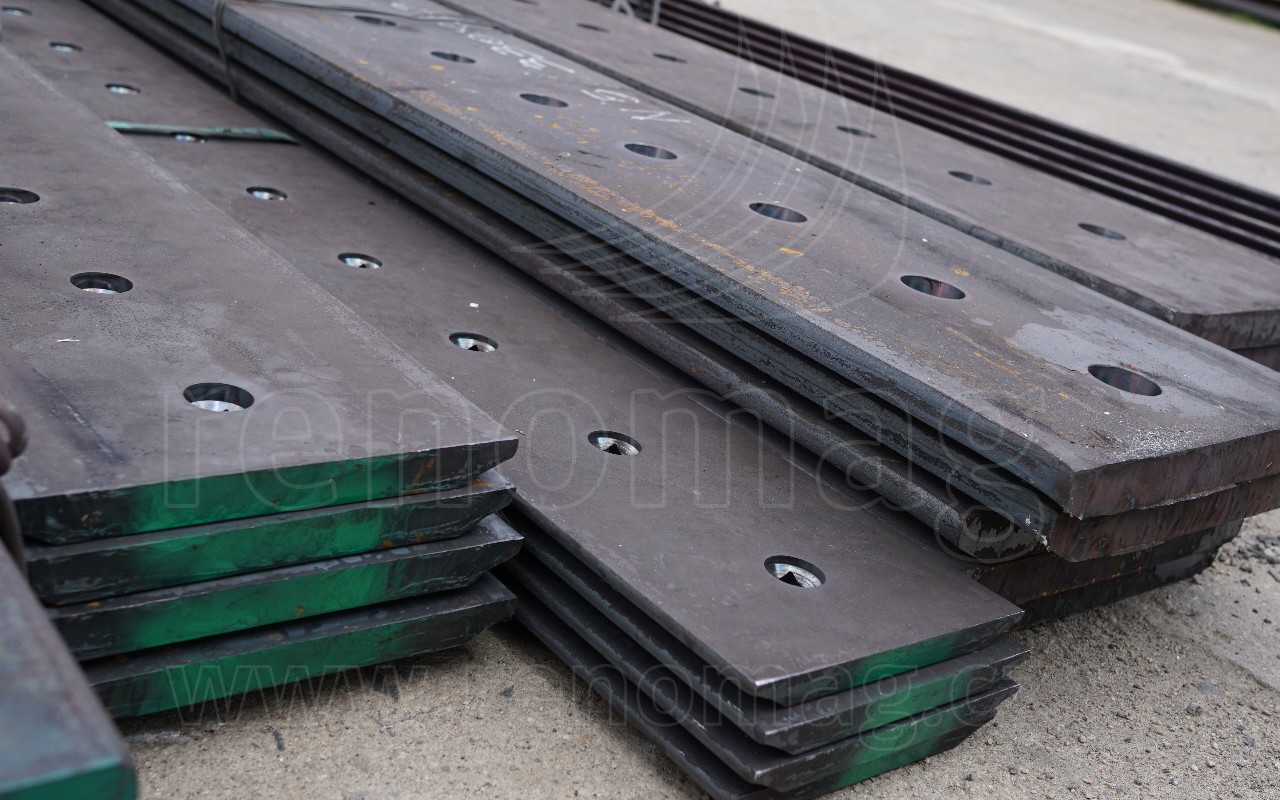

BRITY S DVOJSTRANNÝM ÚKOSOM VŔTANÉ TVRDOSTI 500 HB |
||||||||
---|---|---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
|||||
A | B | D | E | F | G | |||
PM15216BD500V658 | 152 | 6" | 16 | 5/8" | 5 | 25 ° | 16 | 5/8" | 152,4 | 6" | 6500 | 17,4 |
PM15219BD500V658 | 152 | 6" | 19 | 3/4" | 8 | 25 ° | 16 | 5/8" | 152,4 | 6" | 6500 | 20,1 |
PM20319BD500V458 | 203 | 8" | 19 | 3/4" | 8 | 25 ° | 16 | 5/8" | 101,6 | 4" | 5000 | 28,5 |
PM20319BD500V658 | 203 | 8" | 19 | 3/4" | 8 | 25 ° | 16 | 5/8" | 152,4 | 6" | 6500 | 28,5 |
PM20319BD500V634 | 203 | 8" | 19 | 3/4" | 8 | 25 ° | 20 | 3/4" | 152,4 | 6" | 6500 | 28,4 |
PM20325BD500V634 | 203 | 8" | 25 | 1" | 14 | 25 ° | 20 | 3/4" | 152,4 | 6" | 6500 | 38,5 |
PM25425BD500V634 | 254 | 10" | 25 | 1" | 12 | 25 ° | 20 | 3/4" | 152,4 | 6" | 6500 | 48,6 |
PM25425BD500V678 | 254 | 10" | 25 | 1" | 12 | 25 ° | 22 | 7/8" | 152,4 | 6" | 6500 | 48,5 |
PM25425BD500V61 | 254 | 10" | 25 | 1" | 12 | 25 ° | 25 | 1" | 152,4 | 6" | 6500 | 48,4 |
PM25438BD500V61 | 254 | 10" | 38 | 1 1/2" | 25 | 25 ° | 25 | 1" | 152,4 | 6" | 6500 | 73 |
PM33029BD500V61 | 330 | 13" | 28,5 | 1 1/8" | 15 | 22,3 ° | 25 | 1" | 152,4 | 6" | 6500 | 70,2 |
PM33029BD500V6114 | 330 | 13" | 28,5 | 1 1/8" | 15 | 22,3 ° | 32 | 1 1/4" | 152,4 | 6" | 6500 | 70,1 |
PM33032BD500V61 | 330 | 13" | 32 | 1 1/4" | 21,5 | 22,3 ° | 25 | 1" | 152,4 | 6" | 6500 | 79,5 |
PM33035BD500V678 | 330 | 13" | 35 | 1 1/2" | 21,5 | 22,3 ° | 22 | 7/8" | 152,4 | 6" | 6500 | 86,9 |
PM33035BD500V61 | 330 | 13" | 35 | 1 1/2" | 21,5 | 22,3 ° | 25 | 1" | 152,4 | 6" | 6500 | 86,8 |
PM33041BD500V61 | 330 | 13" | 41 | 1 5/8" | 27,5 | 22,3 ° | 25 | 1" | 152,4 | 6" | 6500 | 102,5 |
PM40641BD500V61 | 406 | 16" | 41 | 1 5/8" | 24,5 | 22,3 ° | 25 | 1" | 152,4 | 6" | 6500 | 125,8 |
PM40641BD500V6114 | 406 | 16" | 41 | 1 5/8" | 24,5 | 22,3 ° | 32 | 1 1/4" | 152,4 | 6" | 6500 | 125,6 |
PM40650BD500V61 | 406 | 16" | 50 | 2" | 27,5 | 22,3 ° | 25 | 1" | 152,4 | 6" | 6500 | 154,5 |
* Tvrdosti 250 HB a 400 HB na dotaz

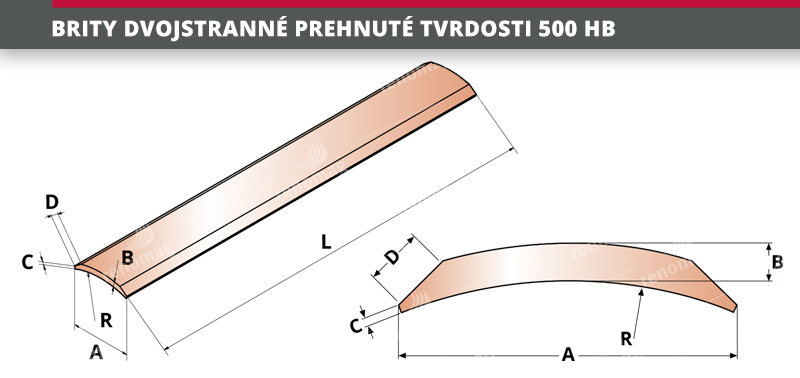

BRITY DVOJSTRANNÉ PREHNUTÉ TVRDOSTI 500 HB |
|||||||
---|---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
||||
A | B | C | D | R | |||
PM15213DP500 | 152,4 | 12,7 | 2,5 | 33,3 | 273 | 6500 | 13,3 |
PM15216DP500 | 152,4 | 15,9 | 5,5 | 33,3 | 273 | 6500 | 17,2 |
PM15219DP500 | 152,4 | 19,1 | 8,6 | 33,3 | 273 | 6500 | 20,4 |
PM20316DP500 | 203,2 | 15,9 | 5,5 | 33,3 | 273 | 6500 | 23,3 |
PM20319DP500 | 203,2 | 19,1 | 8,6 | 33,3 | 273 | 6500 | 28,3 |
PM20325DP500 | 203,2 | 25,4 | 14,7 | 33,3 | 273 | 6500 | 38,7 |
* Tvrdosti 250 HB a 400 HB na dotaz

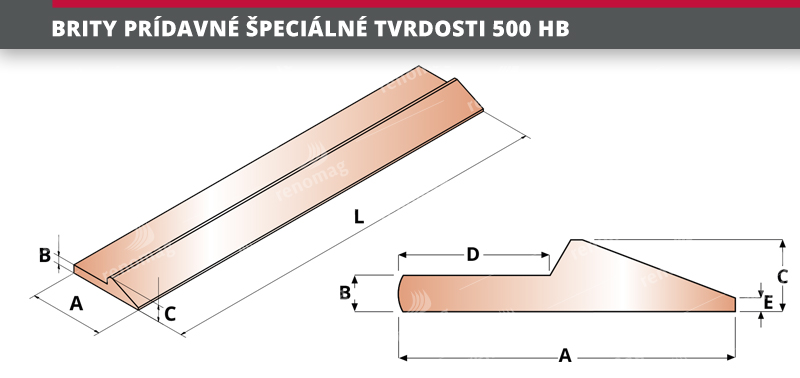

BRITY PRÍDAVNÉ ŠPECIÁLNÉ TVRDOSTI 500 HB | |||||||
---|---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
||||
A | B | C | D | E | |||
PM10111BP500 | 101 | 11 | 21 | 46 | 3 | 6100 | 9,8 |
PM15116BP500 | 151 | 16 | 32 | 68 | 6 | 6100 | 21,3 |
PM20319BP500 | 203 | 19 | 32 | 127 | 5 | 6100 | 31,0 |
PM25429BP500 | 254 | 29 | 58 | 130 | 10 | 7400 | 66,2 |
PM25440BP500 | 254 | 40 | 69 | 130 | 21 | 7400 | 88,5 |
* Tvrdosti 250 HB a 400 HB na dotaz

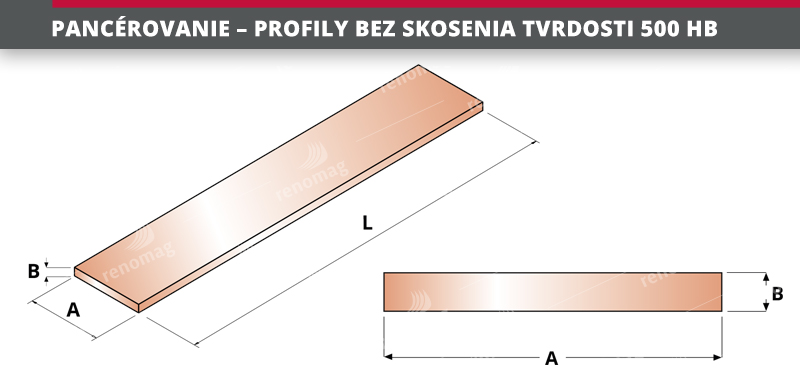

PANCIEROVANIE - PROFILY BEZ SKOSENIA TVRDOSTI 500 HB |
||||
---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
|
A | B | |||
PM06008PP500 | 60 | 8 | 6000 | 3,8 |
PM06010PP500 | 60 | 10 | 6000 | 4,7 |
PM08010PP500 | 80 | 10 | 6000 | 6,3 |
PM08015PP500 | 80 | 15 | 6000 | 9,4 |
PM10010PP500 | 100 | 10 | 6000 | 7,8 |
PM10012PP500 | 100 | 12 | 6000 | 9,3 |
PM10015PP500 | 100 | 15 | 6000 | 11,7 |
PM10020PP500 | 100 | 20 | 6000 | 16,0 |
PM12012PP500 | 120 | 12 | 6000 | 11,2 |
PM12015PP500 | 120 | 15 | 6000 | 14,1 |
PM12020PP500 | 120 | 20 | 6000 | 18,7 |
PM13015PP500 | 130 | 15 | 6000 | 15,2 |
PM15015PP500 | 150 | 15 | 6000 | 17,6 |
PM15020PP500 | 150 | 20 | 6000 | 23,4 |
PM16015PP500 | 160 | 15 | 6000 | 18,7 |
PM18020PP500 | 180 | 20 | 6000 | 28,1 |
PM20015PP500 | 200 | 15 | 6000 | 23,4 |
PM20020PP500 | 200 | 20 | 6000 | 31,2 |
* Tvrdosti 250 HB a 400 HB na dotaz

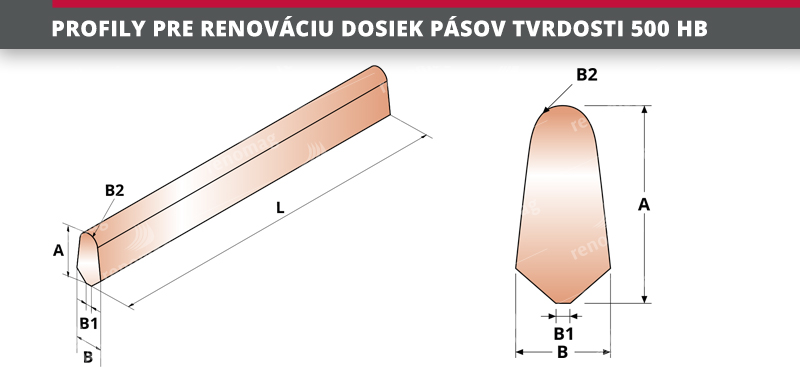

PROFILY PRE RENOVÁCIU DOSIEK PÁSOV TVRDOSTI 500 HB | ||||||
---|---|---|---|---|---|---|
Označenie | Rozmery (mm) | Dĺžka profilu max. v mm (L) |
Hmotnosť (kg/m) |
|||
A | B | B1 | B2 | |||
PM03016RD500 | 30 | 16 | 4 | 5 | 3000 | 2,8 |
PM04022RD500 | 40 | 22 | 5 | 7 | 3000 | 5,2 |
PM05027RD500 | 50 | 27 | 6 | 10 | 3000 | 8,4 |
PM06530RD500 | 65 | 30 | 10 | 10 | 3000 | 12,0 |
PM06837RD500 | 68 | 37 | 12 | 14 | 3000 | 15,7 |
* Tvrdosti 250 HB a 400 HB na dotaz
** Ďalšie rozmery na dotaz

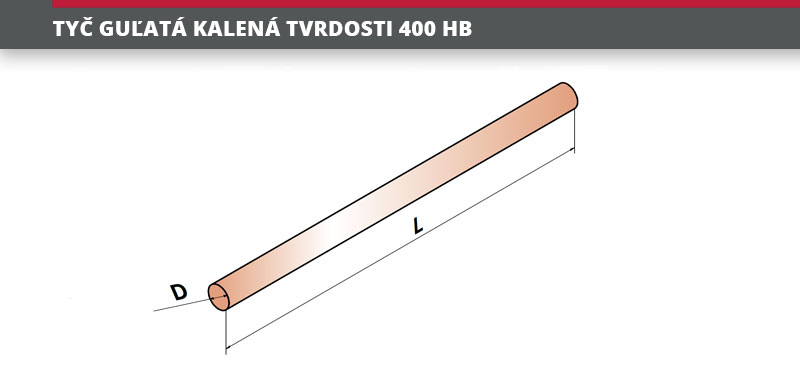

TYČ GUĽATÁ KALENÁ TVRDOSTI 400 HB | |||||
---|---|---|---|---|---|
Označenie | Rozmery (mm) | Maximálna dĺžka profilu v mm (L) |
Hmotnosť (kg/m) |
||
Priemer (D) |
Tolerancia | ||||
PM00020TK400 | 20 | +/- 0,5 | 5000 | 2,47 | |
PM00022TK400 | 22 | +/- 0,5 | 5000 | 2,98 | |
PM00024TK400 | 24 | +/- 0,5 | 5000 | 3,55 | |
PM00025TK400 | 25 | +/- 0,5 | 5000 | 3,85 | |
PM00026TK400 | 26 | +/- 0,6 | 5000 | 4,17 | |
PM00027TK400 | 27 | +/- 0,6 | 5000 | 4,49 | |
PM00028TK400 | 28 | +/- 0,6 | 5000 | 4,83 | |
PM00030TK400 | 30 | +/- 0,6 | 5000 | 5,55 | |
PM00032TK400 | 32 | +/- 0,6 | 5000 | 6,31 | |
PM00035TK400 | 35 | +/- 0,6 | 5000 | 7,55 | |
PM00036TK400 | 36 | +/- 0,8 | 5000 | 7,99 | |
PM00038TK400 | 38 | +/- 0,8 | 5000 | 8,9 | |
PM00040TK400 | 40 | +/- 0,8 | 5000 | 9,86 | |
PM00042TK400 | 42 | +/- 0,8 | 5000 | 10,88 | |
PM00045TK400 | 45 | +/- 0,8 | 5000 | 12,48 | |
PM00048TK400 | 48 | +/- 0,8 | 5000 | 14,2 | |
PM00050TK400 | 50 | +/- 0,8 | 5000 | 15,41 | |
PM00052TK400 | 52 | +/- 1,0 | 5000 | 16,67 | |
PM00055TK400 | 55 | +/- 1,0 | 5000 | 18,65 | |
PM00060TK400 | 60 | +/- 1,0 | 5000 | 22,19 | |
PM00063TK400 | 63 | +/- 1,0 | 5000 | 14,47 | |
PM00065TK400 | 65 | +/- 1,0 | 5000 | 26,05 | |
PM00070TK400 | 70 | +/- 1,0 | 5000 | 30,21 | |
PM00073TK400 | 73 | +/- 1,0 | 5000 | 32,85 | |
PM00075TK400 | 75 | +/- 1,0 | 5000 | 34,68 | |
PM00080TK400 | 80 | +/- 1,0 | 5000 | 39,46 | |
PM00085TK400 | 85 | +/- 1,3 | 5000 | 44,54 | |
PM00090TK400 | 90 | +/- 1,3 | 5000 | 49,94 | |
PM00095TK400 | 95 | +/- 1,3 | 5000 | 55,64 | |
PM00100TK400 | 100 | +/- 1,3 | 5000 | 61,65 |
* Iné rozmery a presné vyhotovenia s menšími toleranciami na požiadanie.

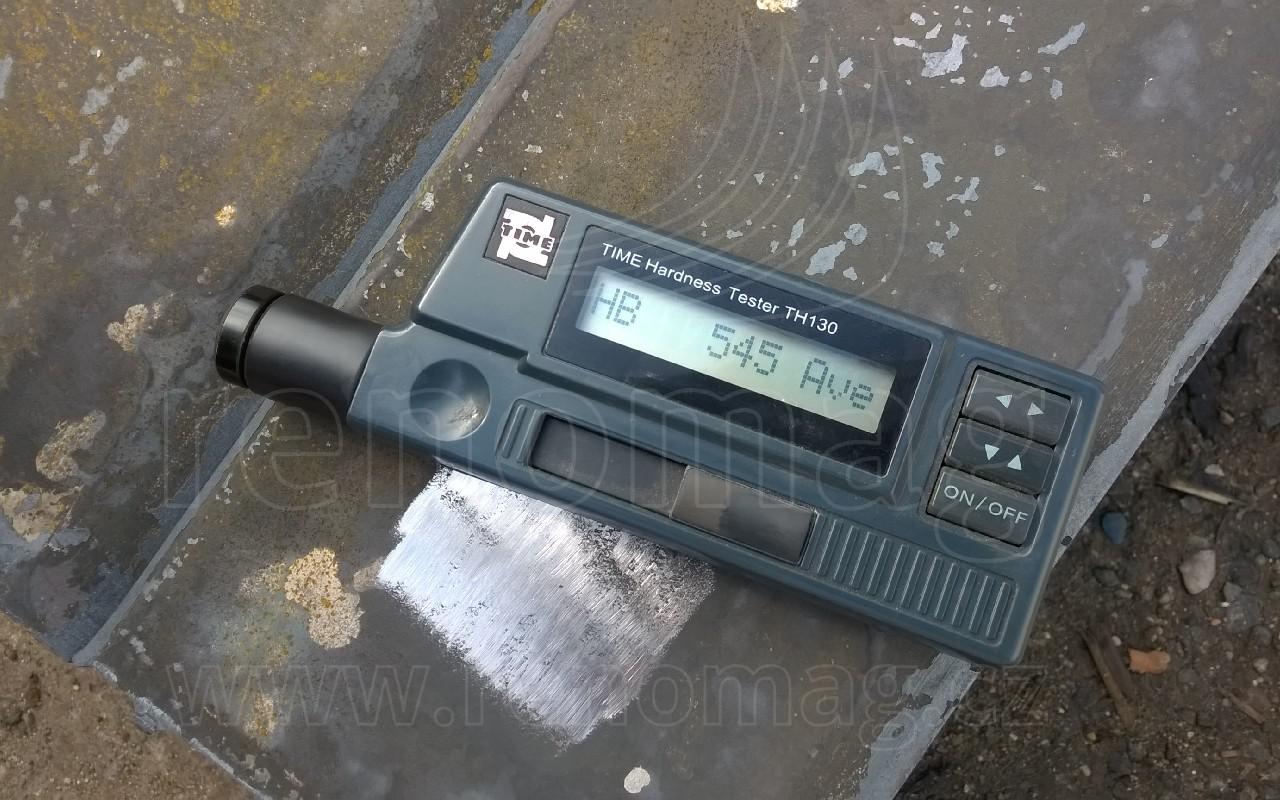

Tvrdosť (HBW) 370-430 HB; tvrdosť 500 HB na požiadanie; povrchovo valcovaný; typická pevnosť v ťahu (MPa) 1000; minimálna vrubová húževnatosť (J) 30; dobrá zvariteľnosť.
