Rolled cutting edges blades

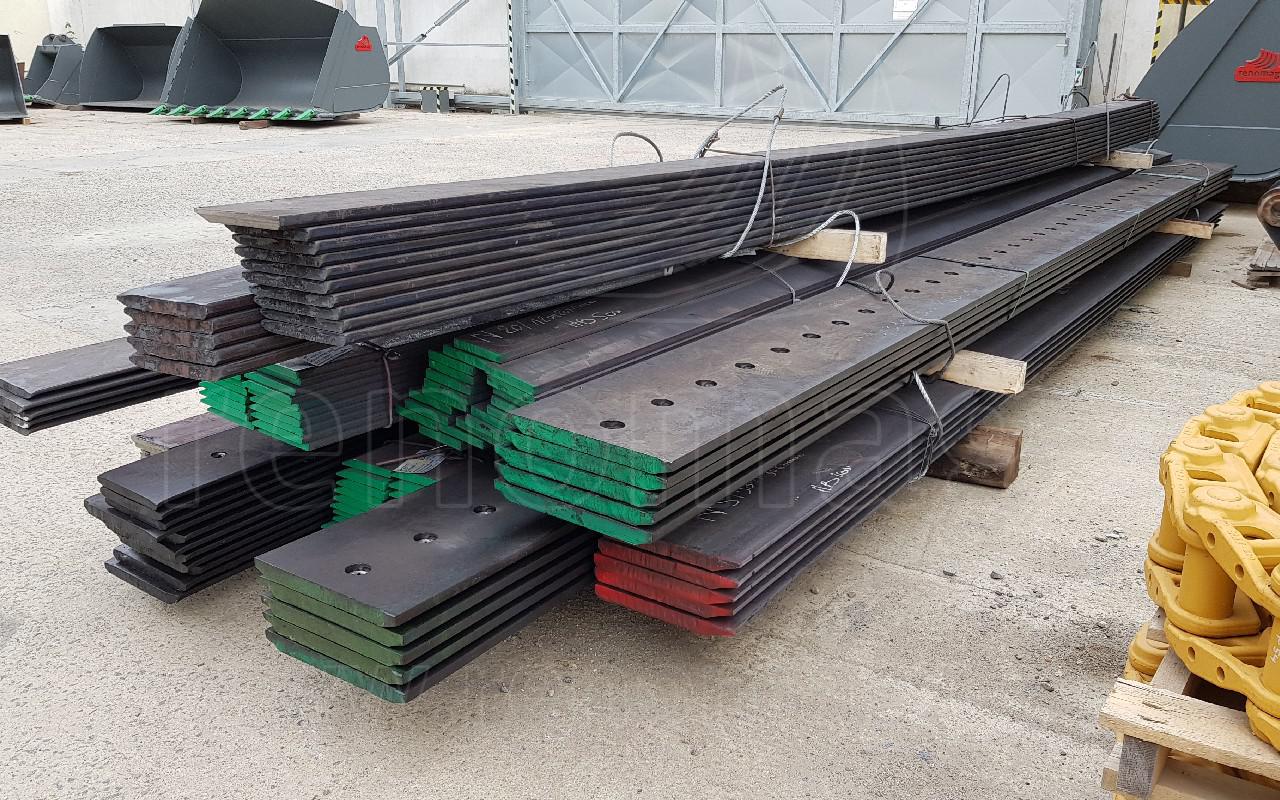

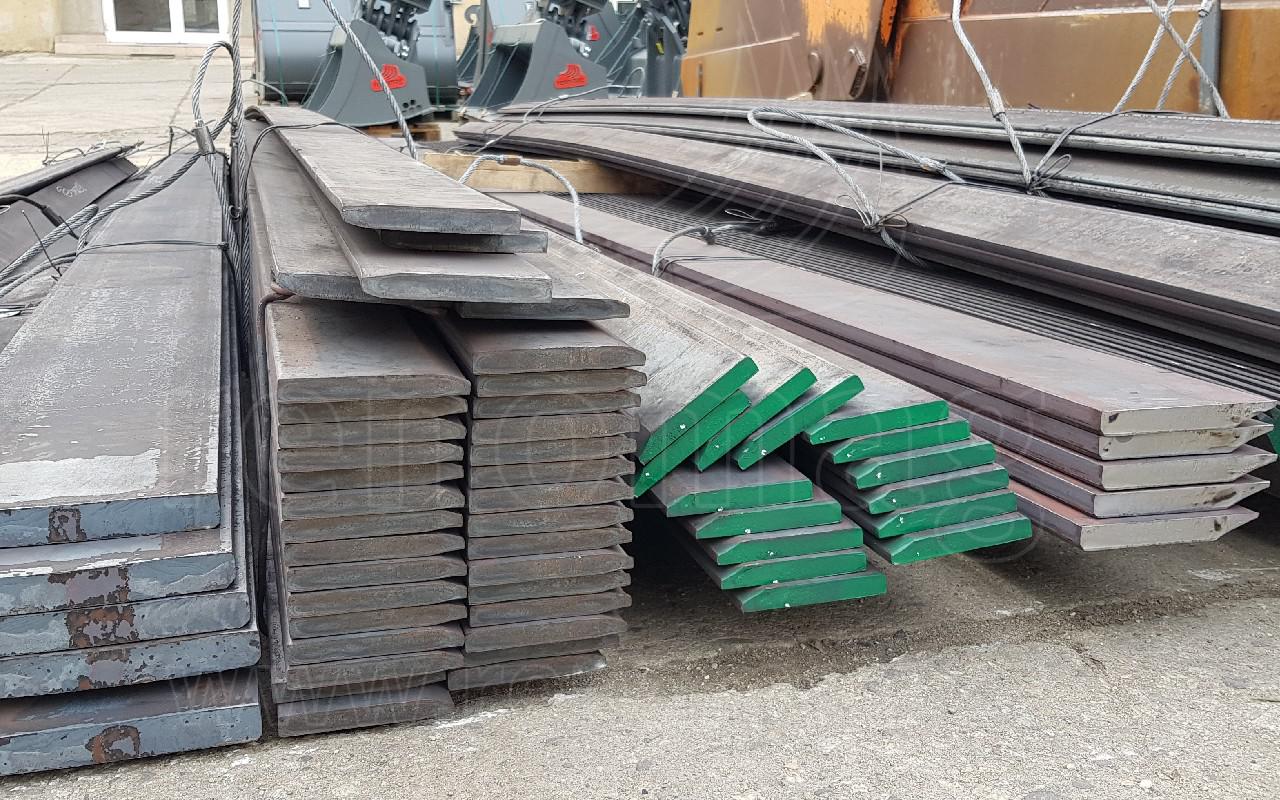

For repairs and manufacturing of shovels and buckets we offer the rolled induction hardened profile, slit to length to meet the customer’s specification, with bevel in hardness of 230 HB, 400 HB, 500 HB and in various thicknesses. Advantages of this abrasion resistant material include its longevity (the rolled tough blade is not affected by burning), great welding conditions and, for a selected range of products, the possibility of instant supply. The application possibility is very wide, ranging from construction machinery such as mini excavators, backhoe loaders, excavators, skid steer and wheel loaders, bulldozers, through road maintenance for snow plows to agricultural and forestry machinery.

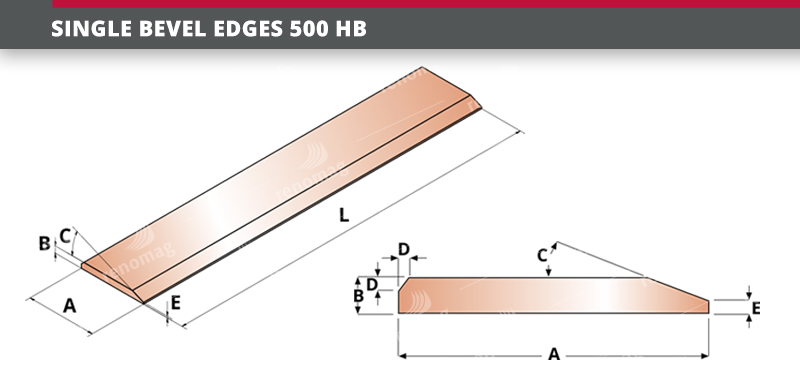

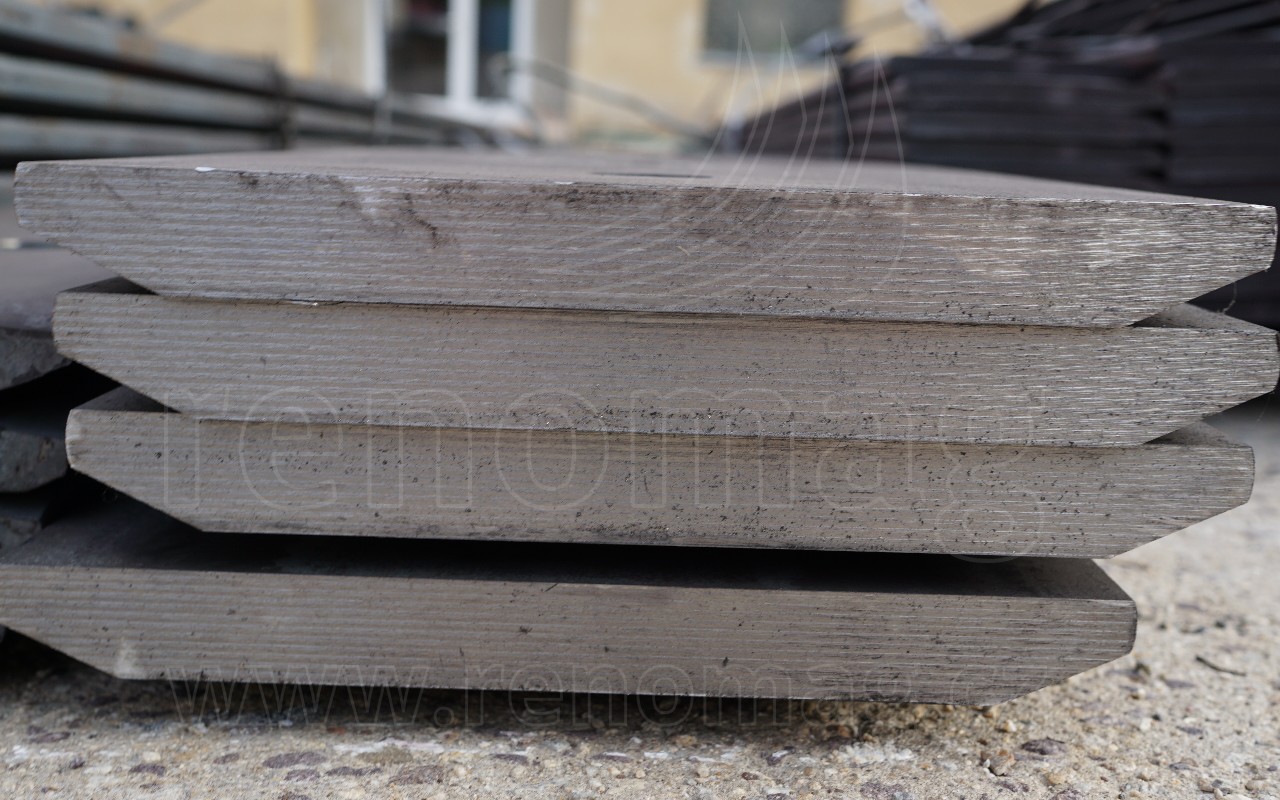

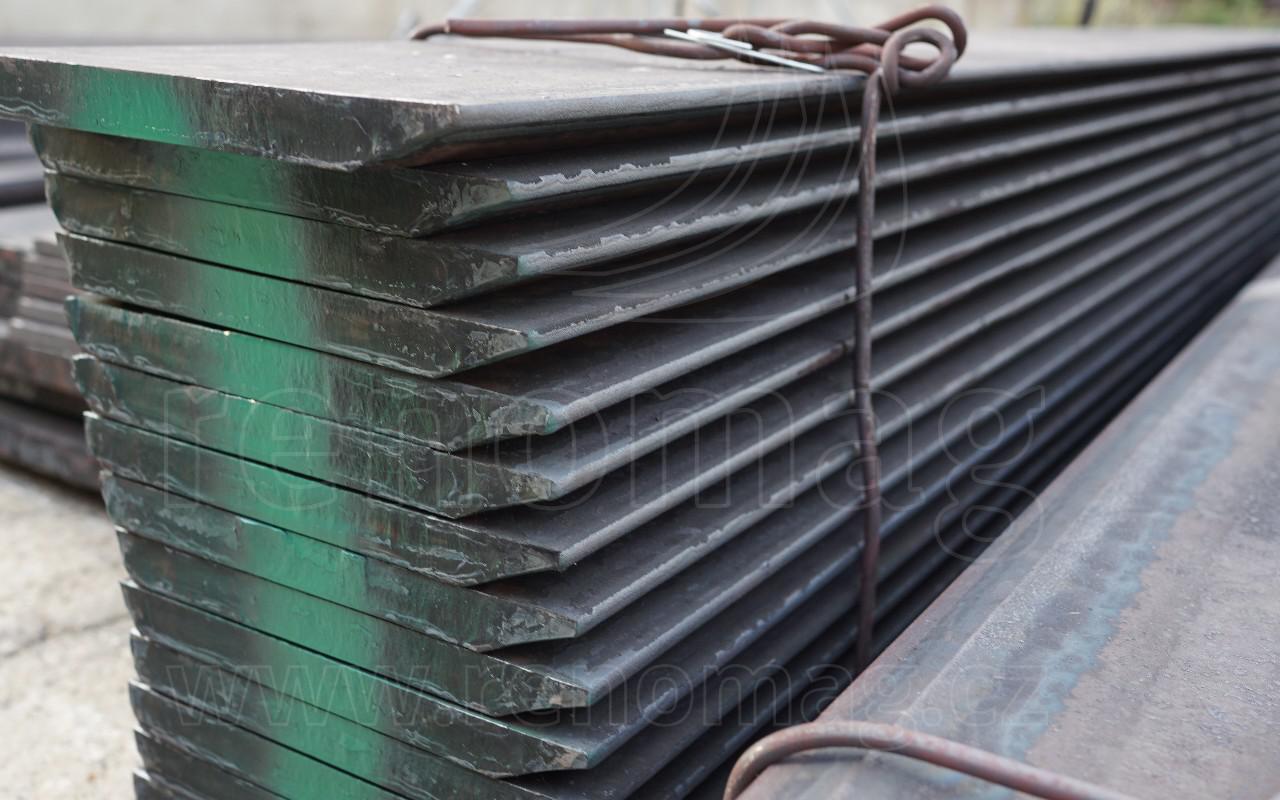

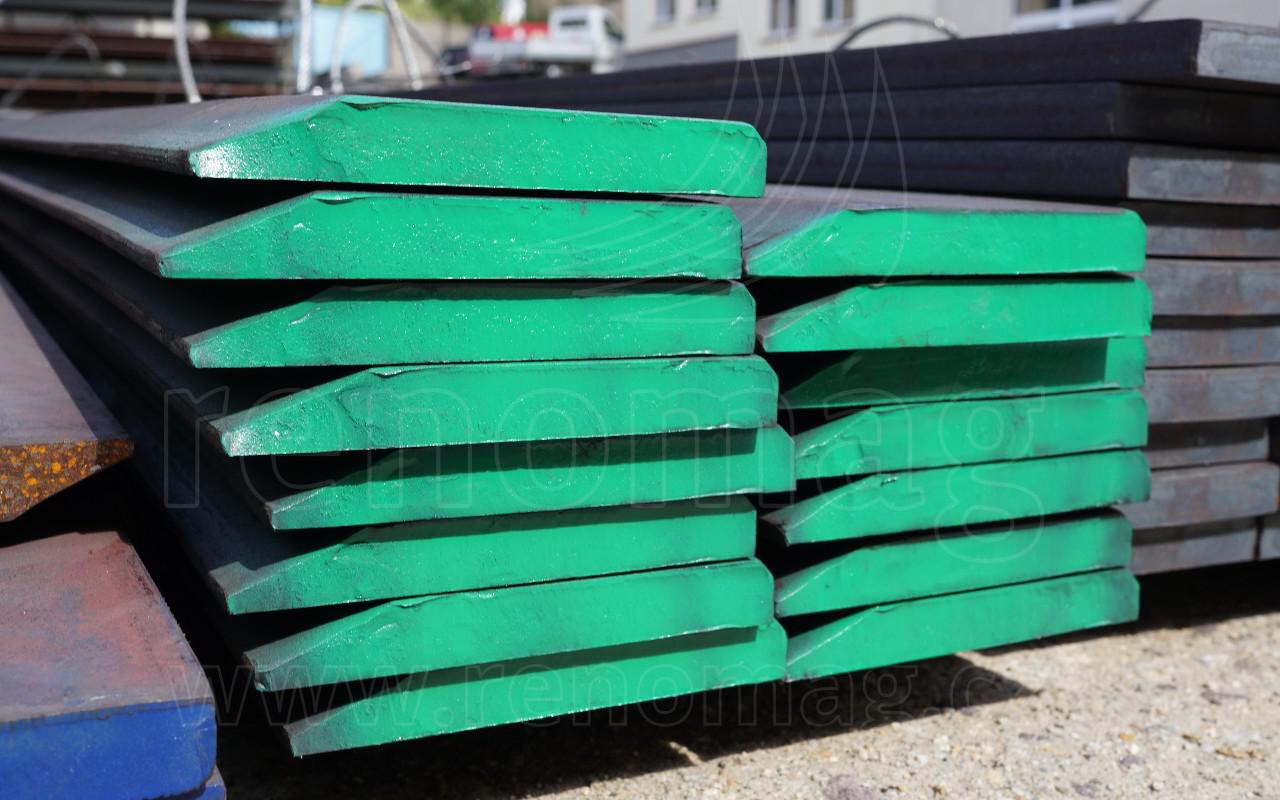

| SINGLE BEVEL EDGES 500 HB | ||||||||
|---|---|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
|||||
| A | B | C | D | E | ||||
| PM08012BJ500 | 80 | 12 | 20.2 ° | 5 | 6300 | 7.1 | ||
| PM11012BJ500 | 110 | 12 | 23.9 ° | R3 | 3 | 6000 | 9.7 | |
| PM11016BJ500 | 110 | 16 | 23.9 ° | R3 | 7 | 6000 | 13.1 | |
| PM15016BJ500 | 150 | 16 | 24 ° | 5 | 7 | 6000 | 18 | |
| PM15020BJ500 | 150 | 20 | 22.6 ° | 5 | 5 | 6000 | 21.5 | |
| PM20020BJ500 | 200 | 20 | 23 ° | 8 | 6 | 6000 | 29.5 | |
| PM20025BJ500 | 200 | 25 | 23 ° | 8 | 11 | 6000 | 37.4 | |
| PM24525BJ500 | 245 | 25 | 22.6 ° | 10 | 8 | 6000 | 44.9 | |
| PM25025BJ500 | 250 | 25 | 22.6 ° | 10 | 6 | 6000 | 45.6 | |
| PM25030BJ500 | 250 | 30 | 22.6 ° | 10 | 11 | 6000 | 55.3 | |
| PM27032BJ500 | 270 | 32 | 23 ° | 10 | 10 | 6000 | 63.1 | |
| PM27035BJ500 | 270 | 35 | 23 ° | 10 | 13 | 6000 | 69.1 | |
| PM30030BJ500 | 300 | 30 | 23 ° | 10 | 8 | 6100 | 66.1 | |
| PM30035BJ500 | 300 | 35 | 23 ° | 10 | 13 | 6100 | 77.7 | |
| PM30040BJ500 | 300 | 40 | 23 ° | 10 | 18 | 6100 | 89.4 | |
| PM30050BJ500 | 300 | 50 | 23 ° | 10 | 28 | 6100 | 112.9 | |
| PM40040BJ500 | 400 | 40 | 24 ° | 12 | 15 | 6100 | 119.5 | |
| PM40045BJ500 | 400 | 45 | 24 ° | 12 | 20 | 6100 | 135.2 | |
| PM40050BJ500 | 400 | 50 | 24 ° | 12 | 25 | 6100 | 150.9 | |
| SINGLE BEVEL EDGES 400 HB | ||||||||
|---|---|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
|||||
| A | B | C | D | E | ||||
| PM08012BJ400 | 80 | 12 | 20.2 ° | 5 | 6300 | 7.1 | ||
| PM11012BJ400 | 110 | 12 | 23.9 ° | R3 | 3 | 6000 | 9.7 | |
| PM11016BJ400 | 110 | 16 | 23.9 ° | R3 | 7 | 6000 | 13.1 | |
| PM15016BJ400 | 150 | 16 | 24 ° | 5 | 7 | 6000 | 18 | |
| PM15020BJ400 | 150 | 20 | 22.6 ° | 5 | 5 | 6000 | 21.5 | |
| PM20020BJ400 | 200 | 20 | 23 ° | 8 | 6 | 6000 | 29.5 | |
| PM20025BJ400 | 200 | 25 | 23 ° | 8 | 11 | 6000 | 37.4 | |
| PM24525BJ400 | 245 | 25 | 22.6 ° | 10 | 8 | 6000 | 44.9 | |
| PM25025BJ400 | 250 | 25 | 22.6 ° | 10 | 6 | 6000 | 45.6 | |
| PM25030BJ400 | 250 | 30 | 22.6 ° | 10 | 11 | 6000 | 55.3 | |
| PM27032BJ400 | 270 | 32 | 23 ° | 10 | 10 | 6000 | 63.1 | |
| PM27035BJ400 | 270 | 35 | 23 ° | 10 | 13 | 6000 | 69.1 | |
| PM30030BJ400 | 300 | 30 | 23 ° | 10 | 8 | 6100 | 66.1 | |
| PM30035BJ400 | 300 | 35 | 23 ° | 10 | 13 | 6100 | 77.7 | |
| PM30040BJ400 | 300 | 40 | 23 ° | 10 | 18 | 6100 | 89.4 | |
| PM30050BJ400 | 300 | 50 | 23 ° | 10 | 28 | 6100 | 112.9 | |
| PM40040BJ400 | 400 | 40 | 24 ° | 12 | 15 | 6100 | 119.5 | |
| PM40045BJ400 | 400 | 45 | 24 ° | 12 | 20 | 6100 | 135.2 | |
| PM40050BJ400 | 400 | 50 | 24 ° | 12 | 25 | 6100 | 150.9 | |
| SINGLE BEVEL EDGES 250 HB | ||||||||
|---|---|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
|||||
| A | B | C | D | E | ||||
| PM08012BJ250 | 80 | 12 | 20.2 ° | 5 | 6300 | 7.1 | ||
| PM11012BJ250 | 110 | 12 | 23.9 ° | R3 | 3 | 6000 | 9.7 | |
| PM11016BJ250 | 110 | 16 | 23.9 ° | R3 | 7 | 6000 | 13.1 | |
| PM15016BJ250 | 150 | 16 | 24 ° | 5 | 7 | 6000 | 18 | |
| PM15020BJ250 | 150 | 20 | 22.6 ° | 5 | 5 | 6000 | 21.5 | |
| PM20020BJ250 | 200 | 20 | 23 ° | 8 | 6 | 6000 | 29.5 | |
| PM20025BJ250 | 200 | 25 | 23 ° | 8 | 11 | 6000 | 37.4 | |
| PM24525BJ250 | 245 | 25 | 22.6 ° | 10 | 8 | 6000 | 44.9 | |
| PM25025BJ250 | 250 | 25 | 22.6 ° | 10 | 6 | 6000 | 45.6 | |
| PM25030BJ250 | 250 | 30 | 22.6 ° | 10 | 11 | 6000 | 55.3 | |
| PM27032BJ250 | 270 | 32 | 23 ° | 10 | 10 | 6000 | 63.1 | |
| PM27035BJ250 | 270 | 35 | 23 ° | 10 | 13 | 6000 | 69.1 | |
| PM30030BJ250 | 300 | 30 | 23 ° | 10 | 8 | 6100 | 66.1 | |
| PM30035BJ250 | 300 | 35 | 23 ° | 10 | 13 | 6100 | 77.7 | |
| PM30040BJ250 | 300 | 40 | 23 ° | 10 | 18 | 6100 | 89.4 | |
| PM30050BJ250 | 300 | 50 | 23 ° | 10 | 28 | 6100 | 112.9 | |
| PM40040BJ250 | 400 | 40 | 24 ° | 12 | 15 | 6100 | 119.5 | |
| PM40045BJ250 | 400 | 45 | 24 ° | 12 | 20 | 6100 | 135.2 | |
| PM40050BJ250 | 400 | 50 | 24 ° | 12 | 25 | 6100 | 150.9 | |

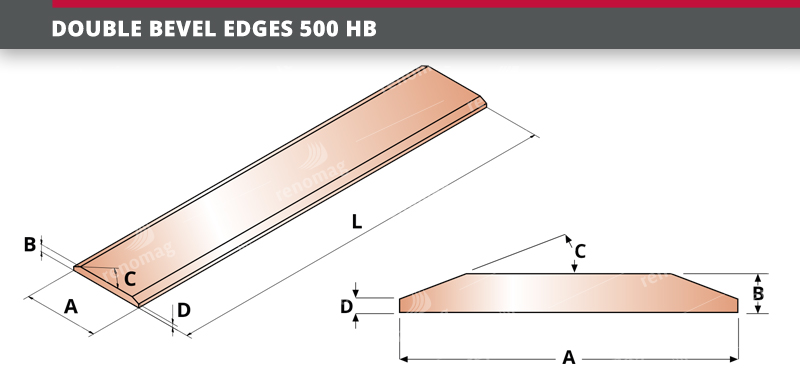

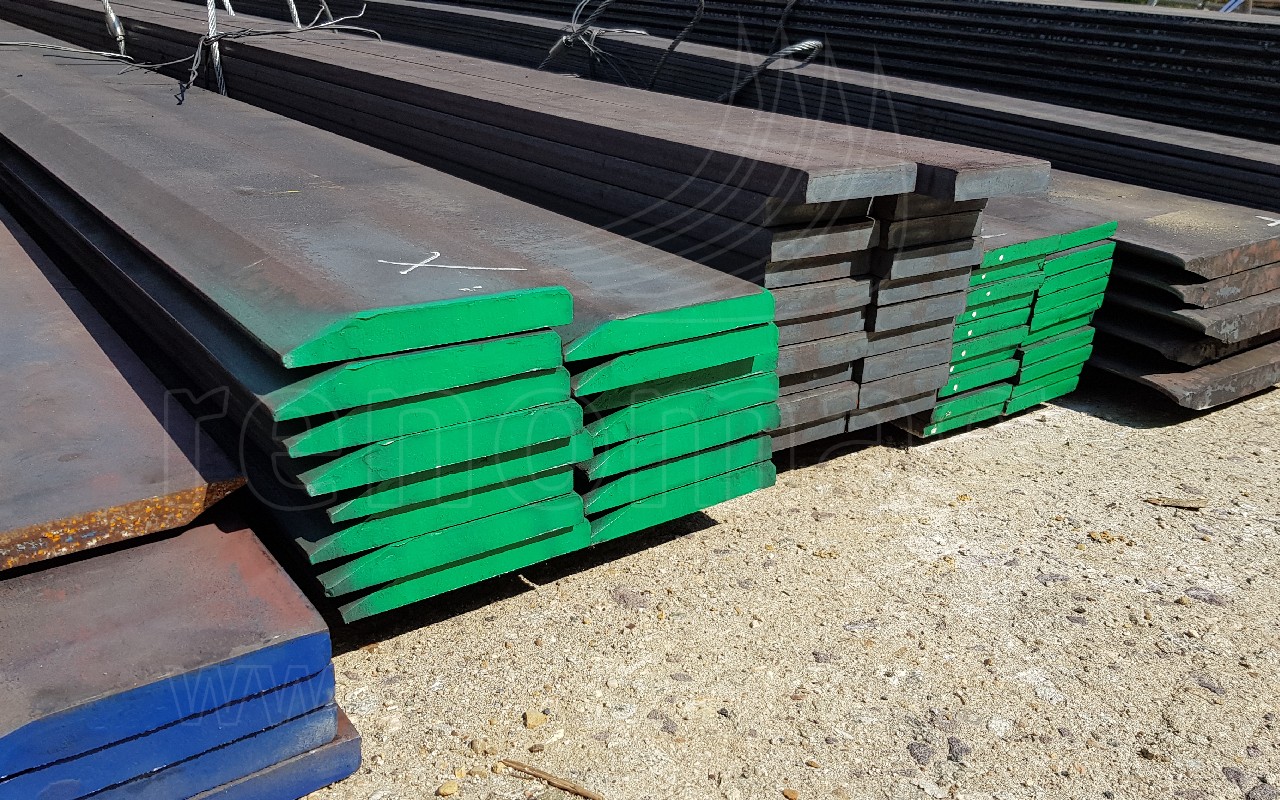

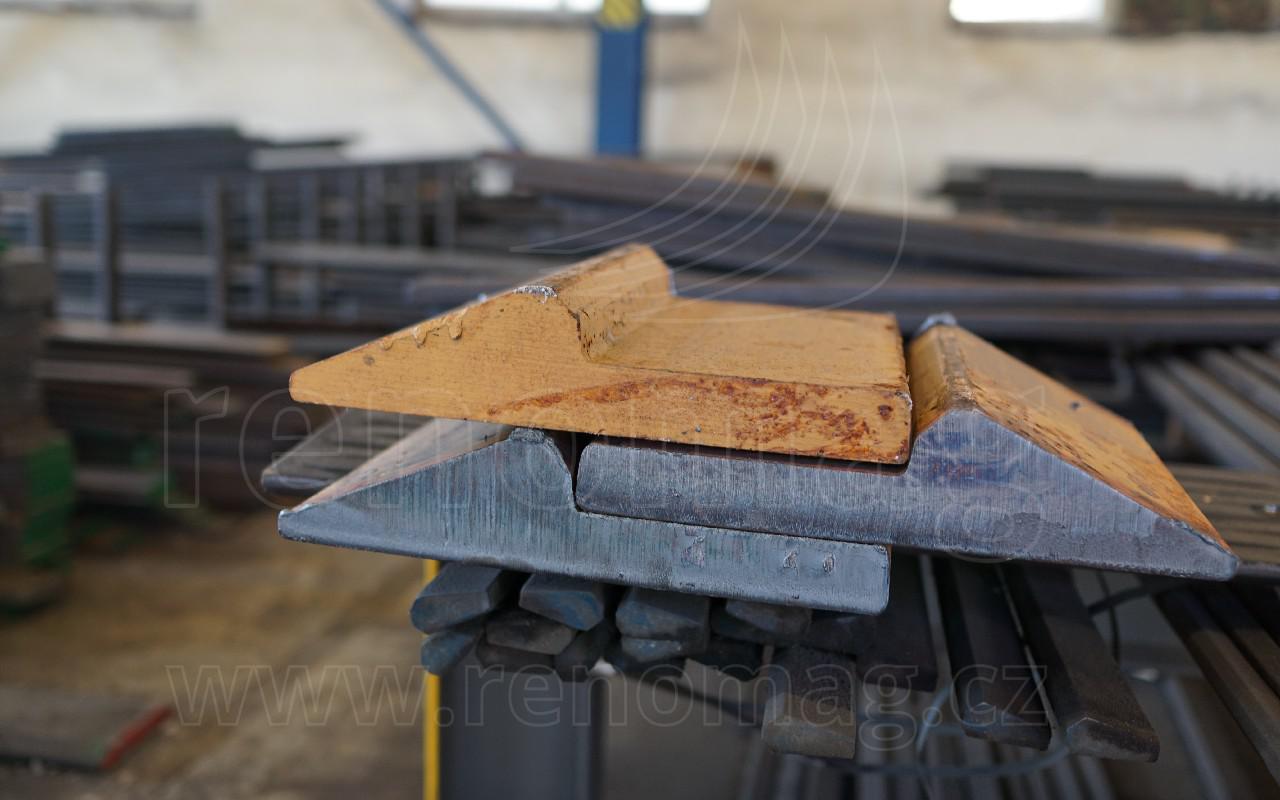

| DOUBLE BEVEL EDGES 500 HB | |||||||
|---|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
||||
| A | B | C | D | ||||
| PM12015BD500 | 120 | 15 | 25 ° | 5 | 6500 | 12.2 | |
| PM15216BD500 | 152.4 | 15.9 | 25 ° | 5 | 6500 | 17.4 | |
| PM15219BD500 | 152.4 | 19.1 | 25 ° | 8.1 | 6500 | 21.0 | |
| PM20316BD500 | 203.2 | 15.9 | 25 ° | 5 | 6500 | 23.7 | |
| PM20319BD500 | 203.2 | 19.1 | 25 ° | 8.1 | 6500 | 28.5 | |
| PM20325BD500 | 203.2 | 25.4 | 25 ° | 14.4 | 6500 | 38.5 | |
| PM25419BD500 | 254 | 19.1 | 25 ° | 7.1 | 6500 | 36.0 | |
| PM25425BD500 | 254 | 25.4 | 25 ° | 13.4 | 6500 | 48.5 | |
| PM25430BD500 | 254 | 30 | 25 ° | 18 | 6500 | 57.7 | |
| PM25432BD500 | 254 | 32 | 25 ° | 20 | 6500 | 61.4 | |
| PM25435BD500 | 254 | 35 | 25 ° | 23 | 6500 | 67.4 | |
| PM25441BD500 | 254 | 41 | 25 ° | 29 | 6500 | 79.3 | |
| PM28025BD500 | 280 | 25 | 22.5 ° | 7 | 6500 | 48.9 | |
| PM30525BD500 | 304.8 | 25.4 | 22.5 ° | 9.5 | 6500 | 56.0 | |
| PM30529BD500 | 304.8 | 28.5 | 22.5 ° | 12.6 | 6500 | 63.6 | |
| PM30532BD500 | 304.8 | 32 | 22.5 ° | 16.1 | 6500 | 71.8 | |
| PM33025BD500 | 330 | 25 | 22.5 ° | 11 | 6500 | 61.0 | |
| PM33029BD500 | 330 | 28.5 | 22.5 ° | 14.5 | 6500 | 70.1 | |
| PM33030BD500 | 330 | 30 | 22.5 ° | 16 | 6500 | 74.0 | |
| PM33032BD500 | 330 | 32 | 22.5 ° | 18 | 6500 | 79.2 | |
| PM33035BD500 | 330 | 35 | 22.5 ° | 21 | 6500 | 87.0 | |
| PM33038BD500 | 330 | 38 | 22.5 ° | 24 | 6500 | 94.7 | |
| PM33041BD500 | 330 | 41 | 22.5 ° | 27 | 6500 | 102.5 | |
| PM33050BD500 | 330 | 50 | 22.5 ° | 36 | 6500 | 126.1 | |
| PM36030BD500 | 360 | 30 | 22.5 ° | 8 | 6500 | 75.6 | |
| PM36035BD500 | 360 | 35 | 22.5 ° | 13 | 6500 | 89.9 | |
| PM36040BD500 | 360 | 40 | 22.5 ° | 18 | 6500 | 103.9 | |
| PM40625BD500 | 406 | 25 | 22.5 ° | 9 | 6500 | 74.8 | |
| PM40629BD500 | 406 | 28.5 | 22.5 ° | 12.5 | 6500 | 86.0 | |
| PM40632BD500 | 406 | 32 | 22.5 ° | 16 | 6500 | 97.1 | |
| PM40635BD500 | 406 | 35 | 22.5 ° | 19 | 6500 | 106.7 | |
| PM40638BD500 | 406 | 38 | 22.5 ° | 22 | 6500 | 116.0 | |
| PM40641BD500 | 406 | 41 | 22.5 ° | 25 | 6500 | 125.8 | |
| PM40645BD500 | 406 | 45 | 22.5 ° | 29 | 6500 | 138.6 | |
| PM40650BD500 | 406 | 50 | 22.5 ° | 34 | 6500 | 154.5 | |
| PM40660BD500 | 406 | 60 | 22.5 ° | 44 | 6500 | 186.2 | |
* 250 HB and 400 HB on request

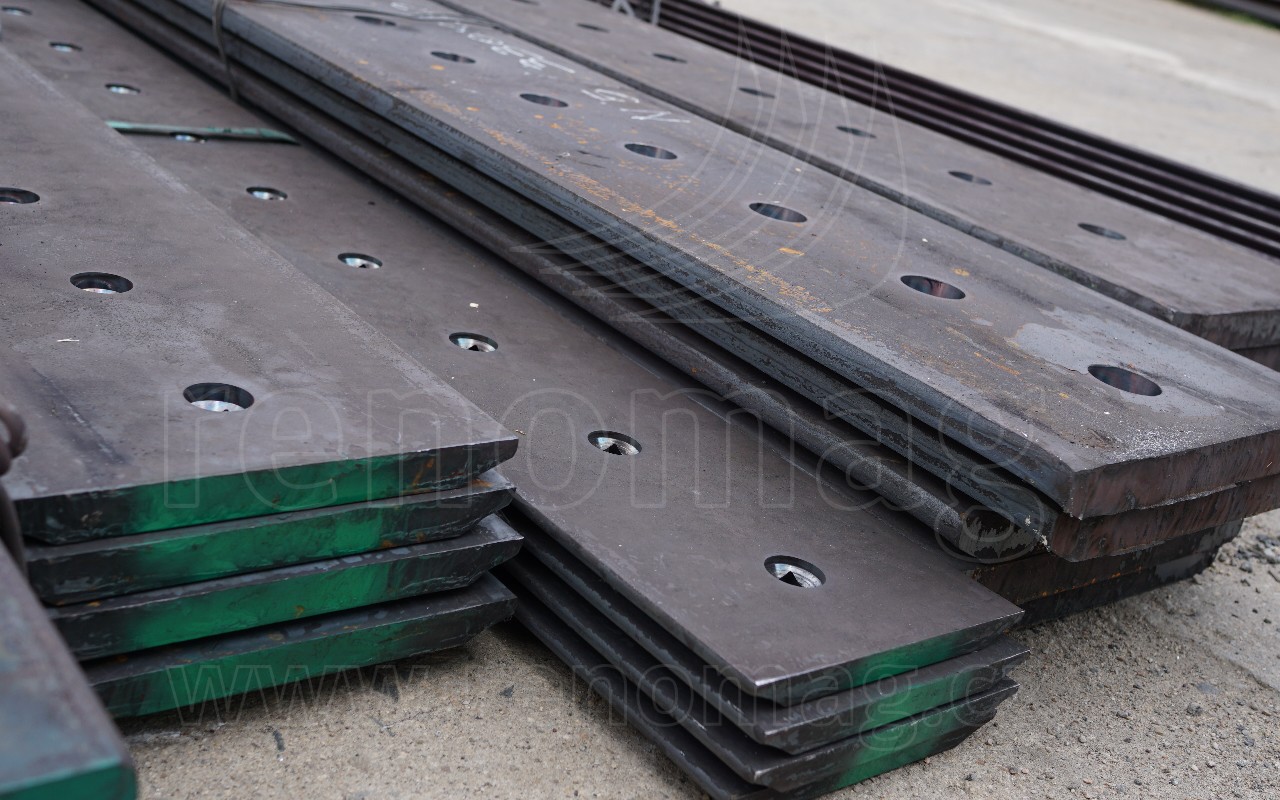

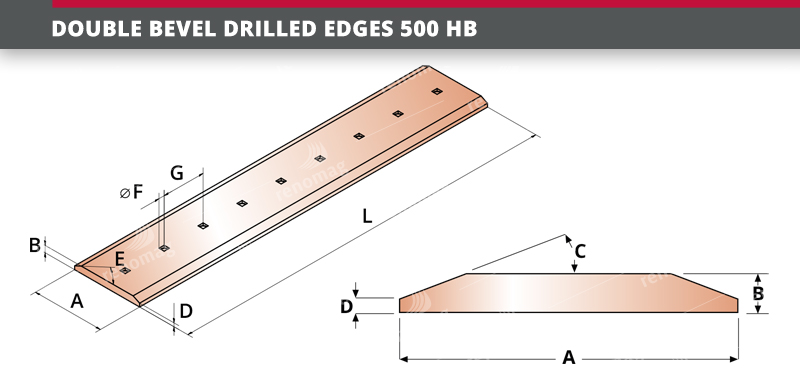

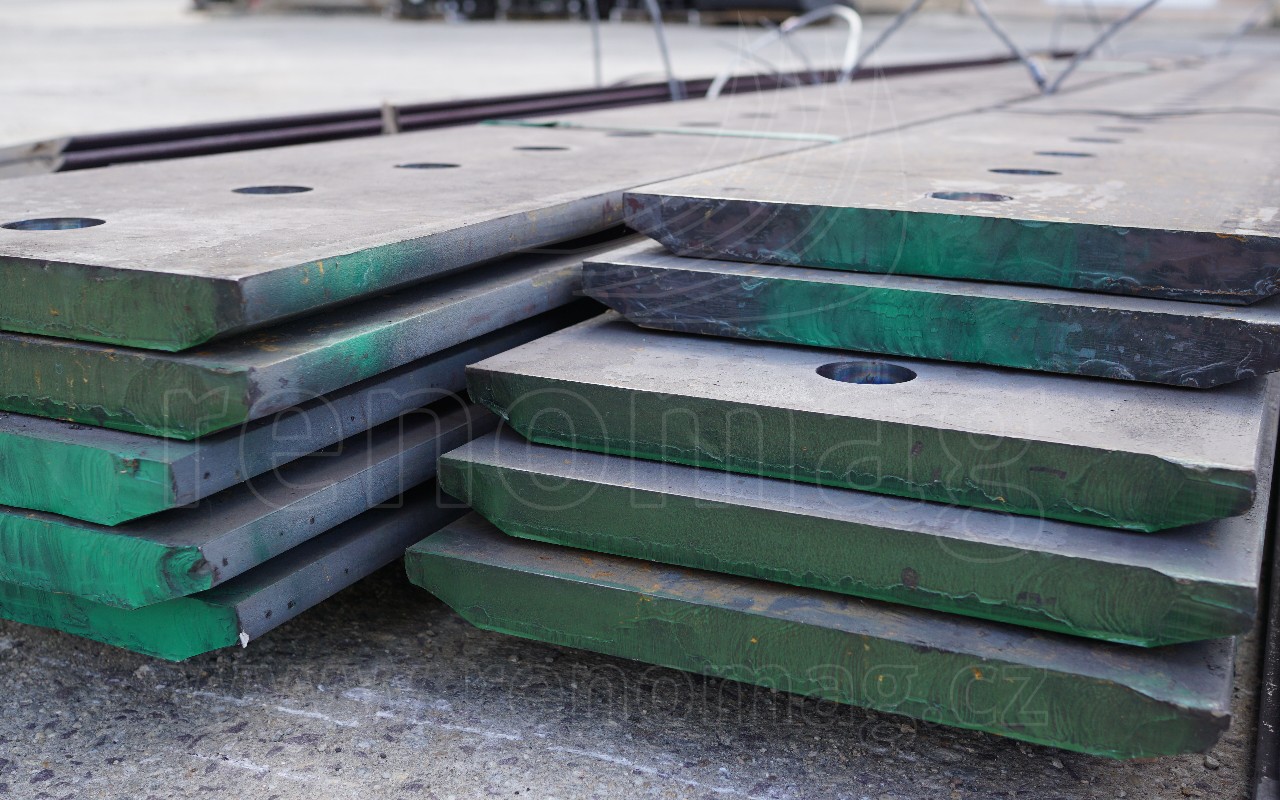

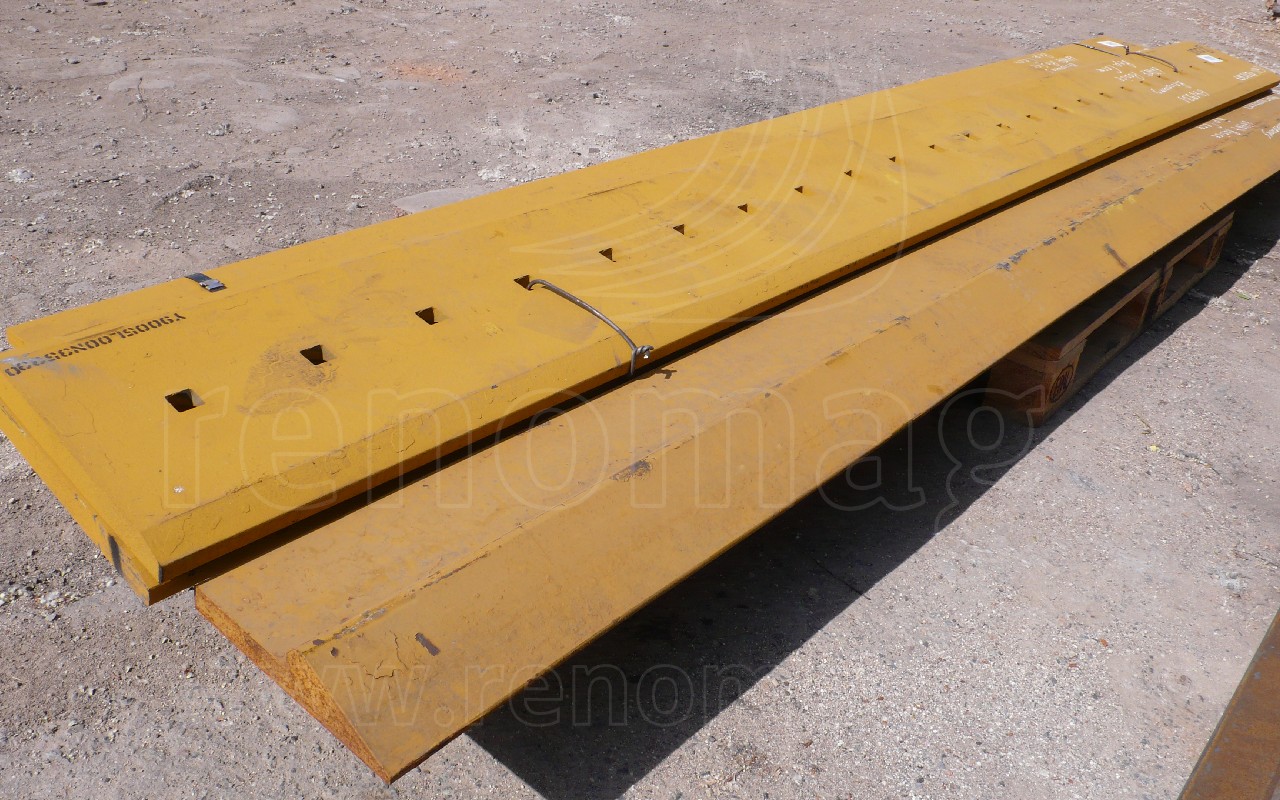

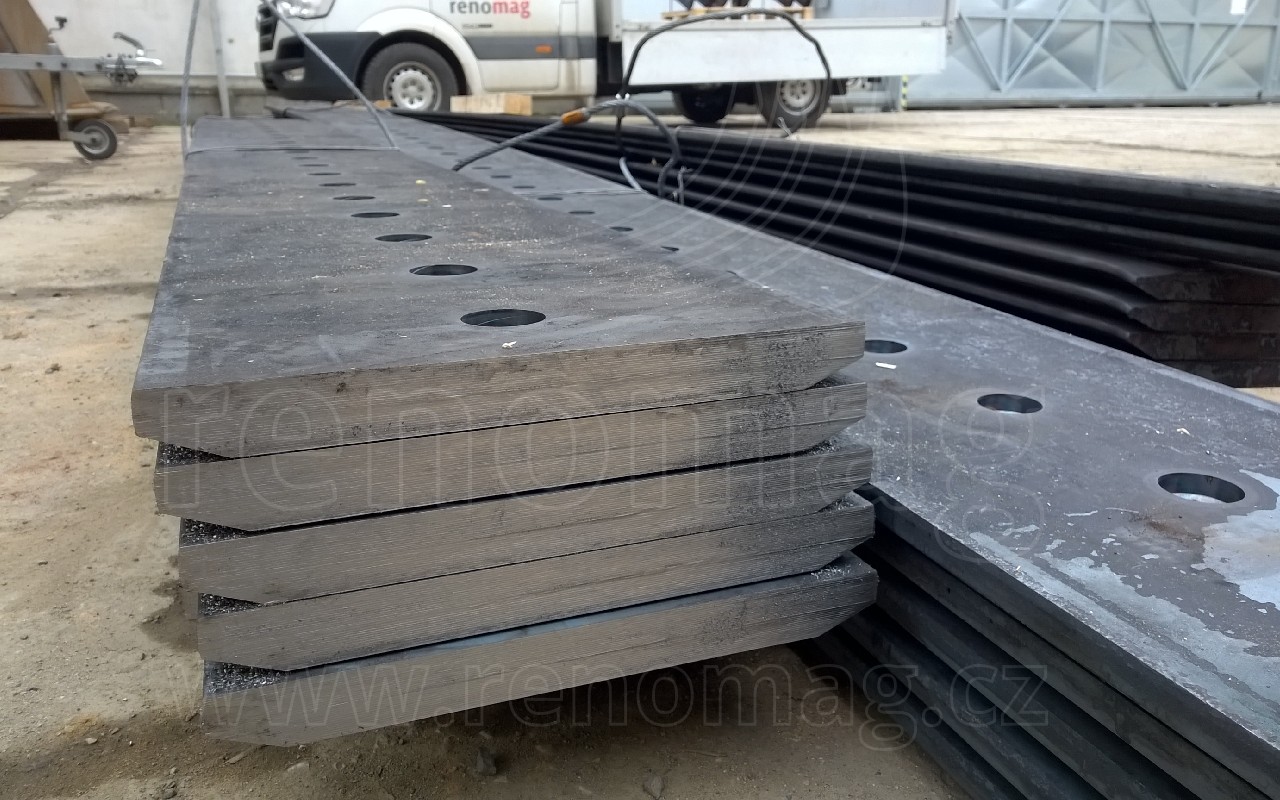

| DOUBLE BEVEL DRILLED EDGES 500 HB |
||||||||
|---|---|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
|||||
| A | B | D | E | F | G | |||
| PM15216BD500V658 | 152 | 6" | 16 | 5/8" | 5 | 25 ° | 16 | 5/8" | 152.4 | 6" | 6500 | 17.4 |
| PM15219BD500V658 | 152 | 6" | 19 | 3/4" | 8 | 25 ° | 16 | 5/8" | 152.4 | 6" | 6500 | 20.1 |
| PM20319BD500V458 | 203 | 8" | 19 | 3/4" | 8 | 25 ° | 16 | 5/8" | 101.6 | 4" | 5000 | 28.5 |
| PM20319BD500V658 | 203 | 8" | 19 | 3/4" | 8 | 25 ° | 16 | 5/8" | 152.4 | 6" | 6500 | 28.5 |
| PM20319BD500V634 | 203 | 8" | 19 | 3/4" | 8 | 25 ° | 20 | 3/4" | 152.4 | 6" | 6500 | 28.4 |
| PM20325BD500V634 | 203 | 8" | 25 | 1" | 14 | 25 ° | 20 | 3/4" | 152.4 | 6" | 6500 | 38.5 |
| PM25425BD500V634 | 254 | 10" | 25 | 1" | 12 | 25 ° | 20 | 3/4" | 152.4 | 6" | 6500 | 48.6 |
| PM25425BD500V678 | 254 | 10" | 25 | 1" | 12 | 25 ° | 22 | 7/8" | 152.4 | 6" | 6500 | 48.5 |
| PM25425BD500V61 | 254 | 10" | 25 | 1" | 12 | 25 ° | 25 | 1" | 152.4 | 6" | 6500 | 48.4 |
| PM25438BD500V61 | 254 | 10" | 38 | 1 1/2" | 25 | 25 ° | 25 | 1" | 152.4 | 6" | 6500 | 73 |
| PM33029BD500V61 | 330 | 13" | 28.5 | 1 1/8" | 15 | 22.3 ° | 25 | 1" | 152.4 | 6" | 6500 | 70.2 |
| PM33029BD500V6114 | 330 | 13" | 28.5 | 1 1/8" | 15 | 22.3 ° | 32 | 1 1/4" | 152.4 | 6" | 6500 | 70.1 |
| PM33032BD500V61 | 330 | 13" | 32 | 1 1/4" | 21.5 | 22.3 ° | 25 | 1" | 152.4 | 6" | 6500 | 79.5 |
| PM33035BD500V678 | 330 | 13" | 35 | 1 1/2" | 21.5 | 22.3 ° | 22 | 7/8" | 152.4 | 6" | 6500 | 86.9 |
| PM33035BD500V61 | 330 | 13" | 35 | 1 1/2" | 21.5 | 22.3 ° | 25 | 1" | 152.4 | 6" | 6500 | 86.8 |
| PM33041BD500V61 | 330 | 13" | 41 | 1 5/8" | 27.5 | 22.3 ° | 25 | 1" | 152.4 | 6" | 6500 | 102.5 |
| PM40641BD500V61 | 406 | 16" | 41 | 1 5/8" | 24.5 | 22.3 ° | 25 | 1" | 152.4 | 6" | 6500 | 125.8 |
| PM40641BD500V6114 | 406 | 16" | 41 | 1 5/8" | 24.5 | 22.3 ° | 32 | 1 1/4" | 152.4 | 6" | 6500 | 125.6 |
| PM40650BD500V61 | 406 | 16" | 50 | 2" | 27.5 | 22.3 ° | 25 | 1" | 152.4 | 6" | 6500 | 154.5 |
* 250 HB and 400 HB on request

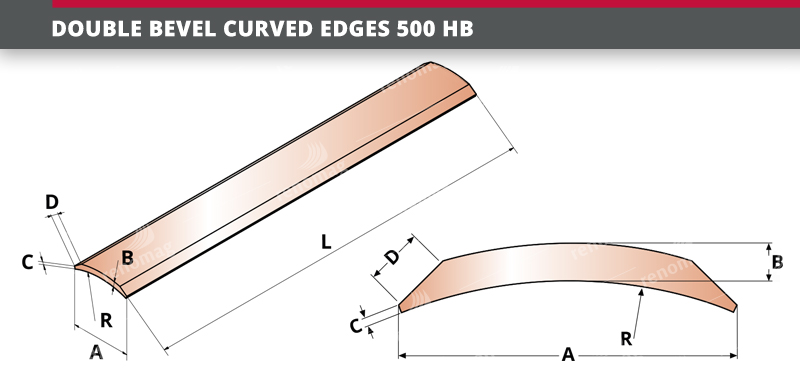

| DOUBLE BEVEL CURVED EDGES 500 HB |
|||||||
|---|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
||||
| A | B | C | D | R | |||
| PM15213DP500 | 152.4 | 12.7 | 2.5 | 33.3 | 273 | 6500 | 13.3 |
| PM15216DP500 | 152.4 | 15.9 | 5.5 | 33.3 | 273 | 6500 | 17.2 |
| PM15219DP500 | 152.4 | 19.1 | 8.6 | 33.3 | 273 | 6500 | 20.4 |
| PM20316DP500 | 203.2 | 15.9 | 5.5 | 33.3 | 273 | 6500 | 23.3 |
| PM20319DP500 | 203.2 | 19.1 | 8.6 | 33.3 | 273 | 6500 | 28.3 |
| PM20325DP500 | 203.2 | 25.4 | 14.7 | 33.3 | 273 | 6500 | 38.7 |
* 250 HB and 400 HB on request

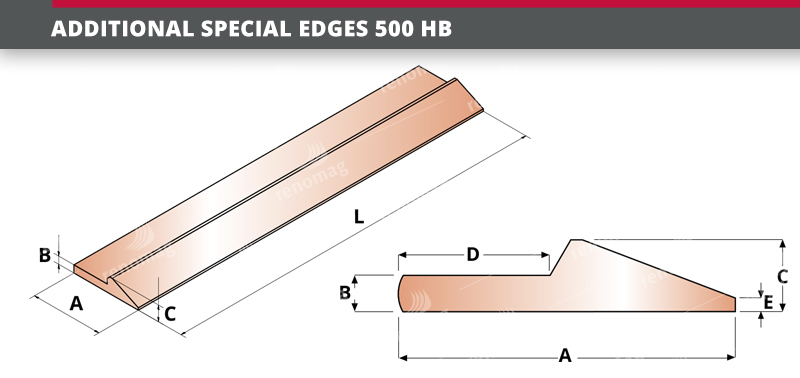

| ADDITIONAL SPECIAL EDGES 500 HB | |||||||
|---|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
||||
| A | B | C | D | E | |||
| PM10111BP500 | 101 | 11 | 21 | 46 | 3 | 6100 | 9.8 |
| PM15116BP500 | 151 | 16 | 32 | 68 | 6 | 6100 | 21.3 |
| PM20319BP500 | 203 | 19 | 32 | 127 | 5 | 6100 | 31.0 |
| PM25429BP500 | 254 | 29 | 58 | 130 | 10 | 7400 | 66.2 |
| PM25440BP500 | 254 | 40 | 69 | 130 | 21 | 7400 | 88.5 |
* 250 HB and 400 HB on request

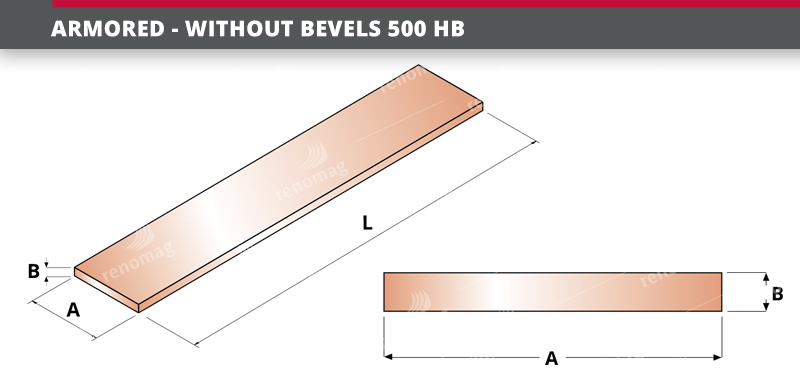

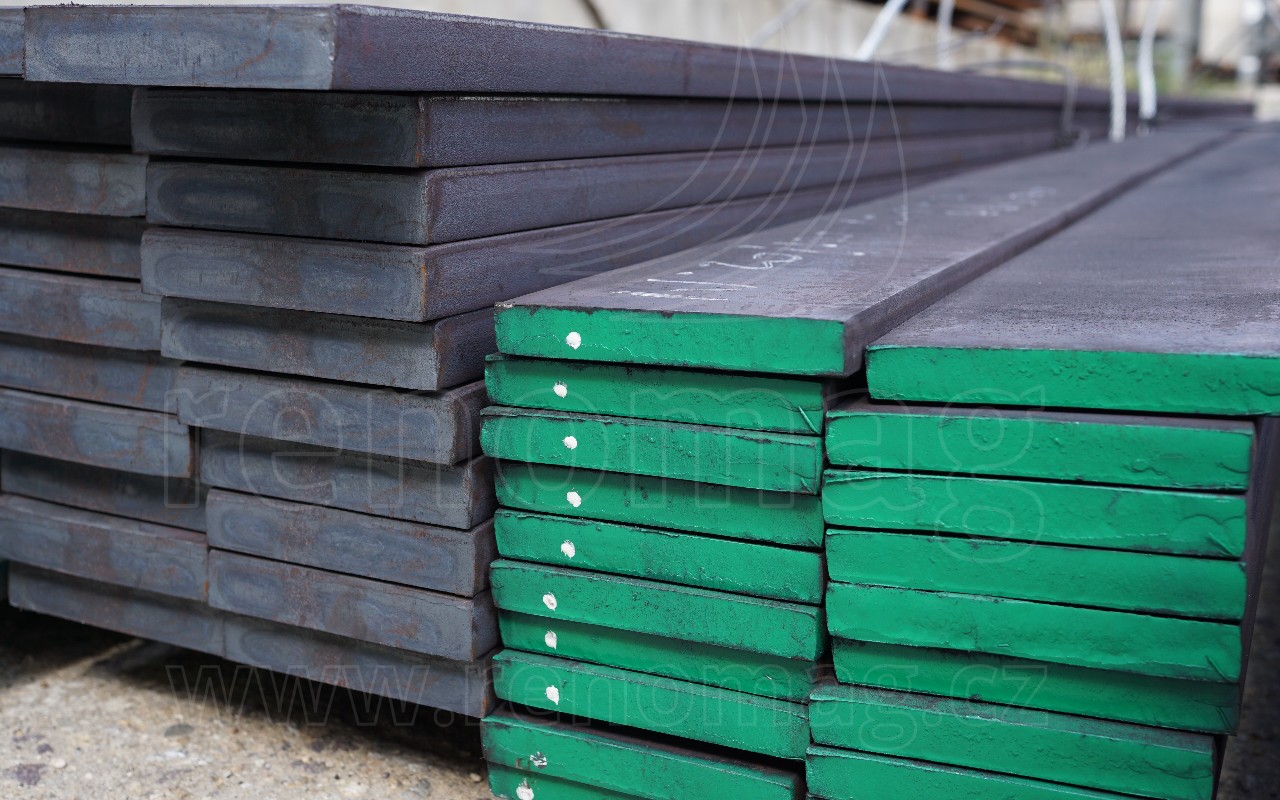

| ARMORED - WITHOUT BEVELS 500 HB |
||||
|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
|
| A | B | |||
| PM06008PP500 | 60 | 8 | 6000 | 3.8 |
| PM06010PP500 | 60 | 10 | 6000 | 4.7 |
| PM08010PP500 | 80 | 10 | 6000 | 6.3 |
| PM08015PP500 | 80 | 15 | 6000 | 9.4 |
| PM10010PP500 | 100 | 10 | 6000 | 7.8 |
| PM10012PP500 | 100 | 12 | 6000 | 9.3 |
| PM10015PP500 | 100 | 15 | 6000 | 11.7 |
| PM10020PP500 | 100 | 20 | 6000 | 16.0 |
| PM12012PP500 | 120 | 12 | 6000 | 11.2 |
| PM12015PP500 | 120 | 15 | 6000 | 14.1 |
| PM12020PP500 | 120 | 20 | 6000 | 18.7 |
| PM13015PP500 | 130 | 15 | 6000 | 15.2 |
| PM15015PP500 | 150 | 15 | 6000 | 17.6 |
| PM15020PP500 | 150 | 20 | 6000 | 23.4 |
| PM16015PP500 | 160 | 15 | 6000 | 18.7 |
| PM18020PP500 | 180 | 20 | 6000 | 28.1 |
| PM20015PP500 | 200 | 15 | 6000 | 23.4 |
| PM20020PP500 | 200 | 20 | 6000 | 31.2 |
* 250 HB and 400 HB on request

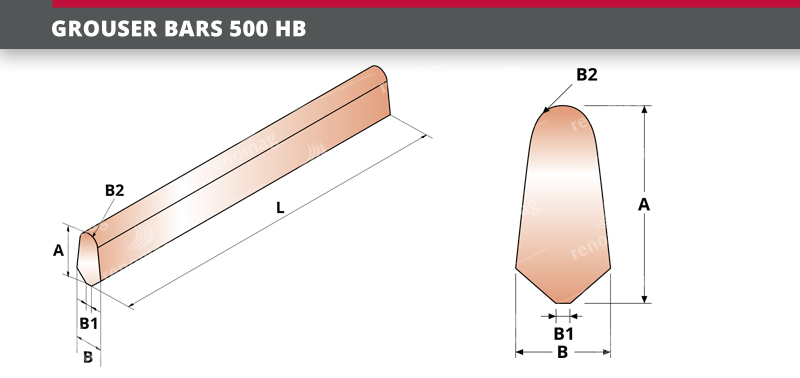

| GROUSER BARS 500 HB | ||||||
|---|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile lenght max. mm (L) |
Weight ca. (kg/m) |
|||
| A | B | B1 | B2 | |||
| PM03016RD500 | 30 | 16 | 4 | 5 | 3000 | 2.8 |
| PM04022RD500 | 40 | 22 | 5 | 7 | 3000 | 5.2 |
| PM05027RD500 | 50 | 27 | 6 | 10 | 3000 | 8.4 |
| PM06530RD500 | 65 | 30 | 10 | 10 | 3000 | 12.0 |
| PM06837RD500 | 68 | 37 | 12 | 14 | 3000 | 15.7 |
** Other dimensions on request

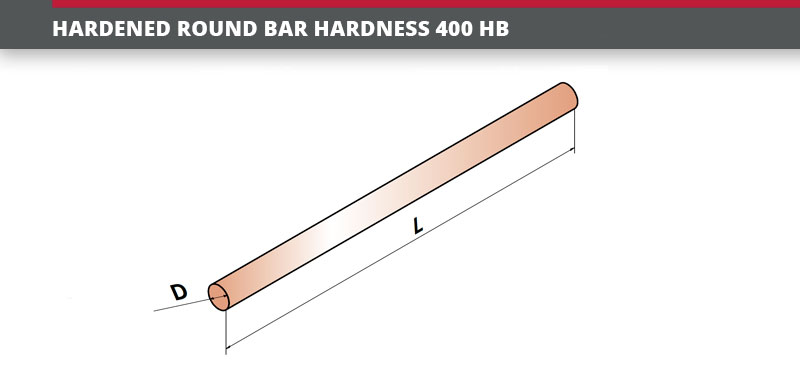

| HARDENED ROUND BAR HARDNESS 400 HB | |||||
|---|---|---|---|---|---|
| Order No. | Size (mm) | Profile length max. in mm (L) |
Weight (kg/m) |
||
| Diameter (D) |
Tolerance | ||||
| PM00020TK400 | 20 | +/- 0.5 | 5000 | 2.47 | |
| PM00022TK400 | 22 | +/- 0.5 | 5000 | 2.98 | |
| PM00024TK400 | 24 | +/- 0.5 | 5000 | 3.55 | |
| PM00025TK400 | 25 | +/- 0.5 | 5000 | 3.85 | |
| PM00026TK400 | 26 | +/- 0.6 | 5000 | 4.17 | |
| PM00027TK400 | 27 | +/- 0.6 | 5000 | 4.49 | |
| PM00028TK400 | 28 | +/- 0.6 | 5000 | 4.83 | |
| PM00030TK400 | 30 | +/- 0.6 | 5000 | 5.55 | |
| PM00032TK400 | 32 | +/- 0.6 | 5000 | 6.31 | |
| PM00035TK400 | 35 | +/- 0.6 | 5000 | 7.55 | |
| PM00036TK400 | 36 | +/- 0.8 | 5000 | 7.99 | |
| PM00038TK400 | 38 | +/- 0.8 | 5000 | 8.9 | |
| PM00040TK400 | 40 | +/- 0.8 | 5000 | 9.86 | |
| PM00042TK400 | 42 | +/- 0.8 | 5000 | 10.88 | |
| PM00045TK400 | 45 | +/- 0.8 | 5000 | 12.48 | |
| PM00048TK400 | 48 | +/- 0.8 | 5000 | 14.2 | |
| PM00050TK400 | 50 | +/- 0.8 | 5000 | 15.41 | |
| PM00052TK400 | 52 | +/- 1.0 | 5000 | 16.67 | |
| PM00055TK400 | 55 | +/- 1.0 | 5000 | 18.65 | |
| PM00060TK400 | 60 | +/- 1.0 | 5000 | 22.19 | |
| PM00063TK400 | 63 | +/- 1.0 | 5000 | 14.47 | |
| PM00065TK400 | 65 | +/- 1.0 | 5000 | 26.05 | |
| PM00070TK400 | 70 | +/- 1.0 | 5000 | 30.21 | |
| PM00073TK400 | 73 | +/- 1.0 | 5000 | 32.85 | |
| PM00075TK400 | 75 | +/- 1.0 | 5000 | 34.68 | |
| PM00080TK400 | 80 | +/- 1.0 | 5000 | 39.46 | |
| PM00085TK400 | 85 | +/- 1.3 | 5000 | 44.54 | |
| PM00090TK400 | 90 | +/- 1.3 | 5000 | 49.94 | |
| PM00095TK400 | 95 | +/- 1.3 | 5000 | 55.64 | |
| PM00100TK400 | 100 | +/- 1.3 | 5000 | 61.65 | |
*Other dimensions and precision designs with smaller tolerances on request.

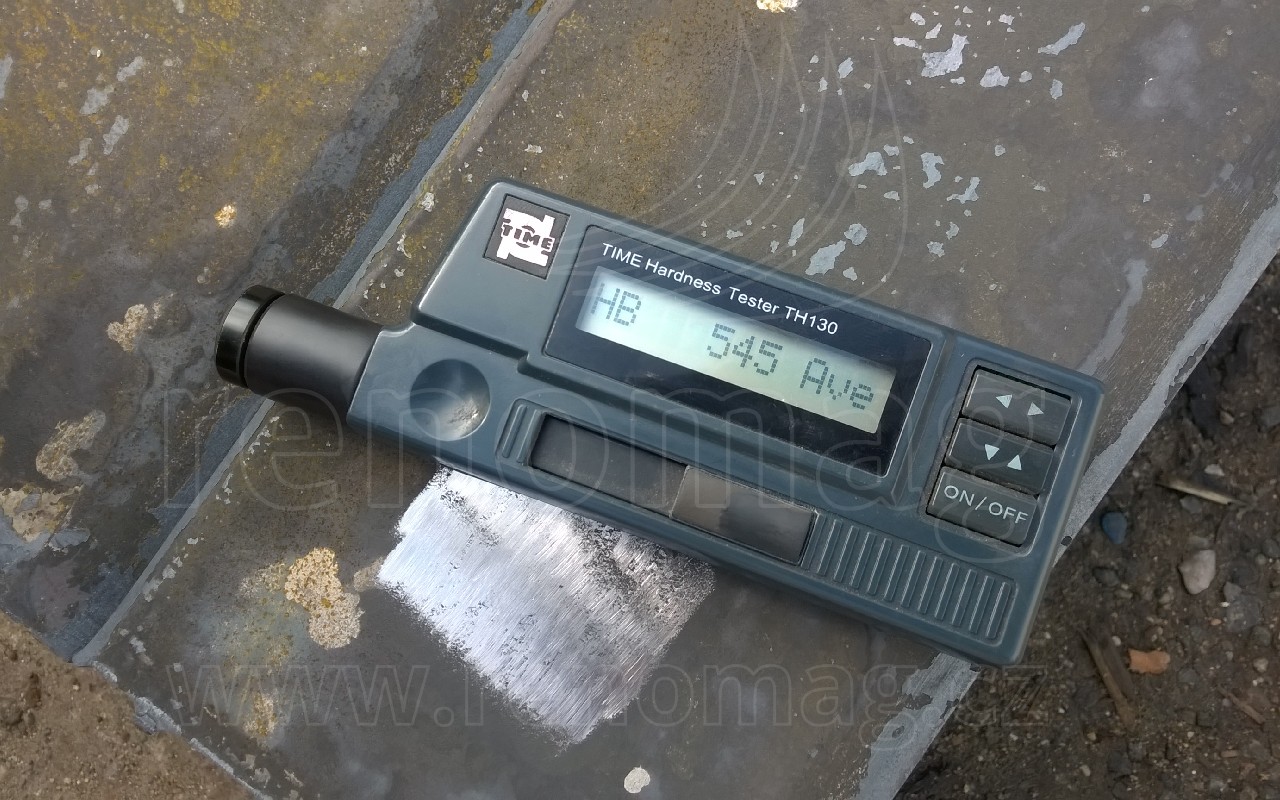

Hardness (HBW) 370-430 HB; hardness 500 HB on request; surface rolled; typical yield strength (MPa) 1000; minimum impact toughness (J) 30; good weldability.

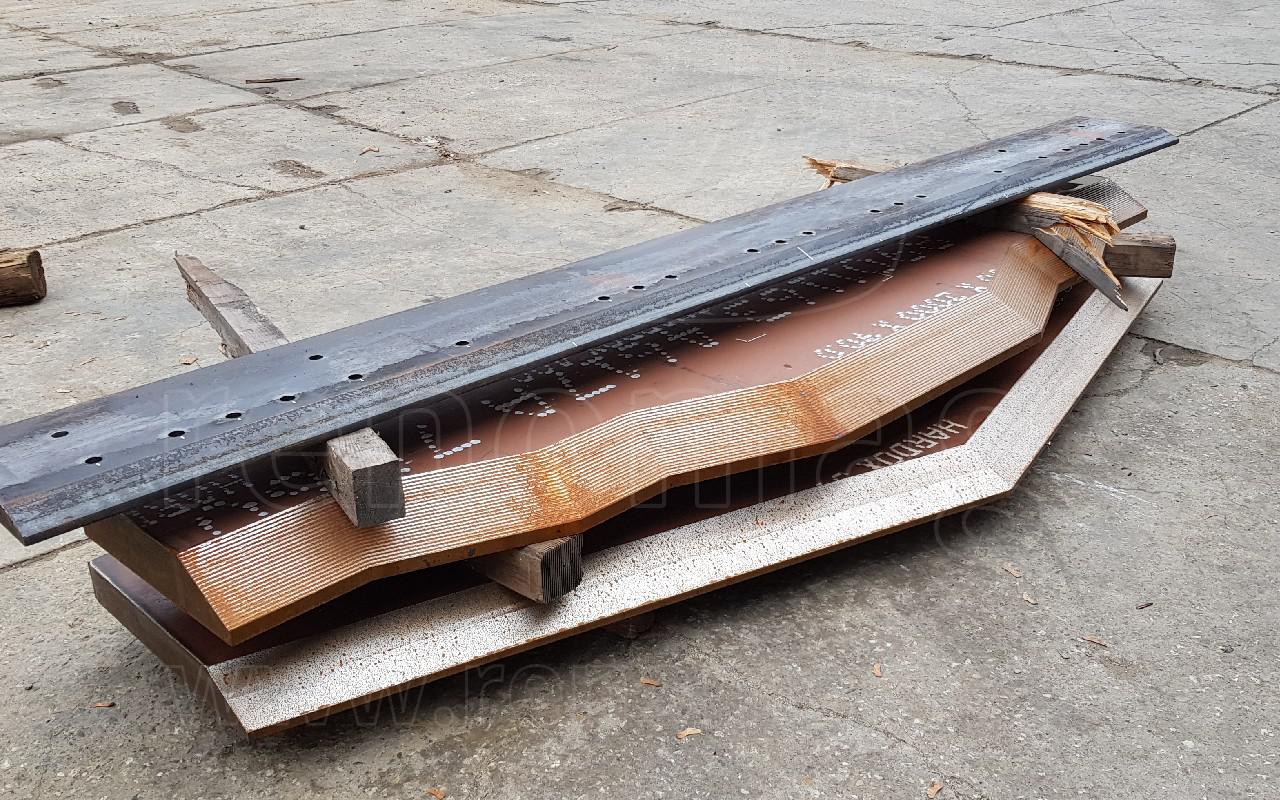

We can also build atypical edges on request.
