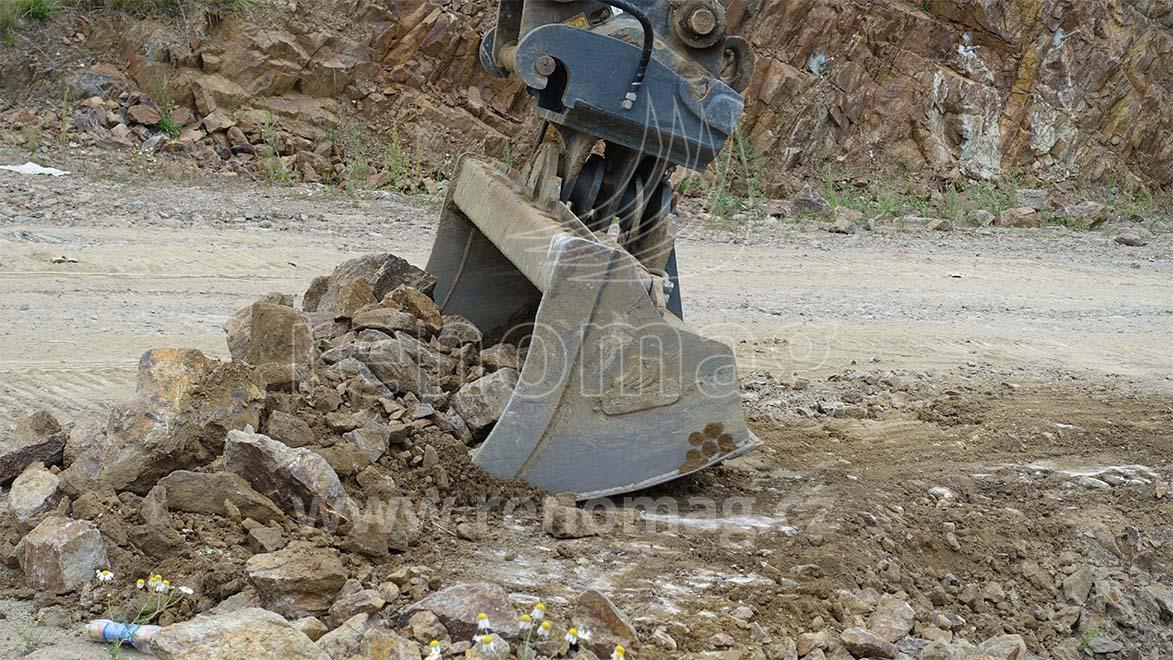

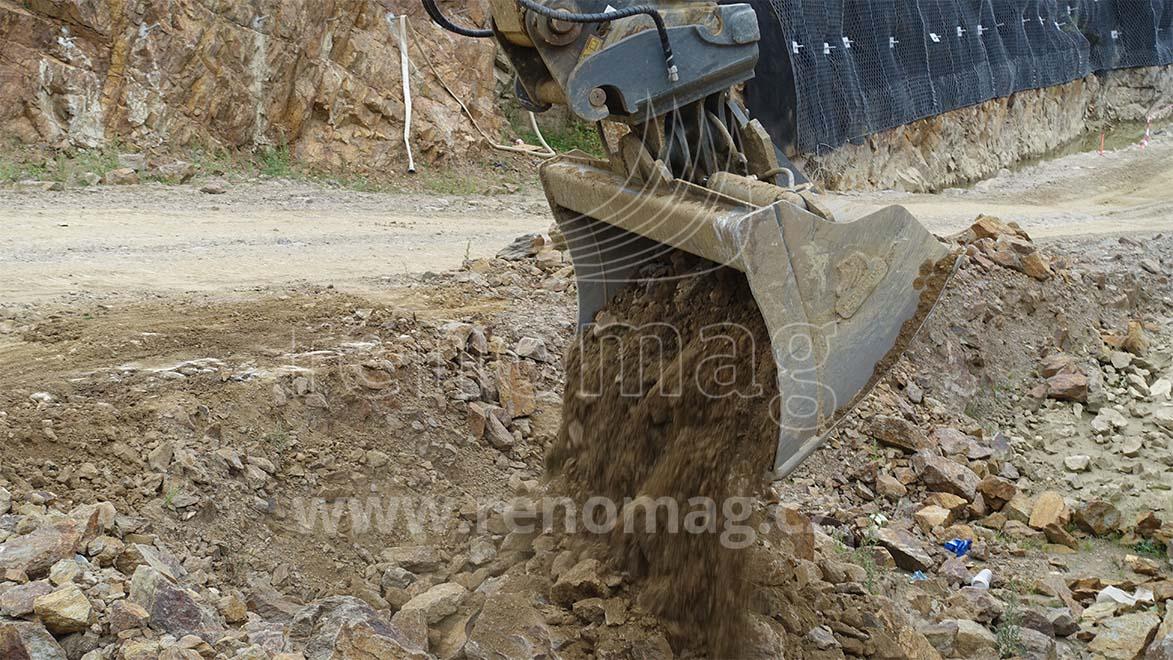

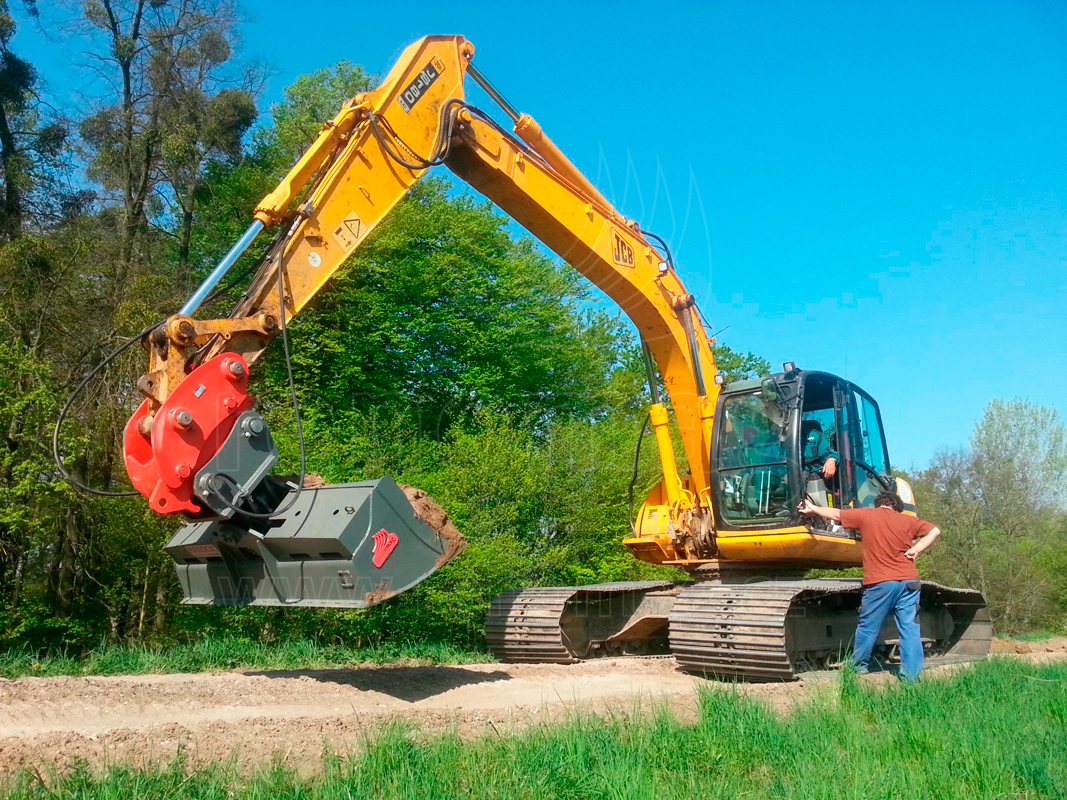

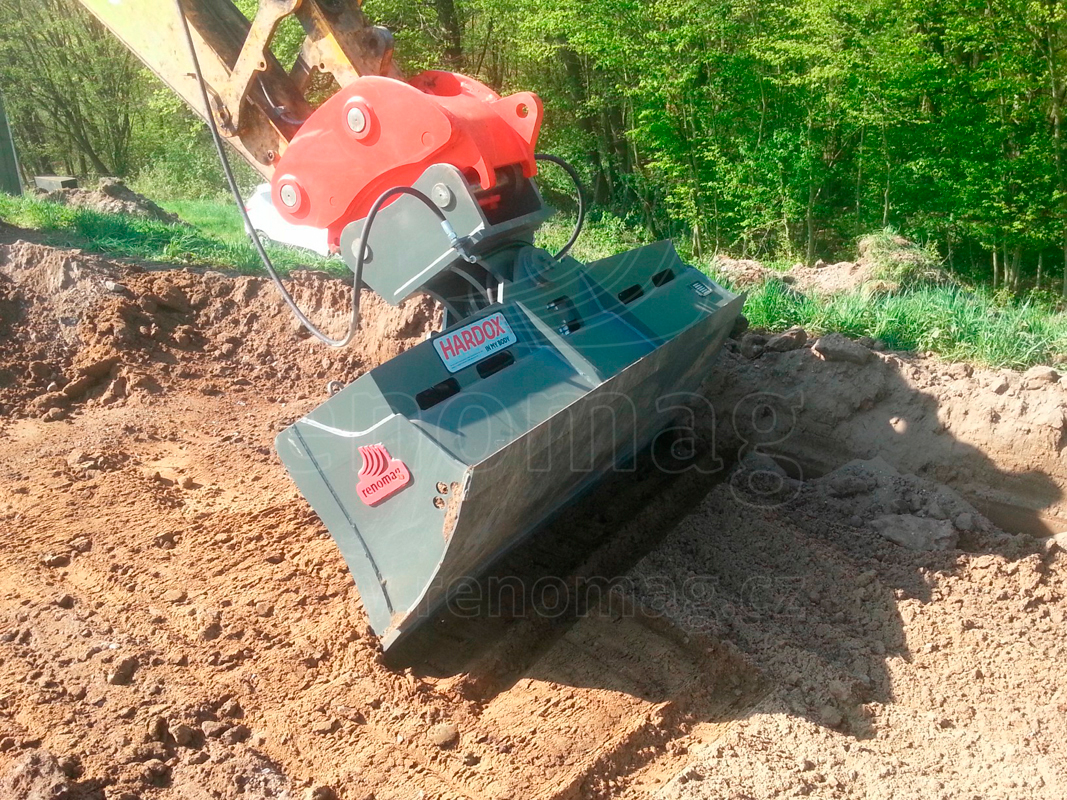

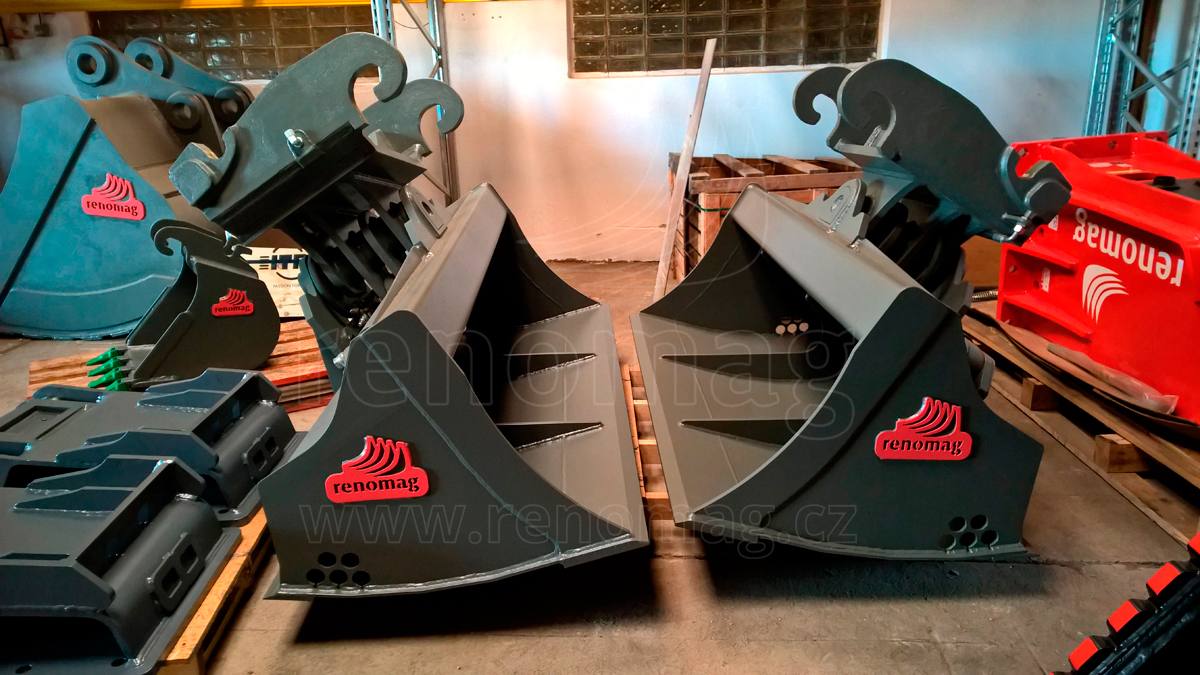

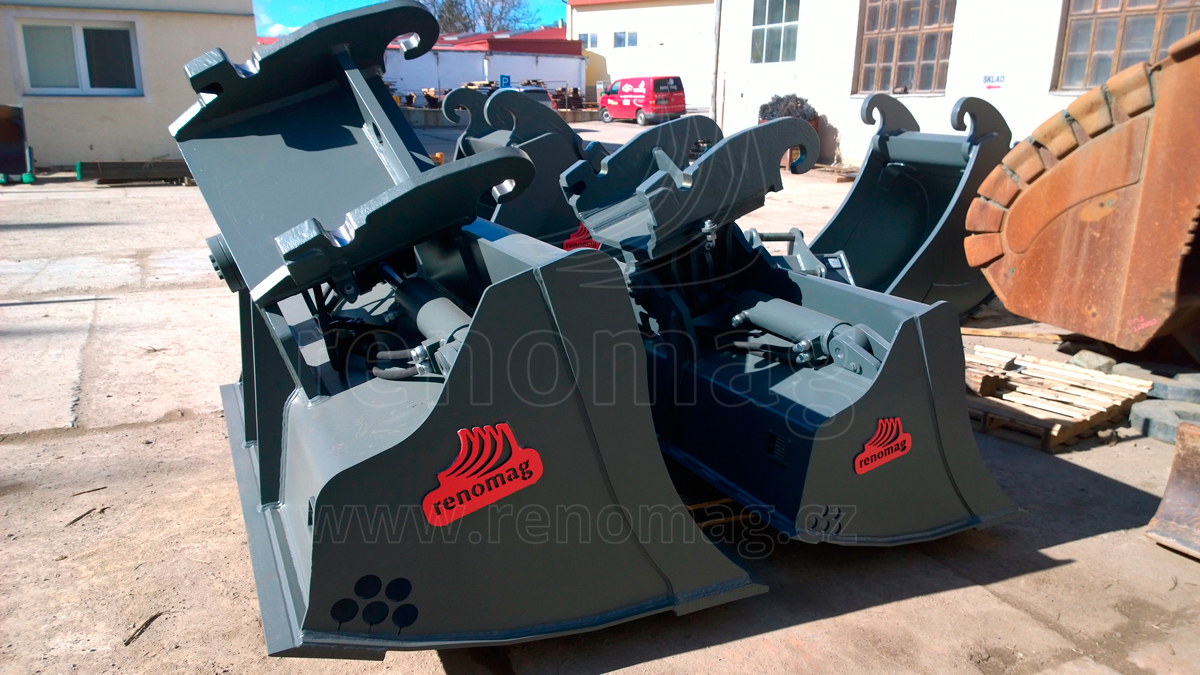

Ditch cleaning buckets

Our ditch cleaning buckets are characterized by a robust and resistant structure. During their development the long-term experience and requirements of our users were taken into account. The body from abrasion resistant material ensures a very long service life and along with its low weight achieves economical operation. Our range offers innovative slope buckets with a hydraulic rotary actuator which, as compared to standard ditch cleaining buckets buckets, provide simplicity and long life service. They bring cost savings because of their low weight, maintenance-free operation and greater excavation power, which is allowed by their compact design.

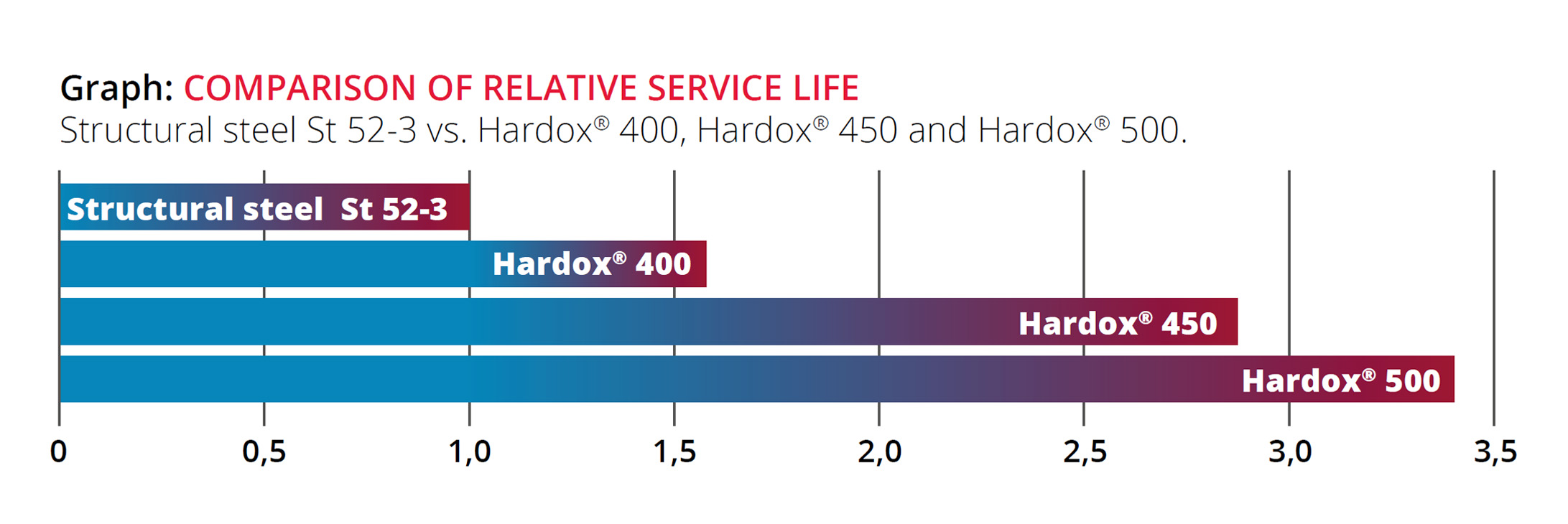

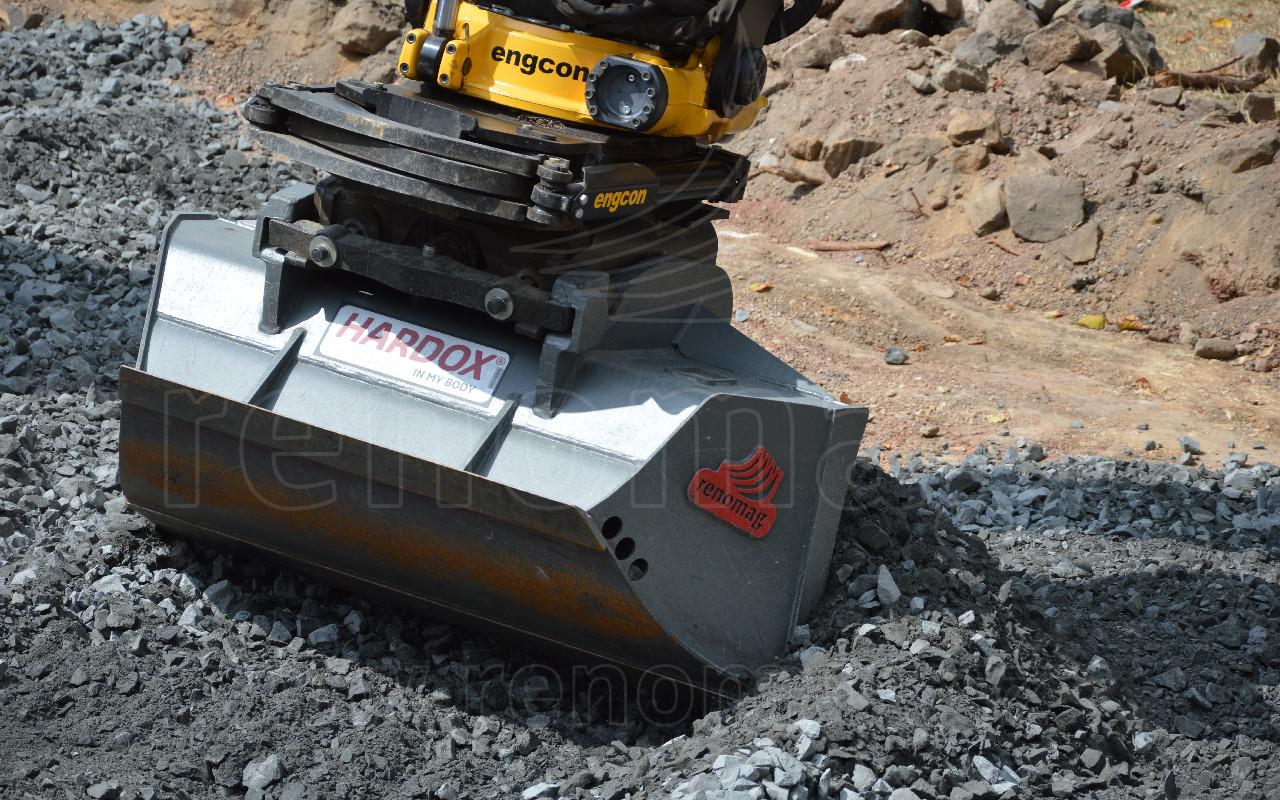

We supply ditch cleaning buckets with the following alternatives of drives and body shapes to make it easier to choose the best tool for ditch cleaning, maintenance and dredging of water courses, final grading jobs, material loading or other use of these versatile accessories. Certification Hardox^® in My Body guarantees quality, reliability and long service life.

TYPES ACCORDING TO DRIVE:

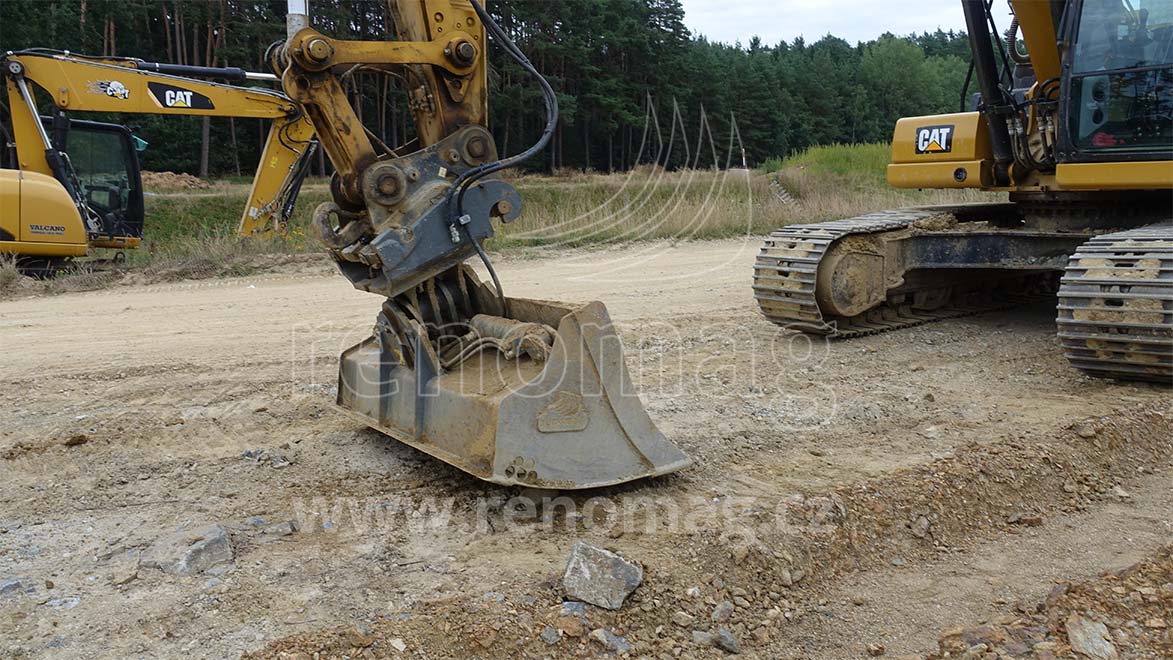

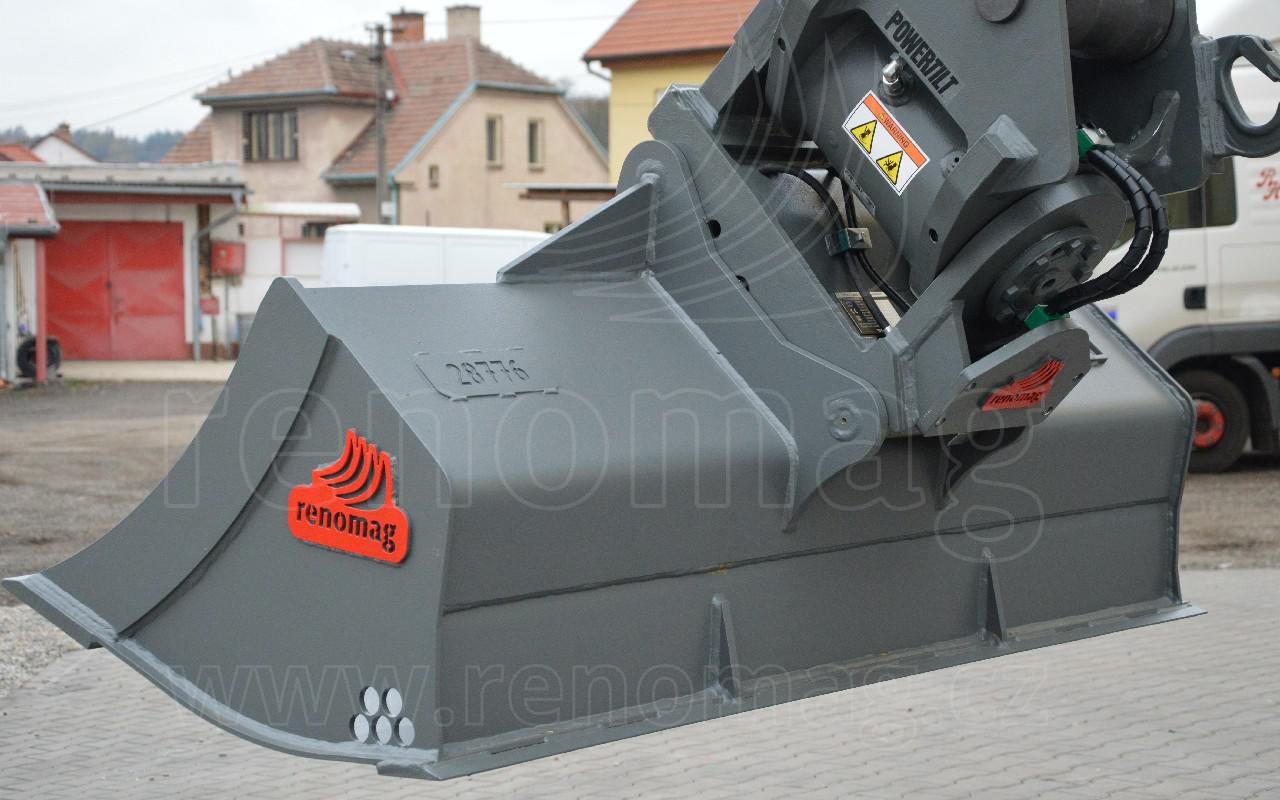

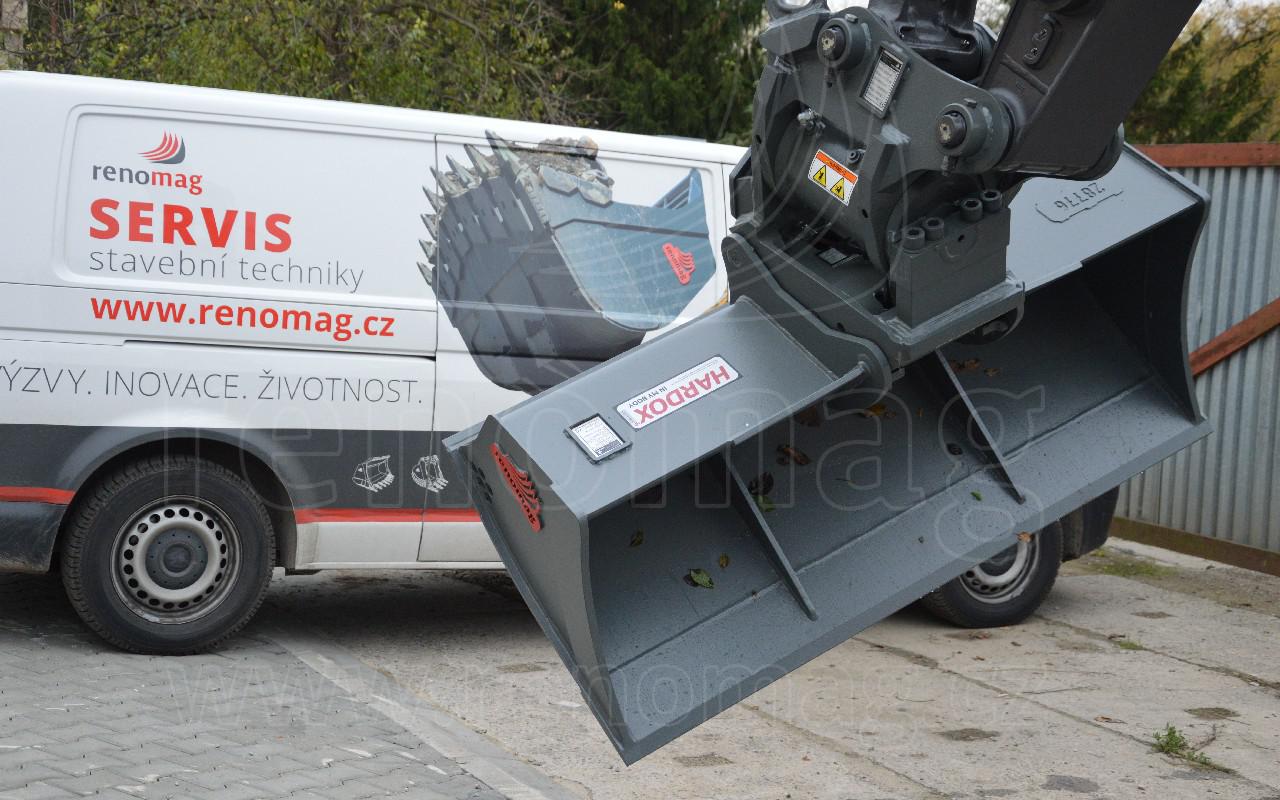

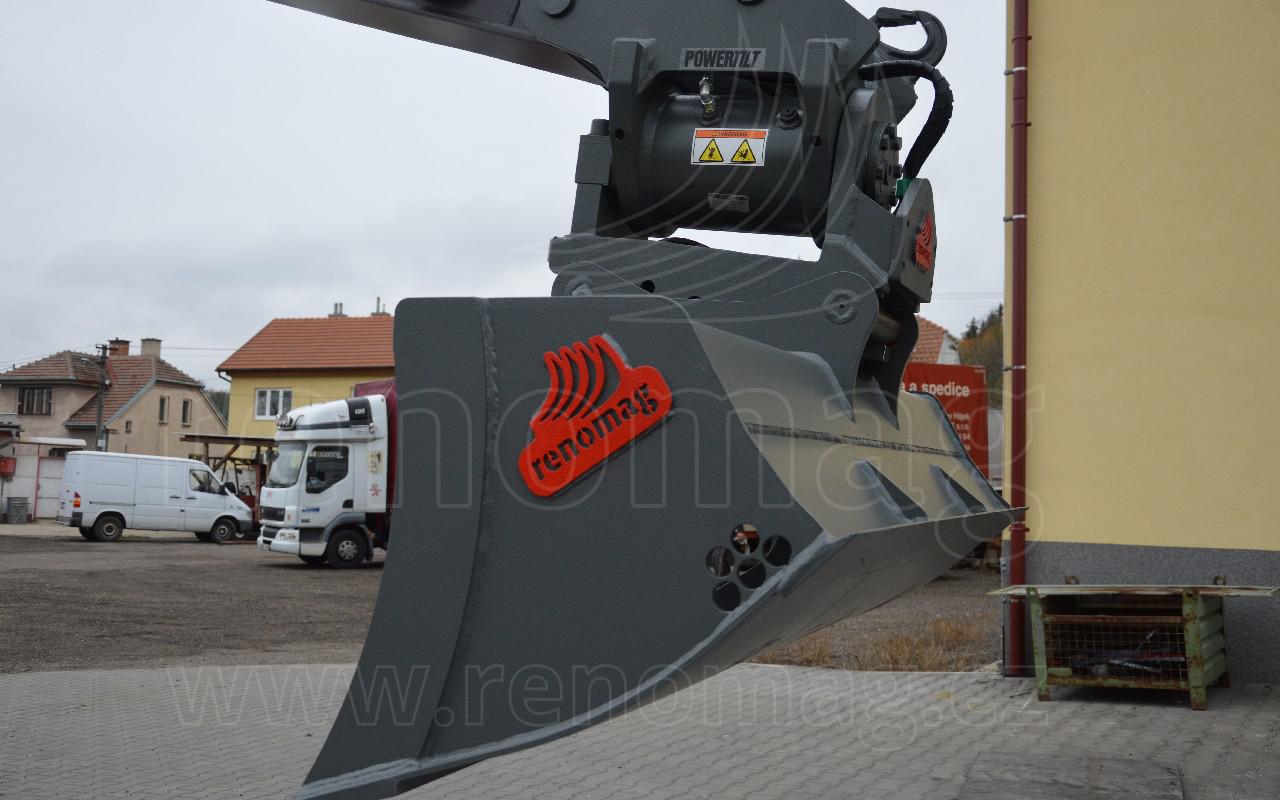

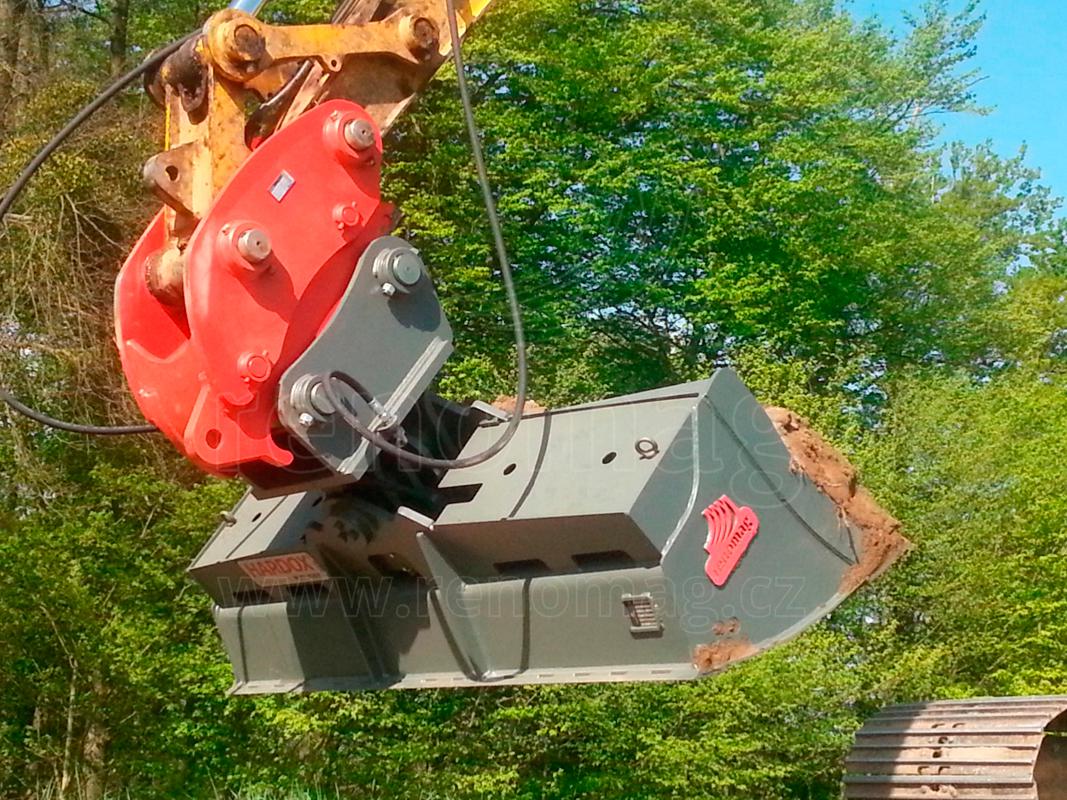

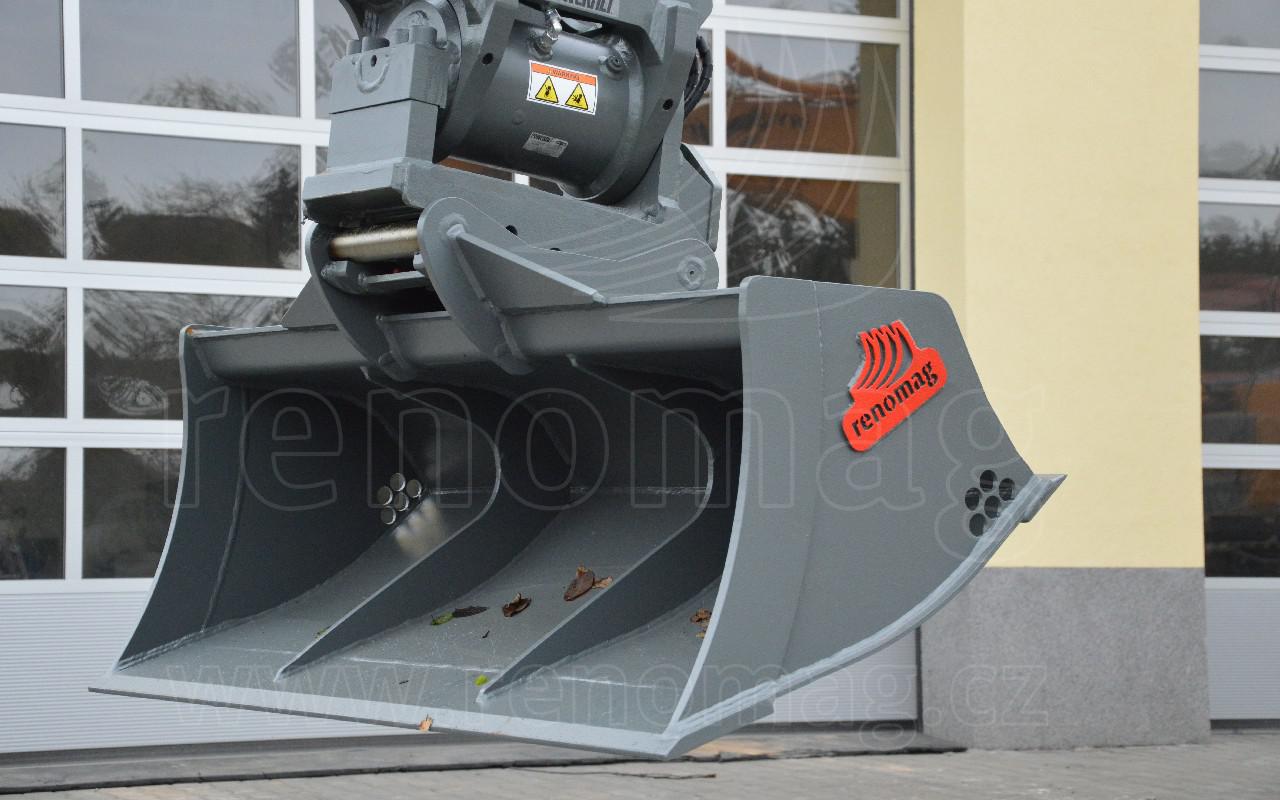

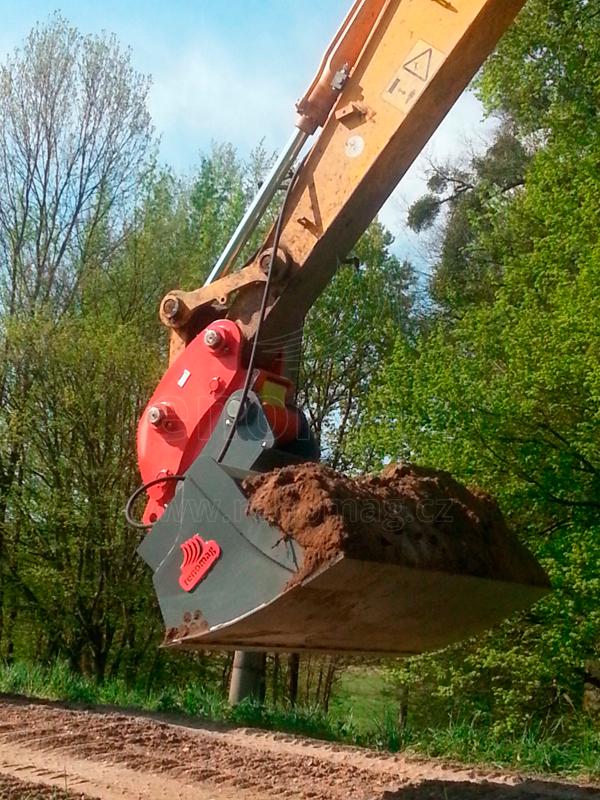

TYPE SN XHDM: hydraulic slope bucket, reinforced, with a tilt rotator

Hydraulic tilt of 2 × 45° with hydraulic tilt rotator
Exceptionally robust and compact drive, completely enclosed and protected
Ideal for work in very demanding conditions, in water, marshy areas or loamy soils
The compact size of the drive enables the bucket design even with a very small cutting width of the edge
The drive is very durable, completely sealed, with simple maintenance and resistant to mechanical impact
High reliability during work, integrated protection of the hydraulic system prevents possible damage in case of overloading
Direct connection of hydraulic hoses to the rotary motor

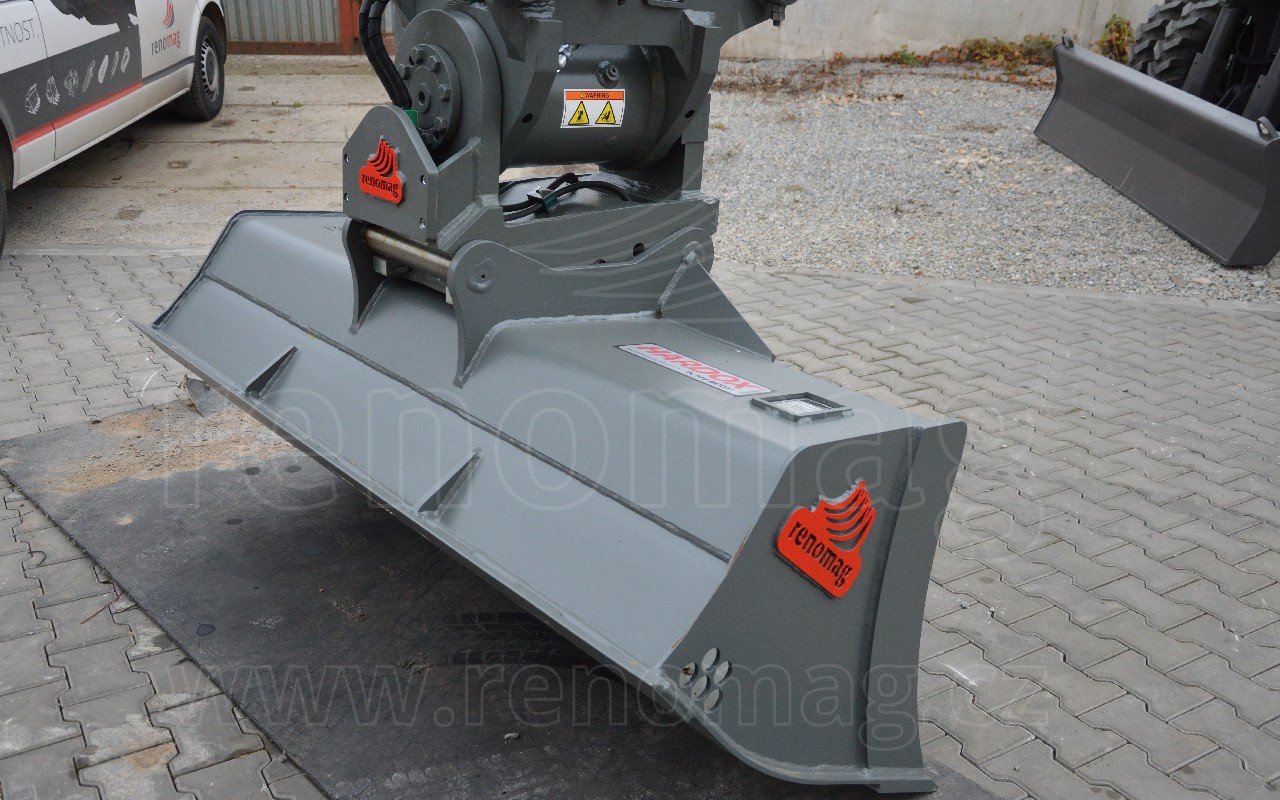

TYP SN XHDK: hydraulic tilt reinforced slope bucket, with piston rods casing

Hydraulic tilt 2 × 45° with 1-2 cylinders according to machine size, with casing
Long service life of piston rods as well as other hydraulic elements in the model with the cover; easy maintenance due to the possibility of fast removing of the casing
Short length hoses are placed near the rotation axis and chosen with regard to minimizing risk of damage
High operational safety is provided by integrated protection against overloading of hydraulic cylinders and hoses, standard for machines above 10 tonnes
Robust, resistant rotary head with one or, for machines above 10 tonnes, two hydraulic cylinders with sufficient capacity

TYPE SN XHDB: hydraulic tilt reinforced slope bucket

Hydraulic tilt 2 × 45° with 1-2 cylinders according to machine size, without casing
Short length hoses are placed near the rotation axis and chosen with regard to minimizing risk of damage
High operational safety is provided by integrated protection against overloading of hydraulic cylinders and hoses, standard for machines above 10 tonnes
Robust, resistant rotary head with one or, for machines above 10 tonnes, two hydraulic cylinders with sufficient capacity

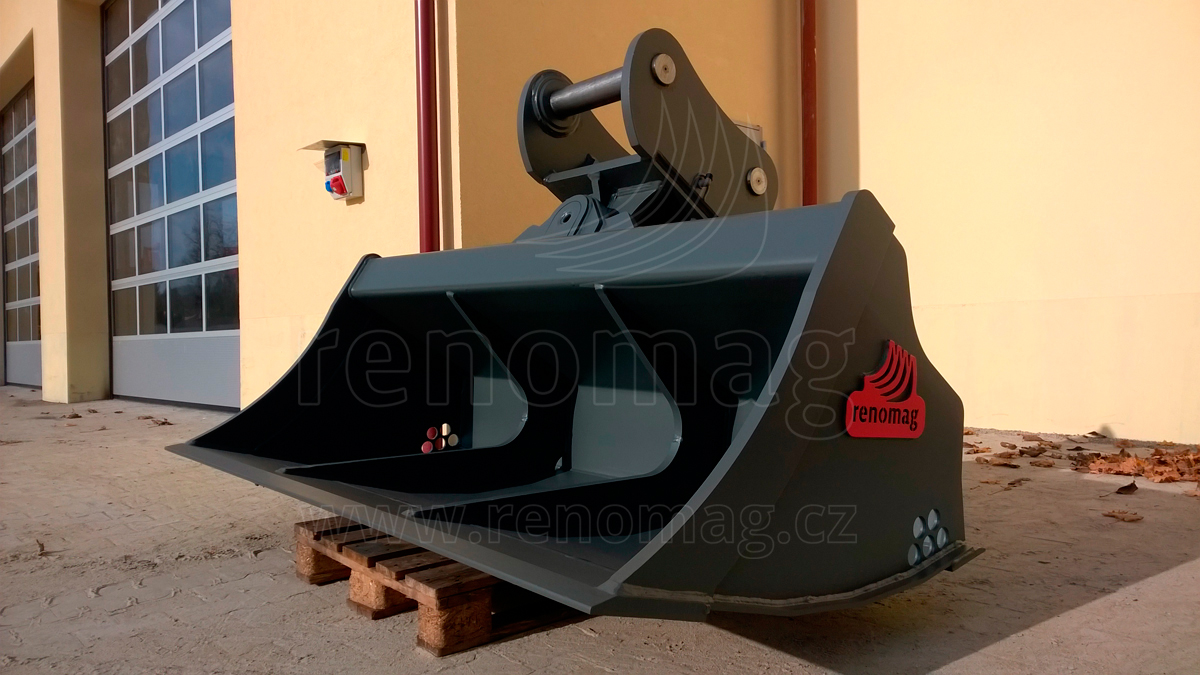

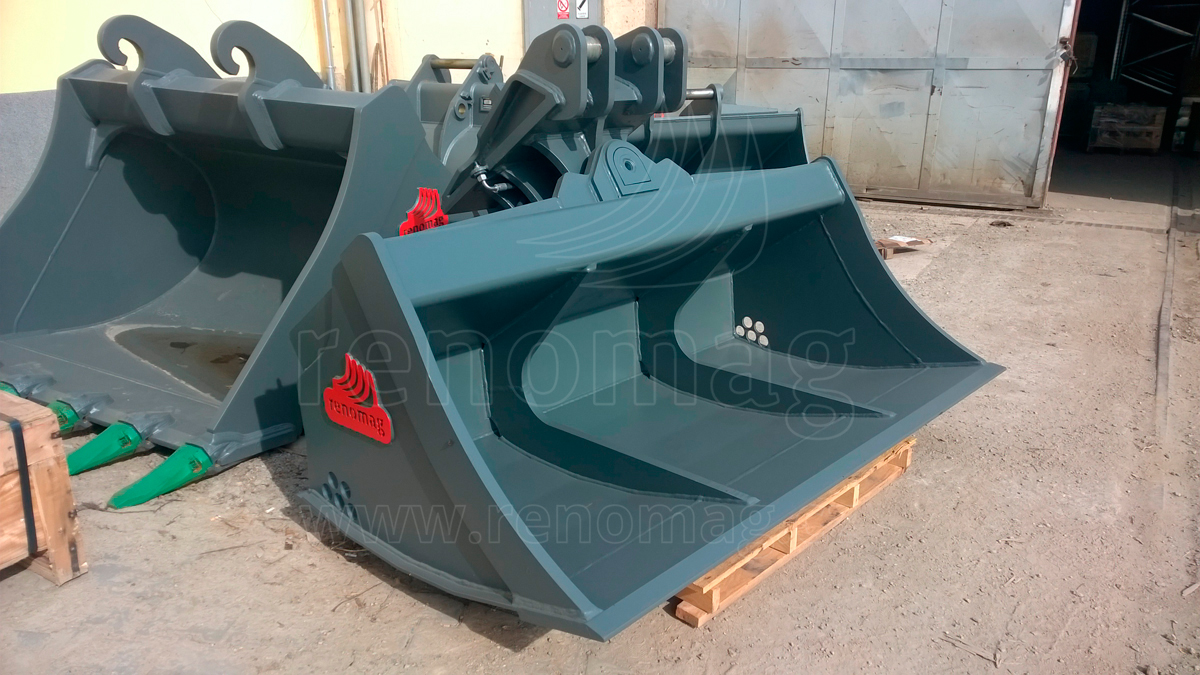

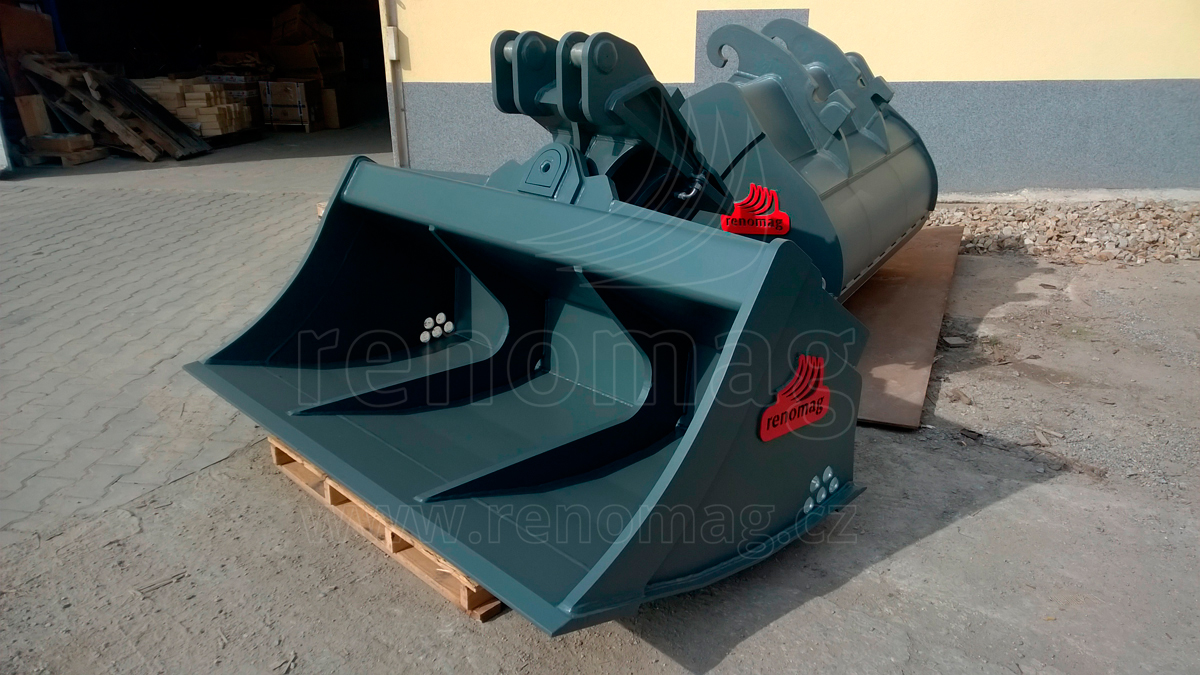

TYPE SP XHD, fixed slope bucket, reinforced

The solid design of suspension for high strength and torsion resistance in critical spots of parts connection
The most strained parts are made from abrasion resistant solid steel for maximum endurance with low weight maintained
