Undercarriage Parts ITM
Titan EuropePlc, a company currently incorporating also the well-known manufacturers of Titan Intertractor GmbH and Italtractor ITM SpA, is a world leader in designing and manufacturing undercarriage components as well as complete undercarriages.
Intertractor's extensive know-how in the areas of hydrostatic driving units and steel structures along with the vast knowledge and experience gained by ITM in manufacturing undercarriage components, create a fully fledged basis for delivering products and providing services for manufacturers of construction, transportation, mining and agricultural machinery. The firms develop all-embracing systemic solutions able to meet each and every specific requirement that the customer may have. Acting through dealers and distributors, the companies supply their products not only to the primary production but also to the global market in replacement parts. Their manufacturing plants in Italy, Germany, Spain, USA, Brazil and China and a trading company in Japan are staffed by about 1300 employees. Consequently, the undercarriage parts branded ITM, Itrac and the teeth systems of the Pyrsa and Shark concerns are made and distributed all around Europe, the Middle-East, North and South America and Southeast Asia.
Users of the ITM undercarriage parts can count on their quality and long service life – the attributes resulting from many years of development and experience of one of the world leading manufacturers, supported by the first-rate service support from Renomag.

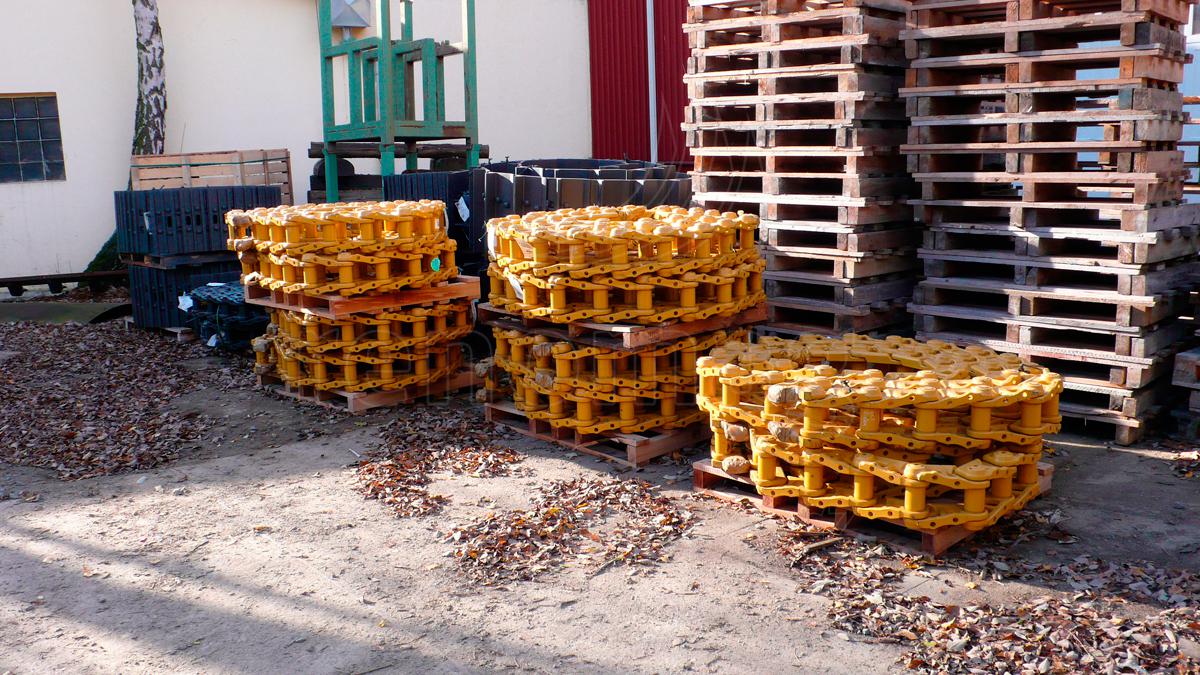

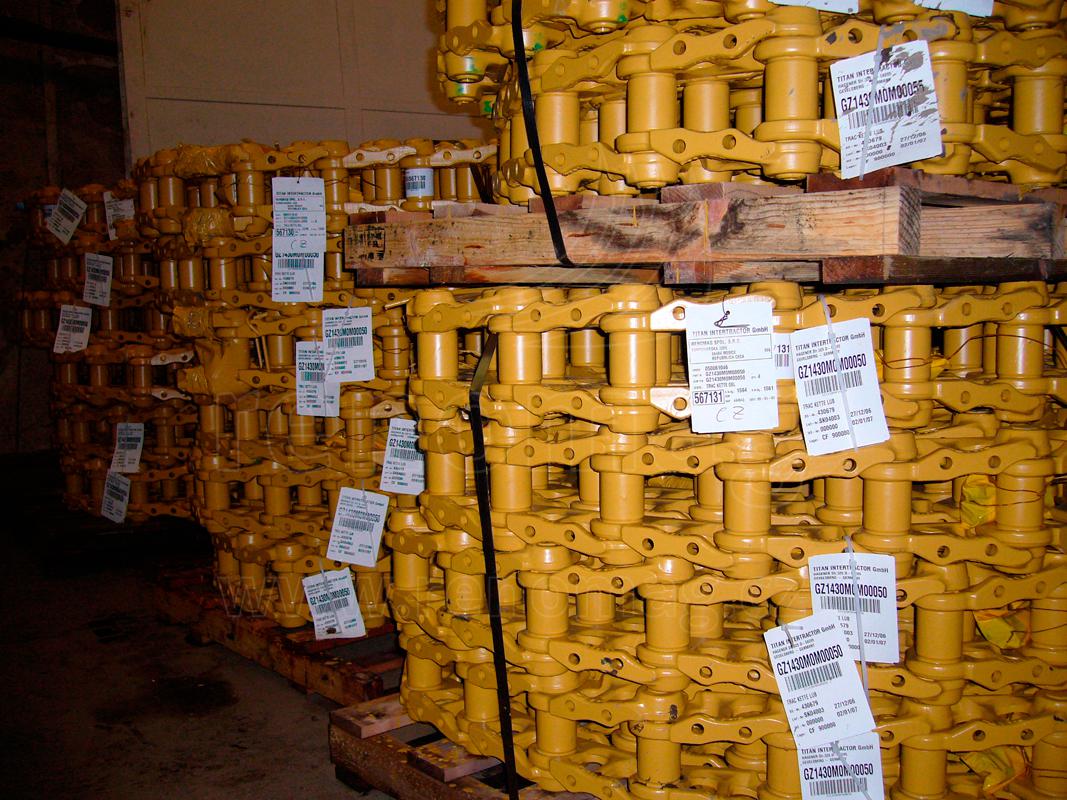

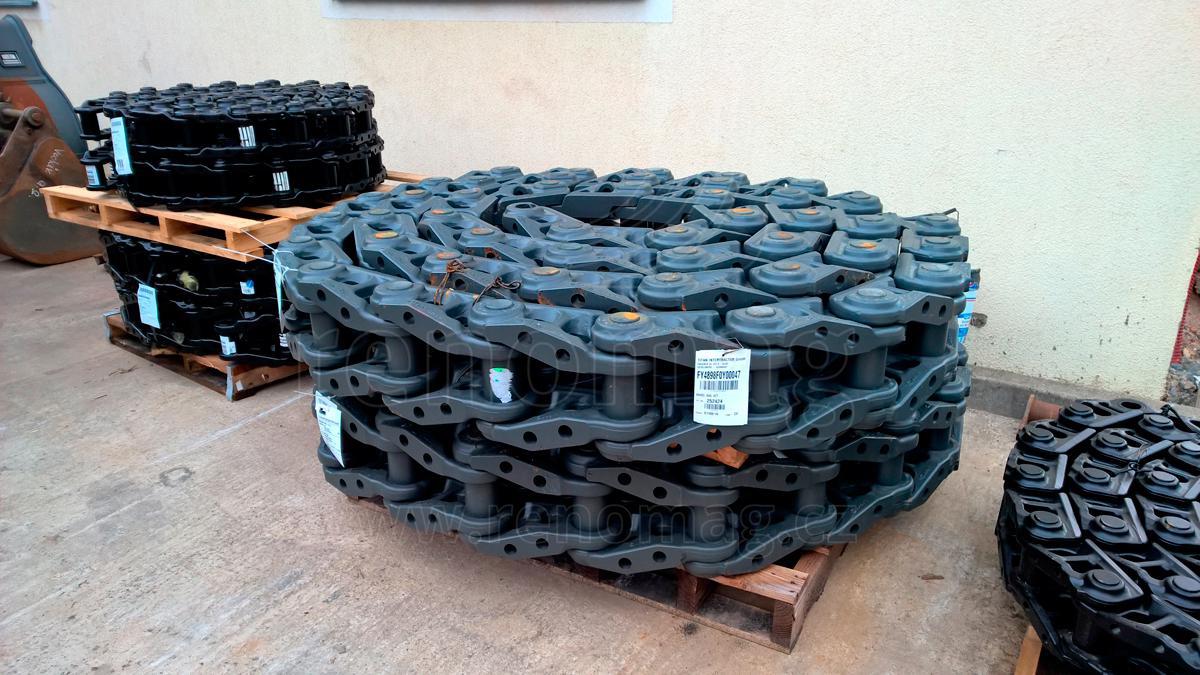

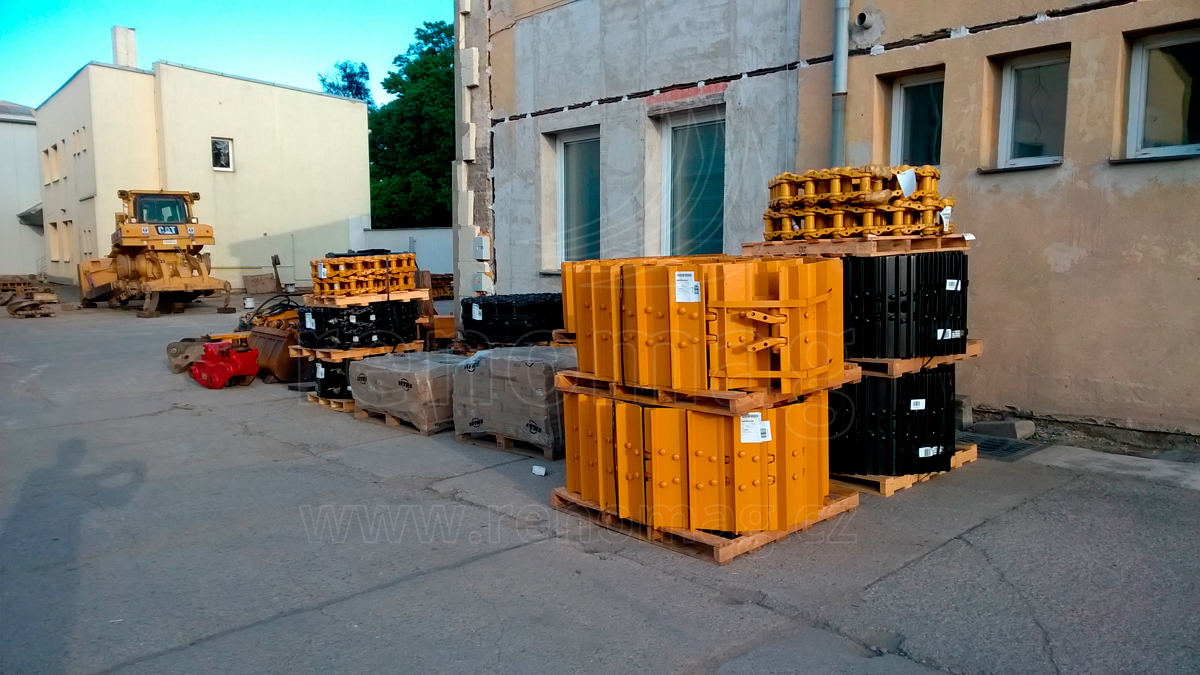

Chains for machines with crawler undercarriages
- chains with links spaced 90 to 350 mm for all earth-moving, mining, agricultural and special-purpose machines;
- wide choice of chains: non-lubricated; sealed; greased with polyurethane sealing; and oil-lubricated;
- sturdy design of links for long resistance to wear and tear;
- sealing specially developed for all lubricated tracks to maximize their service life;
- in-depth hardened links, pins and bushings offering high surface hardness and long resistance to wear and tear;
- master link (ITM patent protected) allowing fast and easy track assembly and disassembly;
- chains assembled from high-precision components designed and manufactured with the aim of achieving maximum reliability.

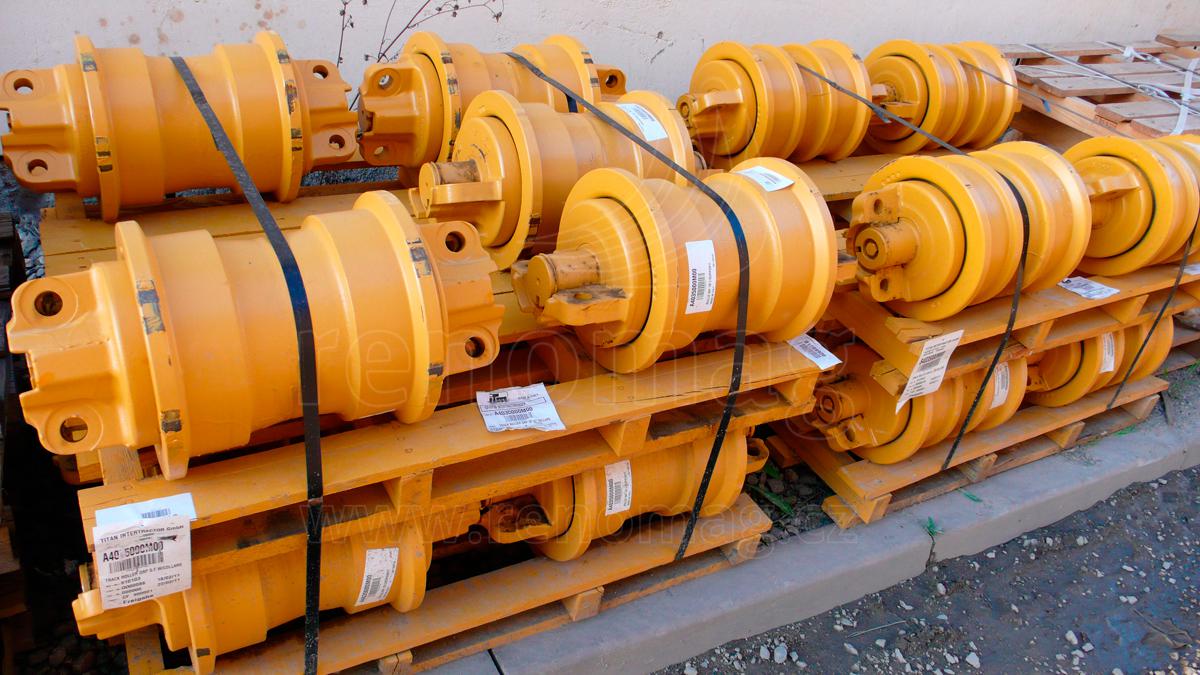

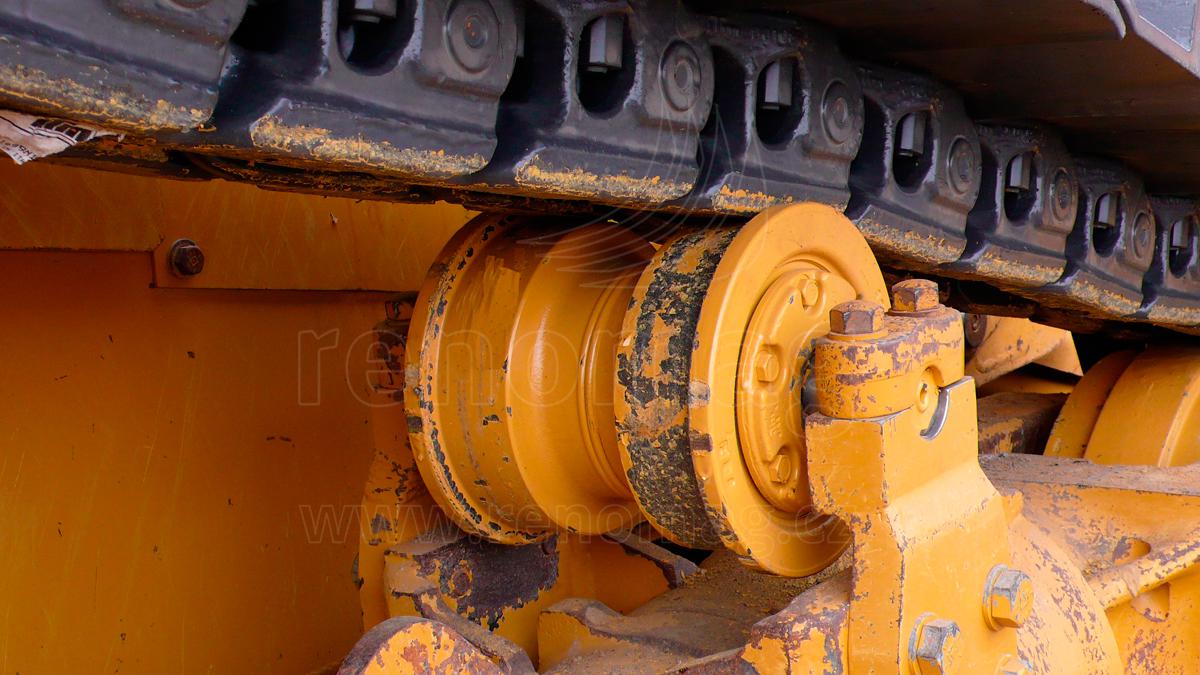

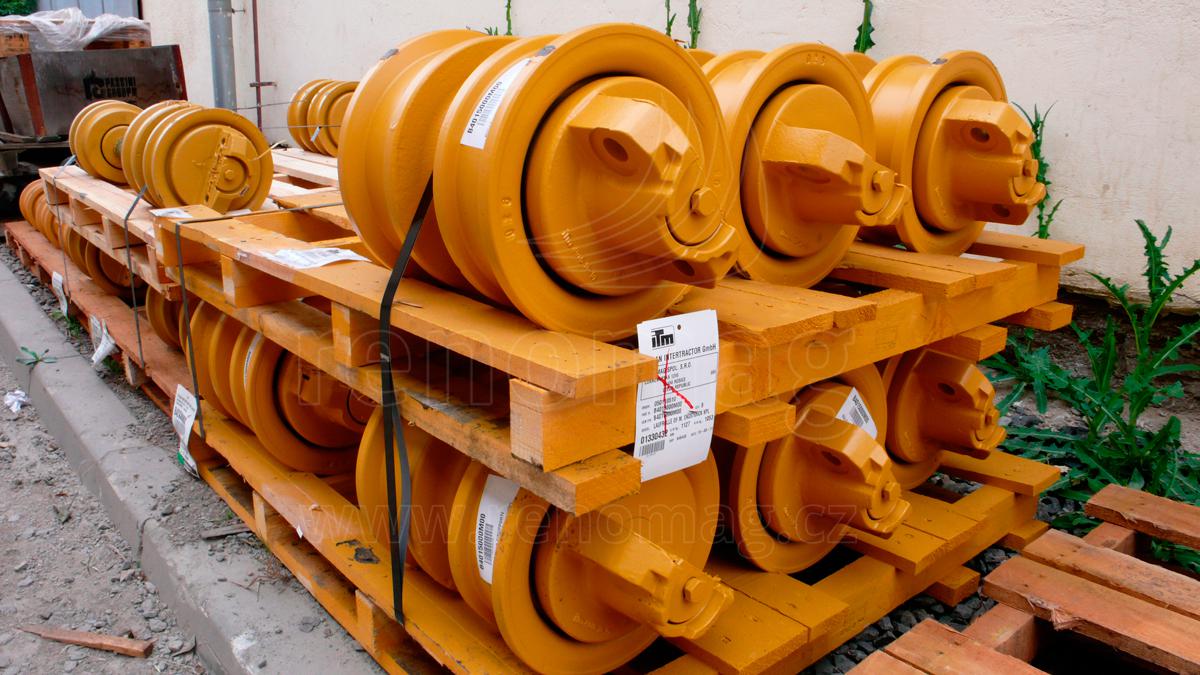

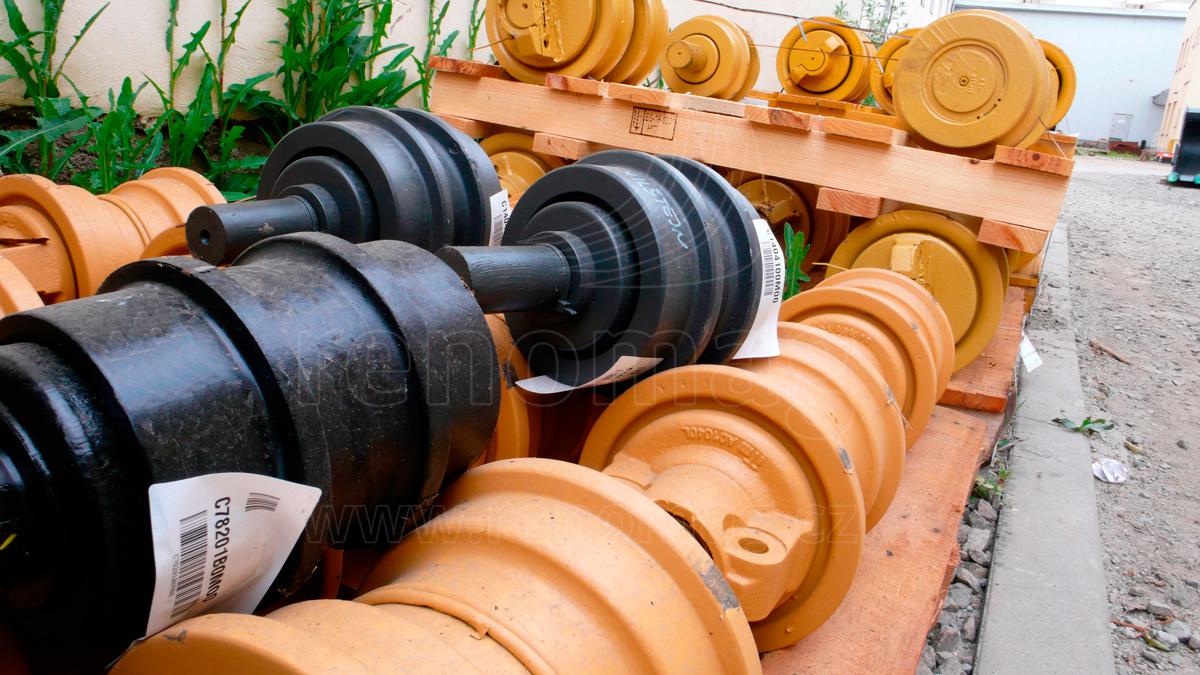

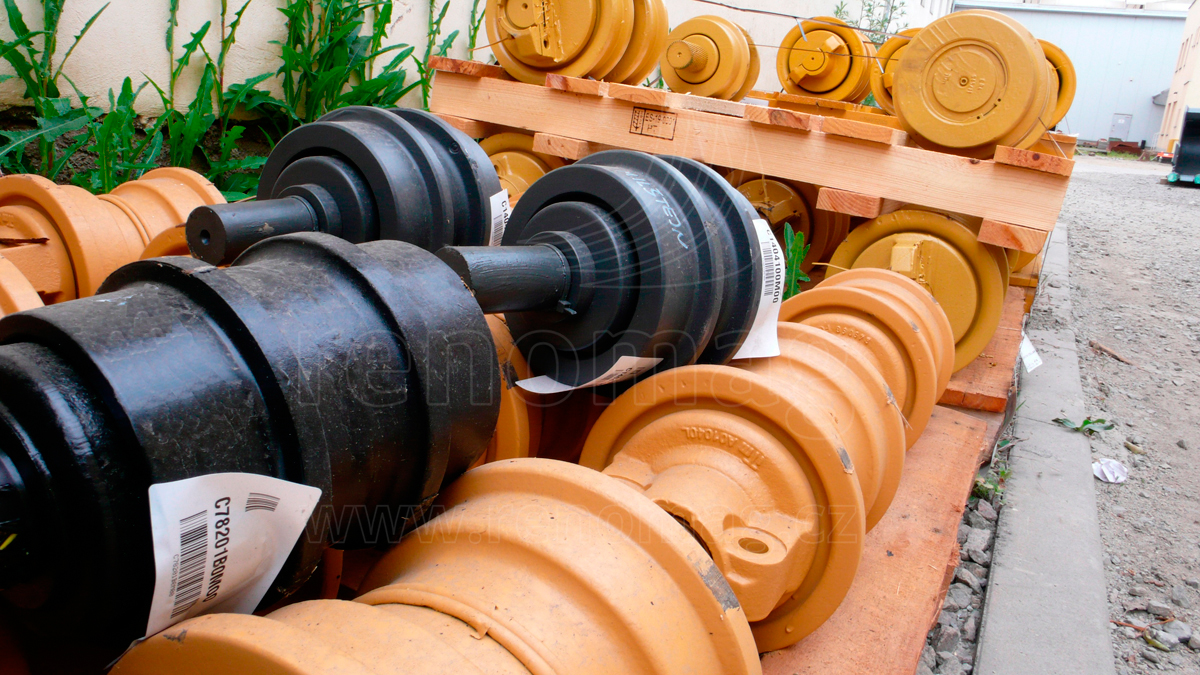

Track rollers and carrier rollers
- a choice of rollers with one or two grooves and carrier rollers designed for excavators, mini-excavators and bulldozers weighing from 0.8 to 800 tonnes;
- special-purpose versions of rollers for road millers, finishers and forest machinery;
- lubricated for life; dual cone sealing for long service life and peak performance in any operational conditions;
- hot-forged outer casings of rollers for ideal internal arrangement of material filaments;
- thermally processed by differential hardening for long life and high resistance;
- all components neatly designed and made by advanced technology for maximum reliability and long service life.

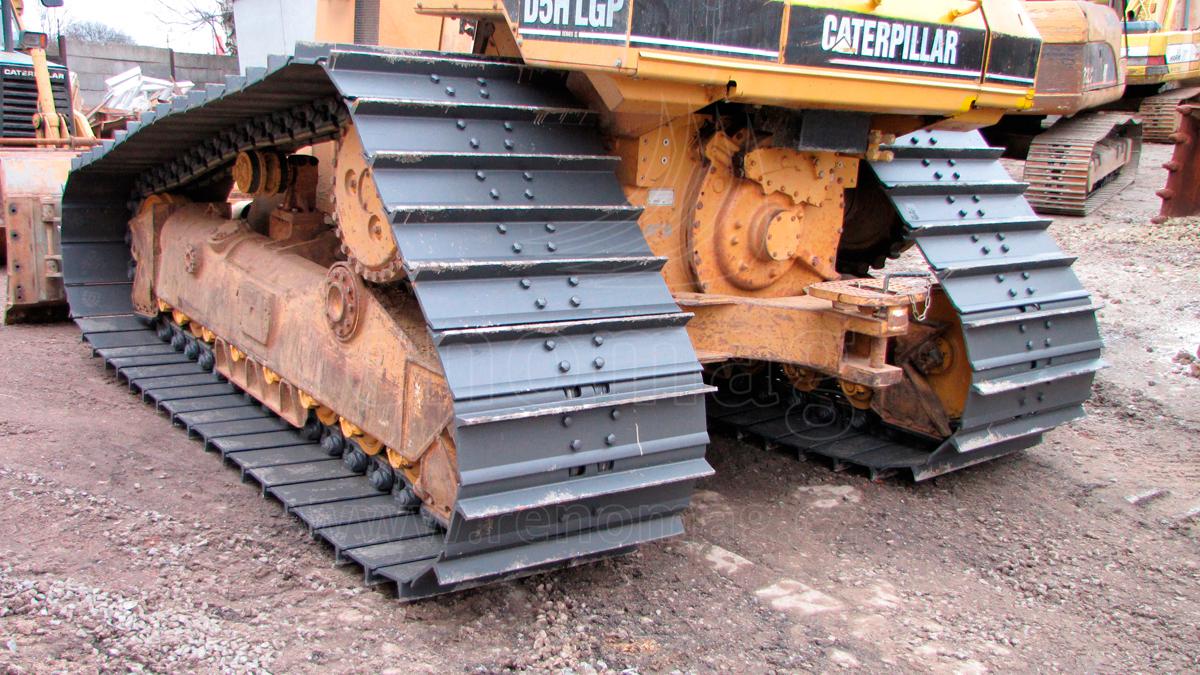

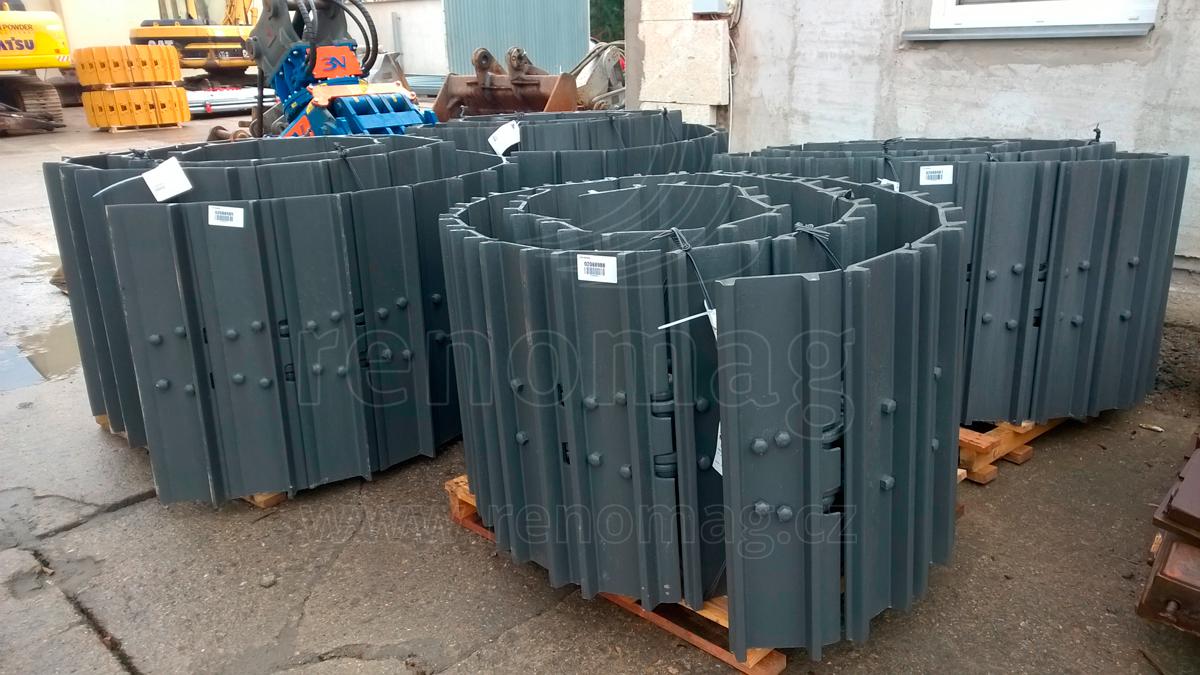

Track shoes
- wide range of single, double and triple hot-rolled profiled elements intended for tracks with links spaced 90 to 350 mm;
- over 5000 different configurations to suit any customer application - track shoes for standard to extreme operations;
- rubber-coated and polyurethane-coated designs for use in special conditions and on roads;
- bending strength and high resistance to wear in any operations guaranteed by special boronated alloyed steel and by proper heat processing;

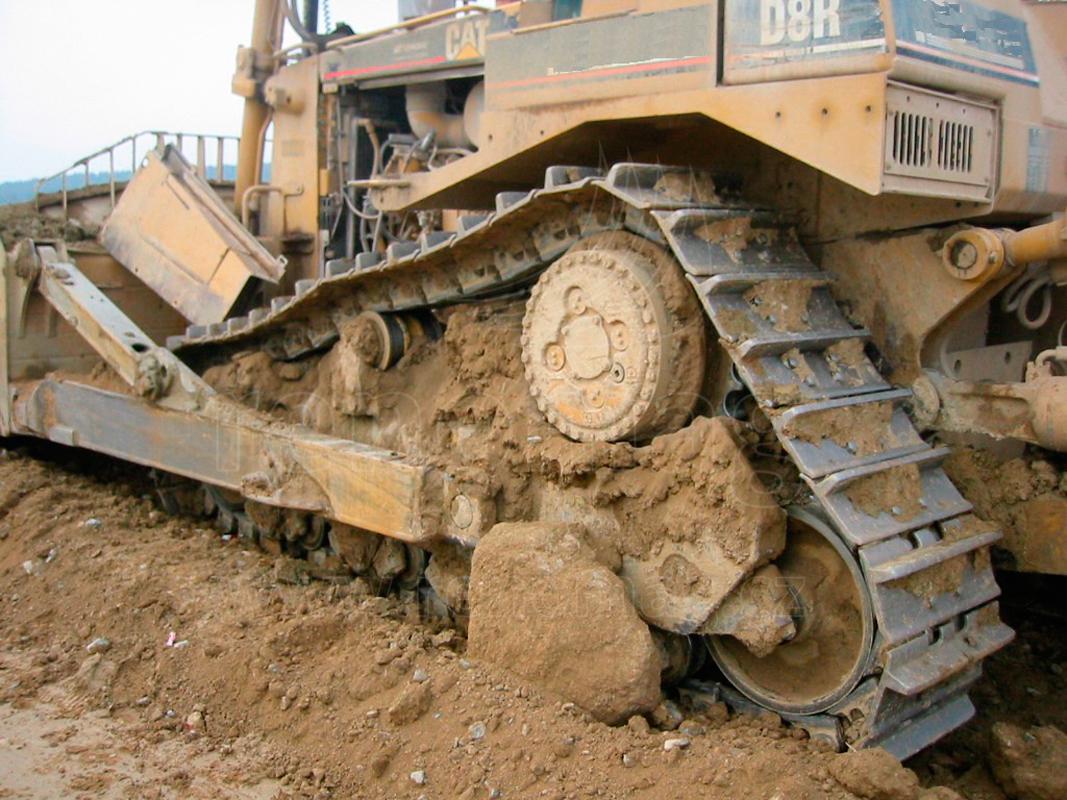

Drive sprockets, bolted drive sprockets, weld-on drive rims, segments
- wide assortment of drive sprockets and their rims designed for tracked earth-moving and special-purpose machines from 0.8 to 350 tonnes;
- broad range of segments from 3 to 6 teeth suitable for all types of tracked machines weighing from 6 to 100 tonnes;
- drive sprockets, bolted drive sprockets and weld-on rims made of special alloyed steel featuring ideal internal & external homogeneity for resistance to deformation;
- precision-forged drive sprockets, bolted drive sprockets and weld-on rims designed for perfect assembly and eliminating the risk of misalignment and unwanted disengagement;
- effective depth of hardening translated into prolonged service life and exceptional resistance to wear and tear;

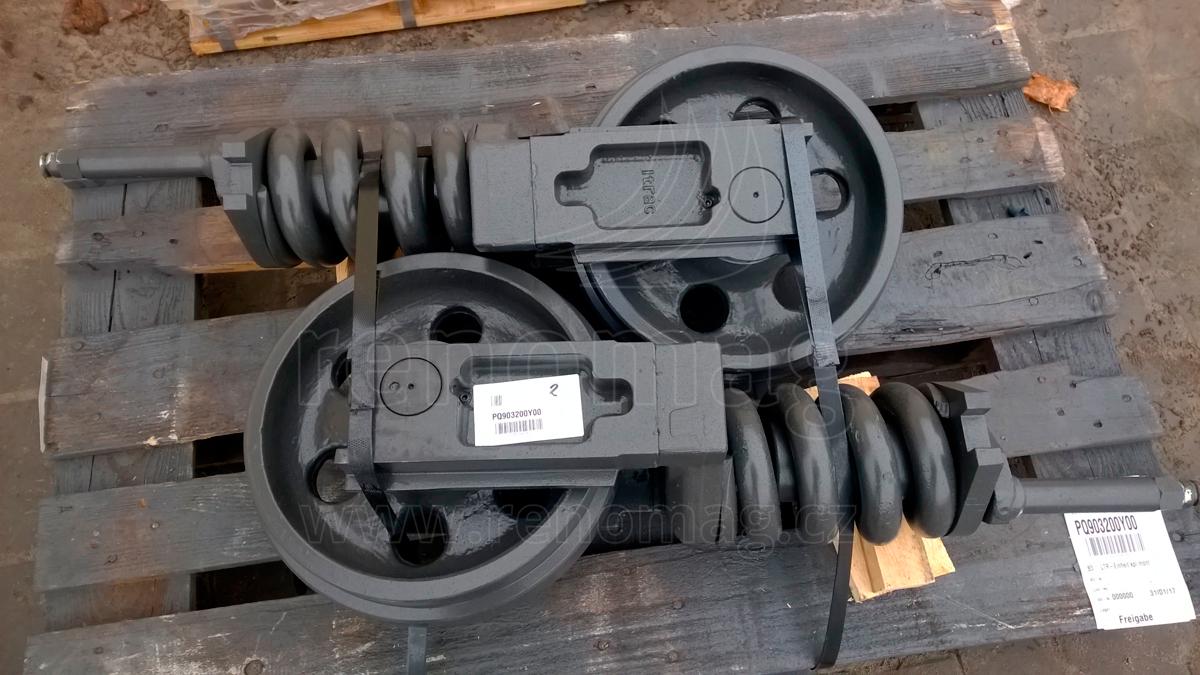

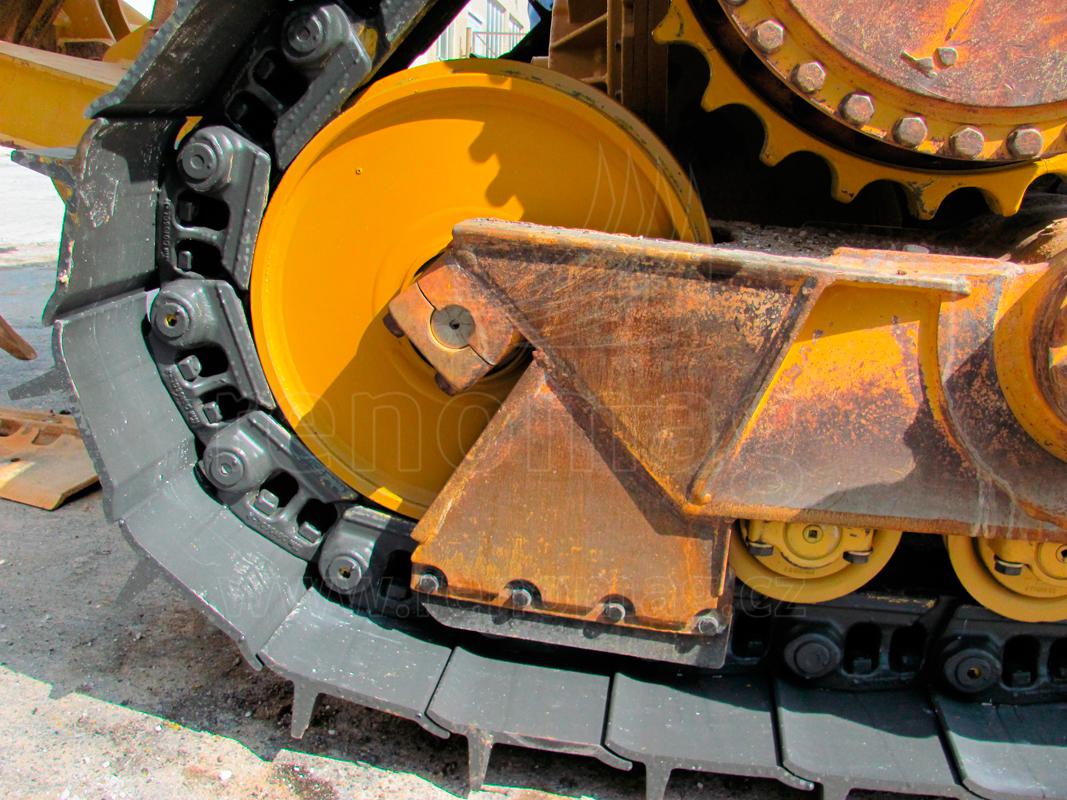

Idler wheels with tension units
- wide range of idler wheels designed for tracked earth-moving and special-purpose machines weighing from 0.8 to 500 tonnes;
- available in cast, forged and machined types;
- special heat treatment for longer life and maximum resistance to large loads and impacts;
- greased for life with double cone-shaped sealing - for standard and extreme temperatures;
- wide assortment of idler wheels tensioned with springs, elastomers and/or nitrogen accumulators for mining machines.
Achievement of process quality
World-class quality is achieved by applying state-of-the-art technologies from the stage of designing to the stage of manufacturing, followed by rigorous testing of both the process and the product.
Quality of product
Outstanding quality of the product is guaranteed by consistent research, specialized laboratory analyses and stringent testing of all the devices.
Quality of servicing
Close cooperation with customers and thus speedy and effective satisfaction of their requirements is greatly facilitated by worldwide presence of the company's manufacturing plants.
ITM supplies machine undercarriages to many global manufacturers, specifically to:
Argo Tractors, Atlas Copco
CNH
Deere
Hitachi
Doosan Heavy Industries
Fayat
Hitachi
JCB
John Deere
Kobelco
Komatsu
Liebherr
Same Deutz-Fahr
Sandvik
Terex
Thyssen Group
Vögele
Volvo
Wirtgen Group
