Shafts screeners

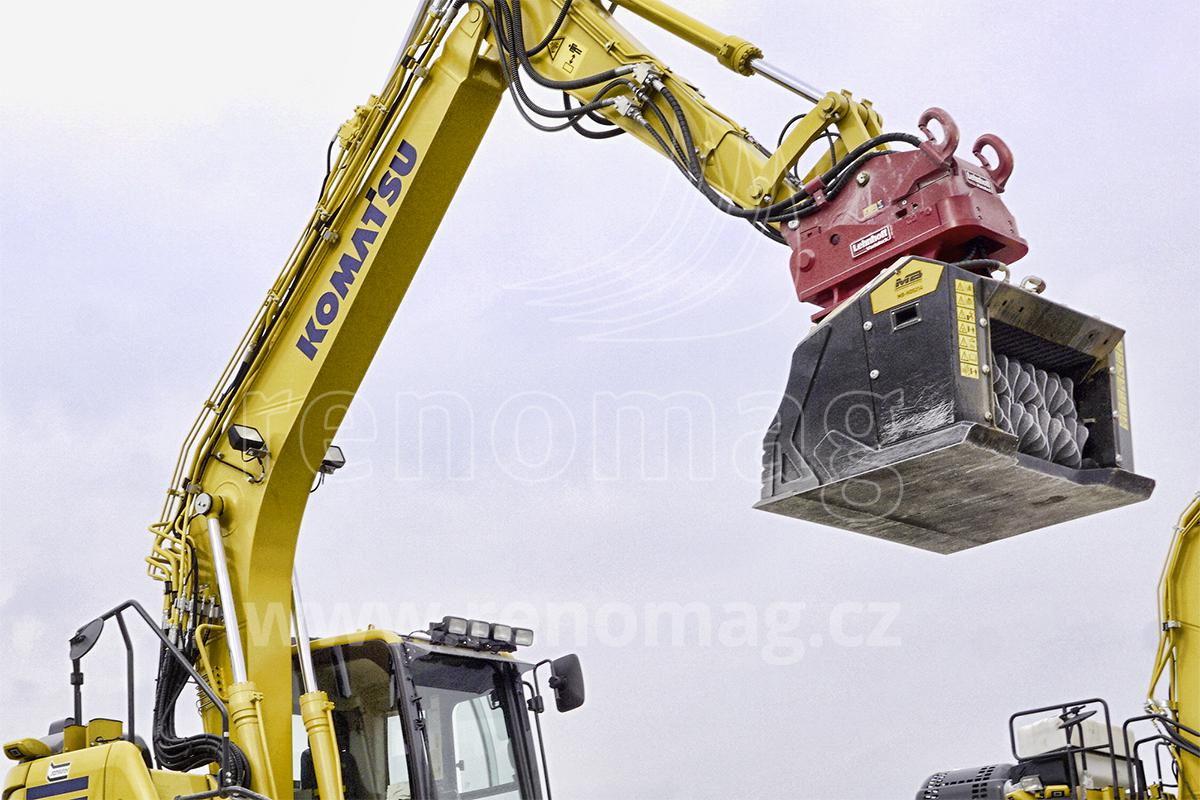

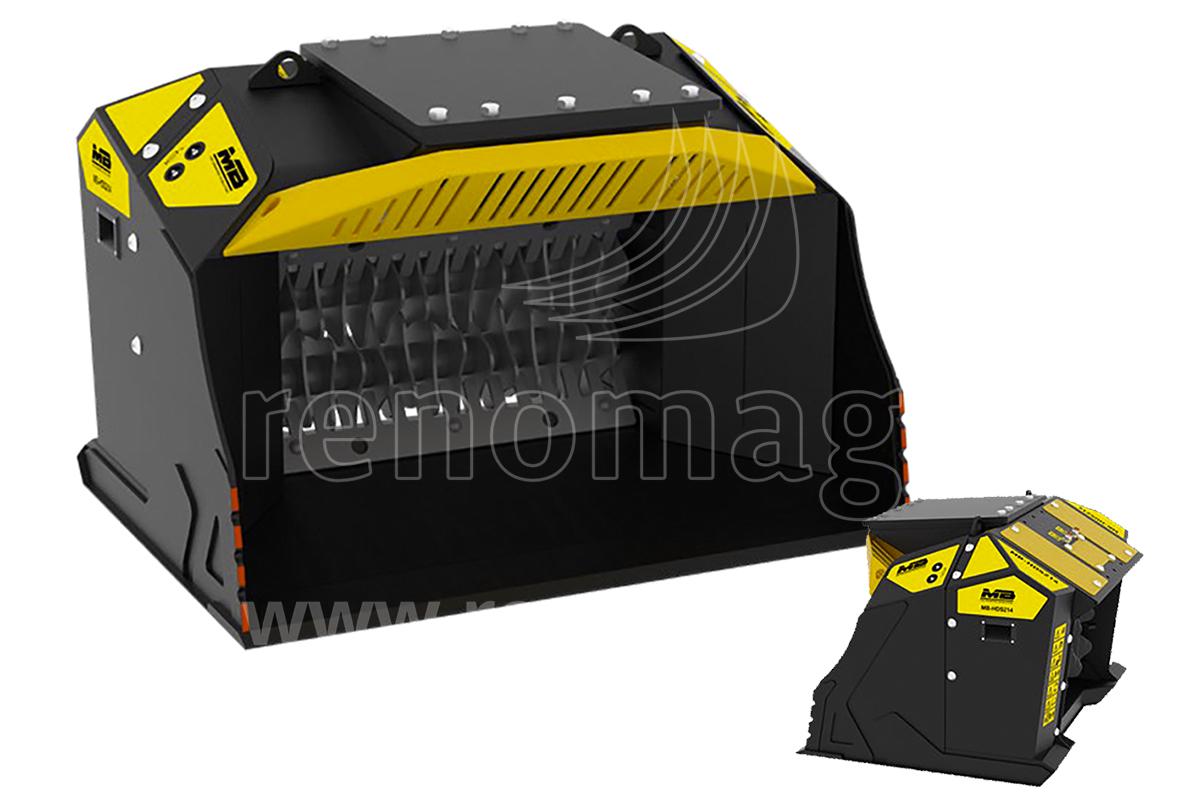

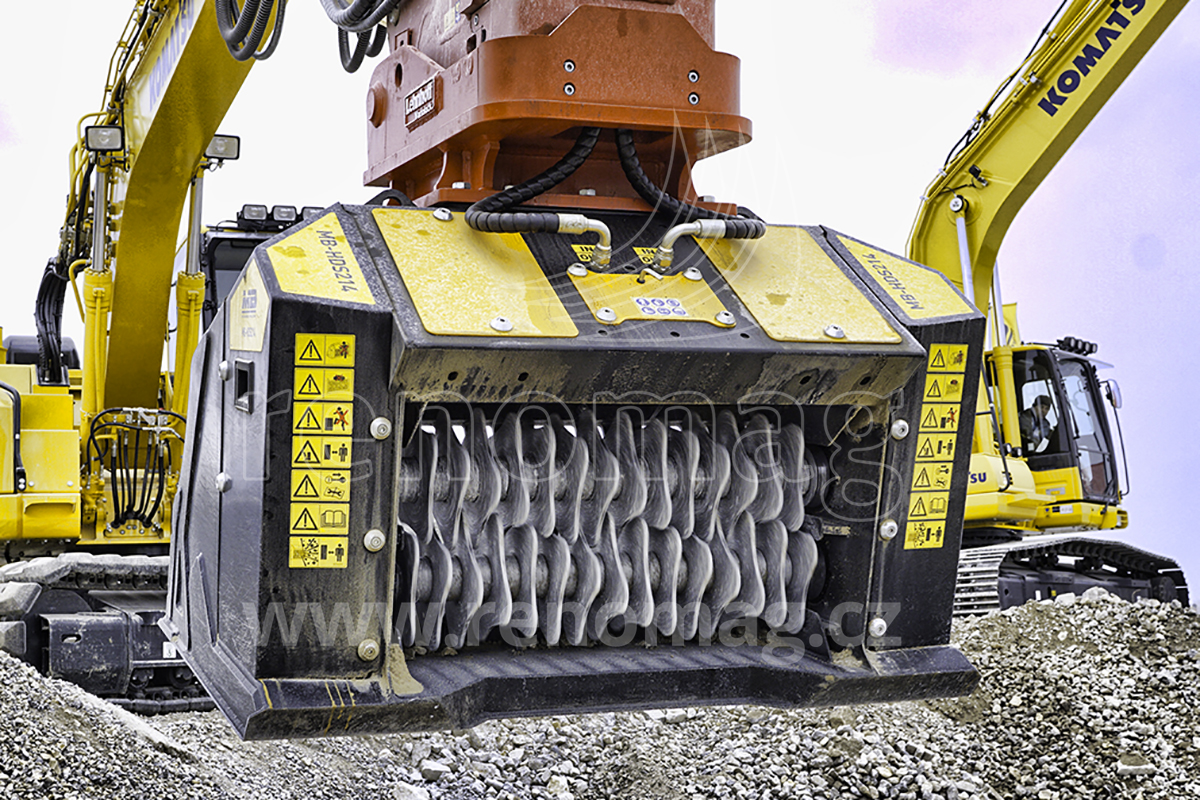

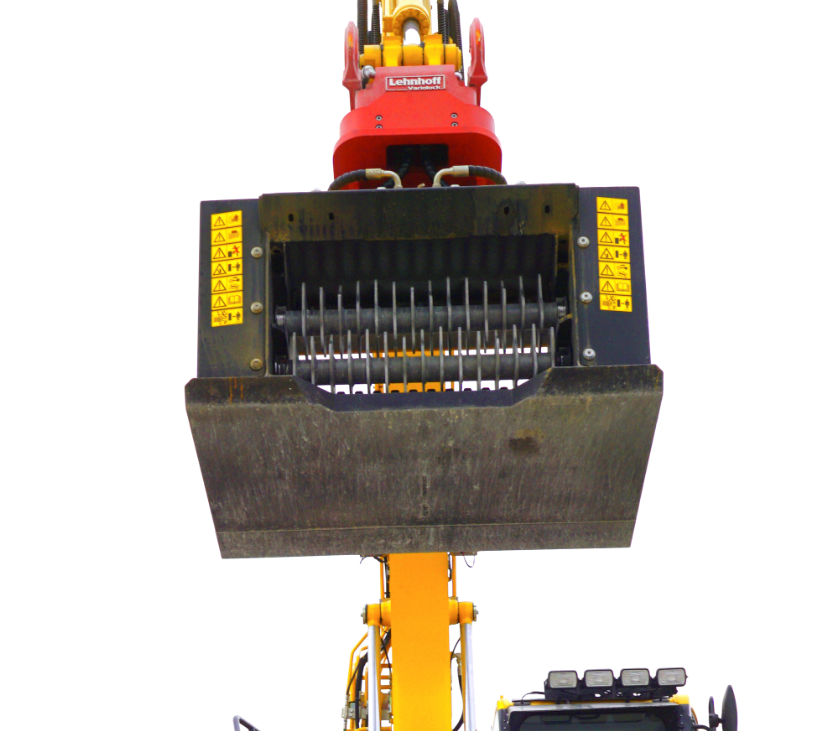

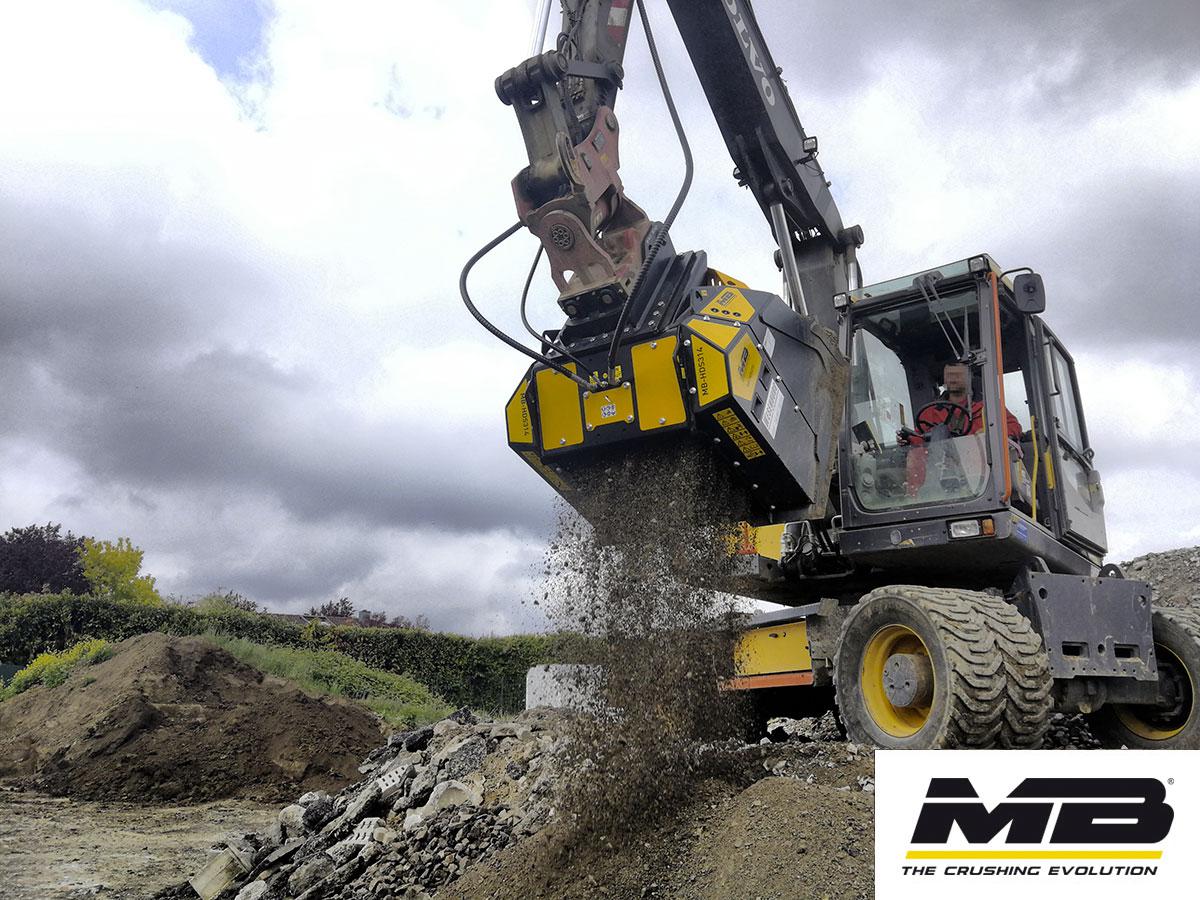

The innovative MB-HDS Shafts Screener is available in four models. With interchangeable shafts, suitable for different material selection requirements. As with all MB Crusher's machines, the MB-HDS can be easily installed on excavators, backhoes, skid steers and loaders of any brand (ranging from 3,5 to 35 tonnes) allowing them to work on any job site: from city construction to remote agricultural grounds.
| Specifiacations | MB-HDS214 | MB-HDS314 | MB-HDS320 | MB-HDS323 | |
|---|---|---|---|---|---|
| Equipment | Excavator | ≥ 6 ≤ 12 ton | ≥ 10 ≤ 20 t un | ≥ 16 ≤ 24 ton | ≥ 18 ≤ 35 ton |
| Backhoe loader | ≥ 5 ≤ 8 ton | ≥ 6 ≤ 10 t un | ≥ 9 ≤ 12 ton | ≥ 10 ≤ 15 ton | |
| Loader | ≥ 3.5 ton | - | - | - | |
| Load capacity | 0.5 m3 | 0.9 m3 | 1.35 m3 | 1.65 m3 | |
| Dimensions | 1380 × 1125 × 950 mm | 1430 × 1350 × 1250 mm | 2050 × 1350 × 1250 mm | 2330 × 1500 × 1250 mm | |
| Pressure | > 200 bar | > 225 bar | > 250 bar | > 250 bar | |
| Counter pressure | - | < 5 bar | - | < 5 bar | |
| Weight | 0.82 ton | 1.4 ton | 2.1 ton | 2.4 ton | |
| Oil flow | 75 l/min. | 100 l/min. | 130 l/min. | 130 l/min. | |
Accessories:
- spare parts kit
- fixed coupling
- shaft holder
- RC compost kit
- RM mixer kit
- RE8 fine sifting kit
- RE16 fine sifting kit
- RQ20 medium sifting kit
- RQ50 medium sifting kit
| Shaft kit | Settings | Application | |
|---|---|---|---|
| RC compost kit | 36.5* mm | Composting | |
| RM mixer kit | - | Composting | Soil Aeration | |
| RE8/RE16 fine sifting kit | 8.5/16 mm | Screening damp soil, dry soil, light construction debris | Composting | Soil Aeration | |
| RQ20/RQ50 medium sifting kit | 20/50 mm | Screening damp soil, dry soil, light construction debris | Composting | Soil Aeration | |
