Maximum breakout force
An optimised deep bucket body shape for a 100% fill factor, with a radius that minimises the distance from the teeth to the mounting bracket for maximum transfer of digging force.
[ Severe duty rock ]

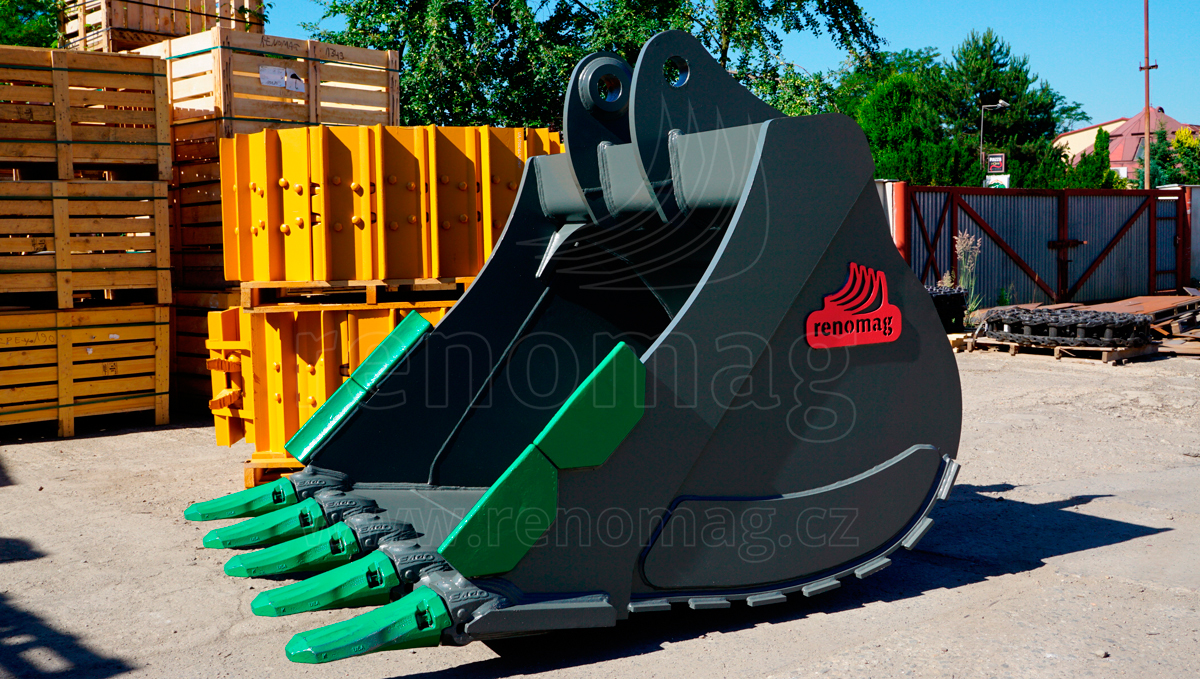

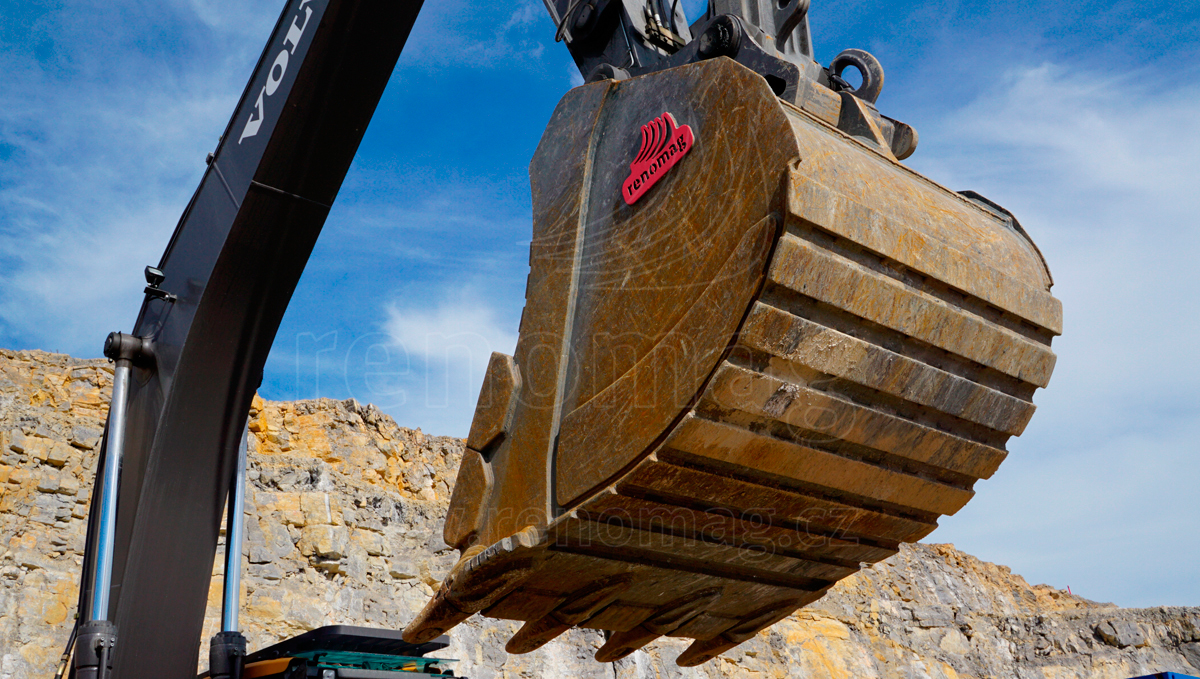

The HXS rock bucket is an excellent tool made from high-quality materials for work in hard-to-rip materials of excavatability class 5 and above. Buckets in the HXS configuration are designed for more demanding work in rock such as granite, shale, basalt, sandstone and similar. The Hardox® In My Body™ certificate guarantees the quality of the Hardox® 500 TUF material used in manufacture, with outstanding wear resistance and strength.
With a product made from Hardox® 500 TUF
You load more material
A lighter bucket with the same capacity
You extend service life
You cut fuel consumption

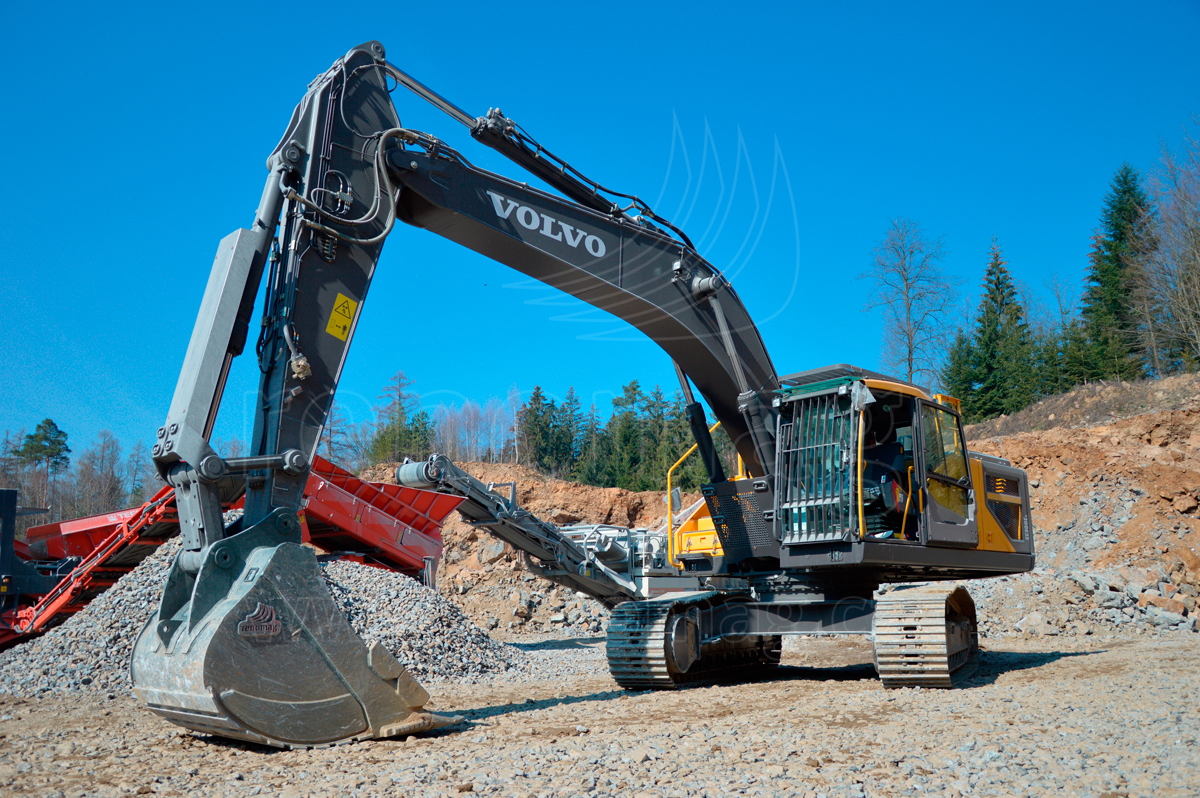

Do you run an excavator over 50 tonnes?
Buckets for large excavators over 50 tonnes
We also build HXS buckets to order for large excavators – the design is optimised for the specific make, machine type and working environment.
Key features and benefits
Uncompromising design
Click a number on the model or in the list to see where the HXS bucket gets its durability.
-
Ensures high stiffness and torsional resistance at the critical points where the components meet.
-
The optimised deep shape of the bucket body delivers a 100% fill factor. The minimised distance from the teeth to the mounting bracket maximises the transfer of digging force. The double floor radius eases penetration through the material and improves wear resistance. The bucket body tapers towards the rear and towards the upper mounting bracket, increasing productivity.
-
The bucket body and the one-piece reinforced side plates give the bucket structural integrity.
-
With outstanding penetration and an integrated locking pin, it delivers optimal digging performance.
-
Armouring on the floor and the lower section of the sides, with a side cutting edge for improved penetration.
Material service life comparison
Hardox® 500 TUF is a revolutionary material
4×+longer service life than S355 structural steel
- The option to cut weight and increase capacity, and lower fuel consumption.
- More work in less time, high productivity and reduced CO₂ emissions.
- Long service life, excellent strength and lower service costs.
Anyone can buy a bucket with the Hardox® In My Body certificate, but only a select few can manufacture one. The trademark on a product proves it is made from genuine Hardox® material and marks it out as a first-class product with outstanding toughness and endurance.
Why choose a Renomag bucket?
Five benefits you gain
Easy loading and dumping
The double floor radius eases penetration through the material, speeds up the fill and dump cycle and significantly improves the wear resistance of the bucket floor.
Fast work cycle
The body tapering from the cutting edge towards the mounting bracket, and the floor tapering from the cutting edge to the rear, increase productivity, minimise resistance when penetrating the ground, cut machine fuel consumption and abrasive wear, and speed up excavation and material handling.
Outstanding penetration and versatility
Our preferred choice is the ESCO® Ultralok® tooth system, with excellent penetration and service life. It is advanced and cost-effective, and answers users' needs when the machine works in varied conditions.

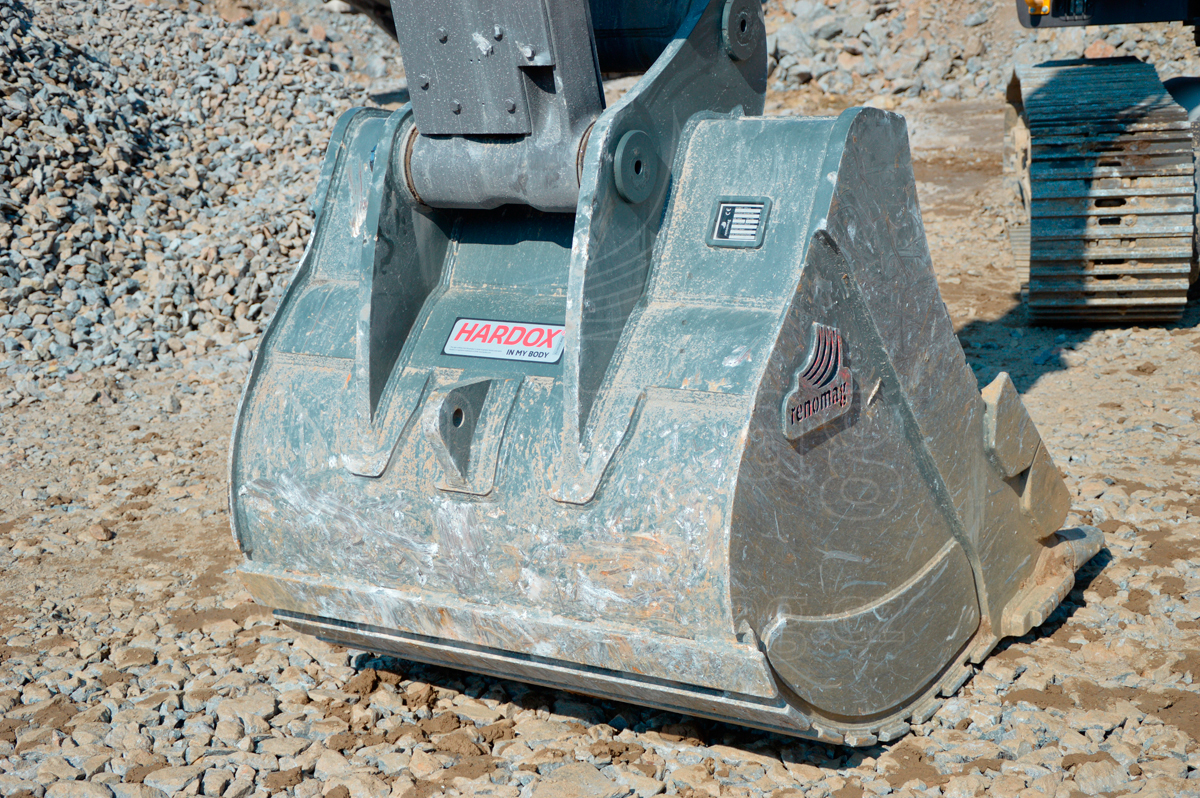

Hardox® In My Body durability
Anyone can buy a bucket with the Hardox® In My Body certificate, but only a select few can manufacture one. The Hardox® In My Body trademark on a product proves it is made from genuine Hardox® material and marks it out as a first-class product with outstanding toughness and endurance.
Which Renomag bucket suits you best?
Pick a material, we'll recommend a bucket
The right range depends on the abrasiveness of the material and on impact loading. Click a material or a bucket range.
LowAbrasionHigh
LowImpactHigh
The classification is indicative, based on the Renomag catalogue.
HXS
Rock buckets
Typical materials
