Maximum breakout force

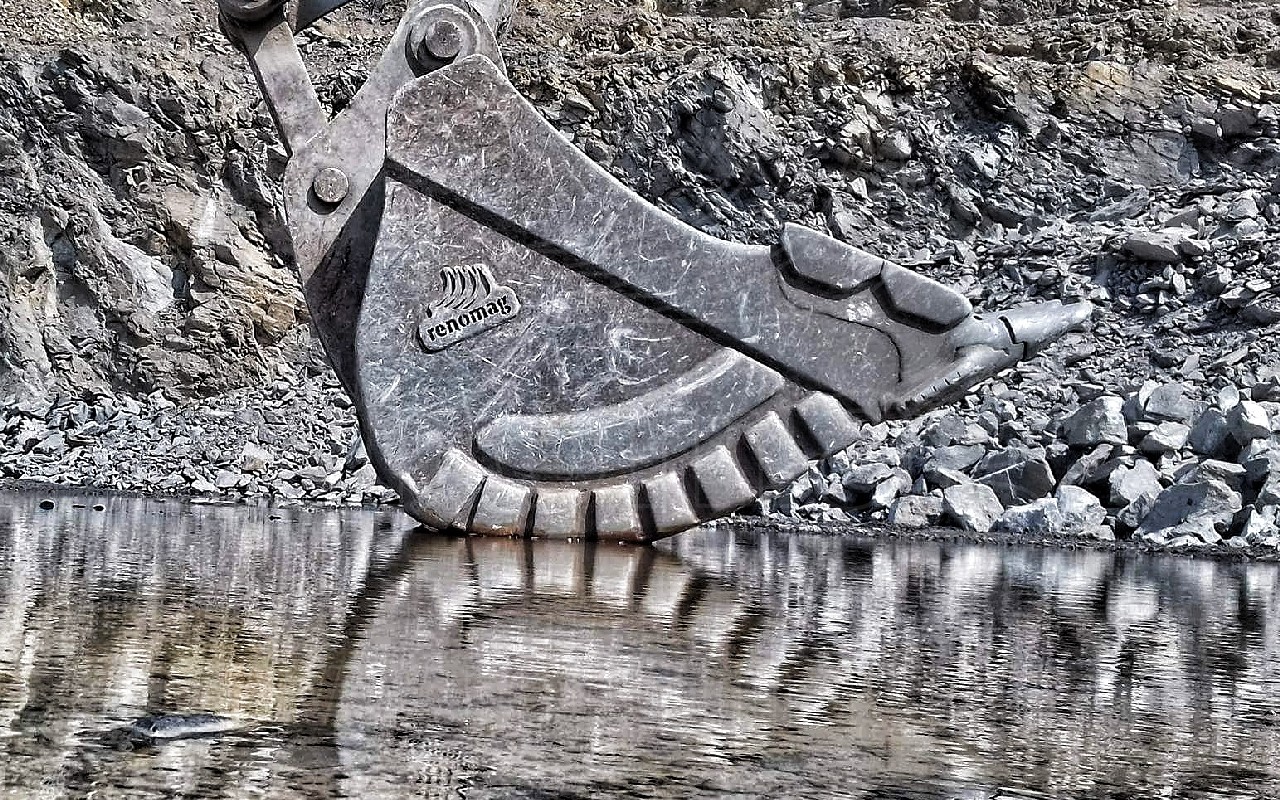

An optimised deep bucket body shape for a 100% fill factor, with a radius that minimises the distance from the teeth to the mounting bracket for maximum transfer of digging force.
Choose a bucket

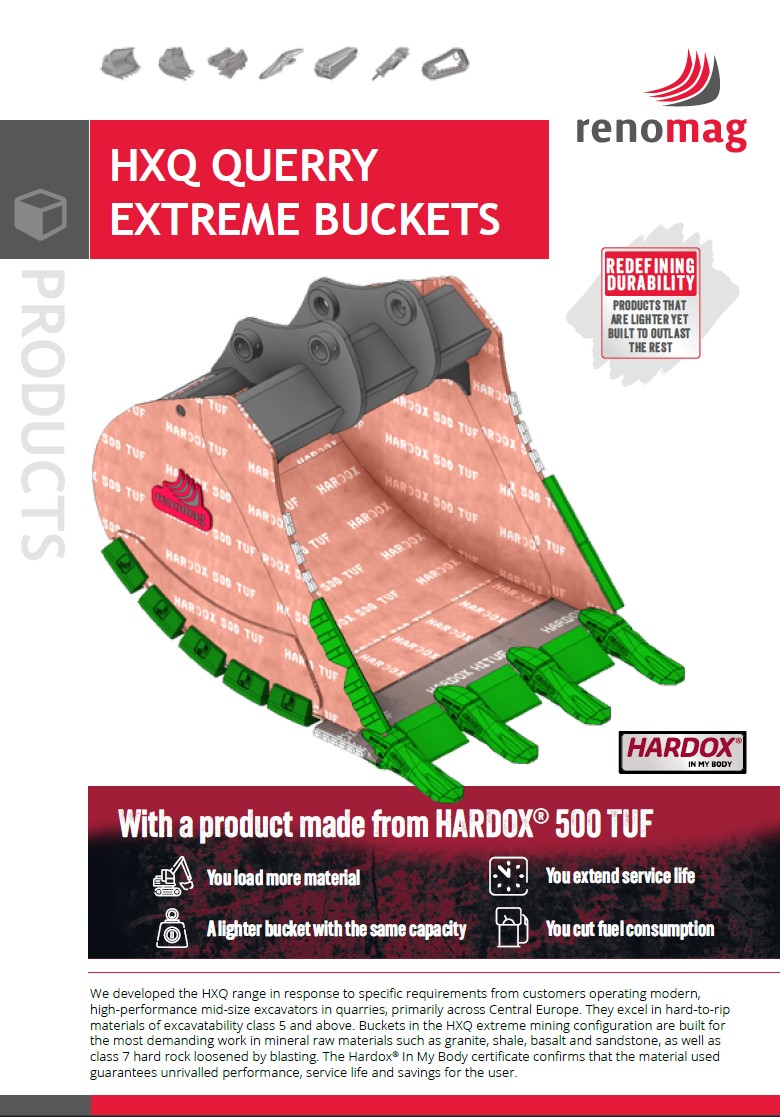

[ Quarry duty rock ]

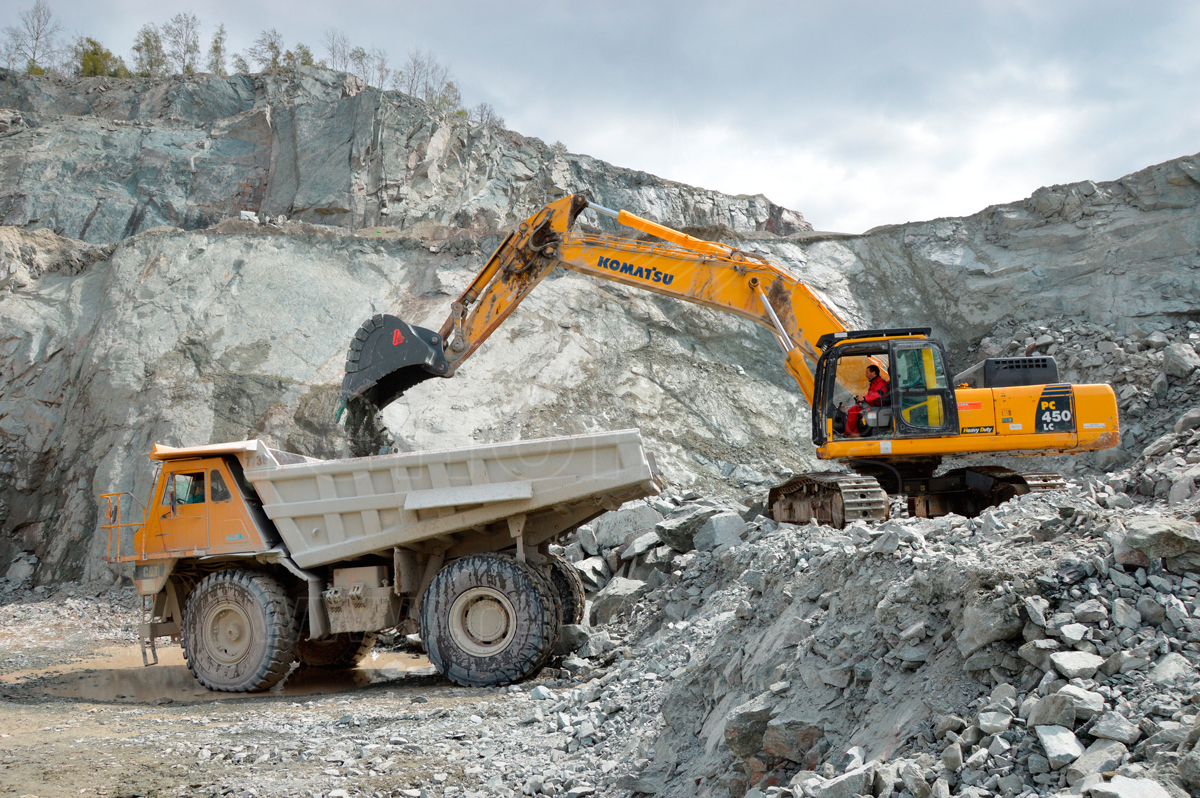

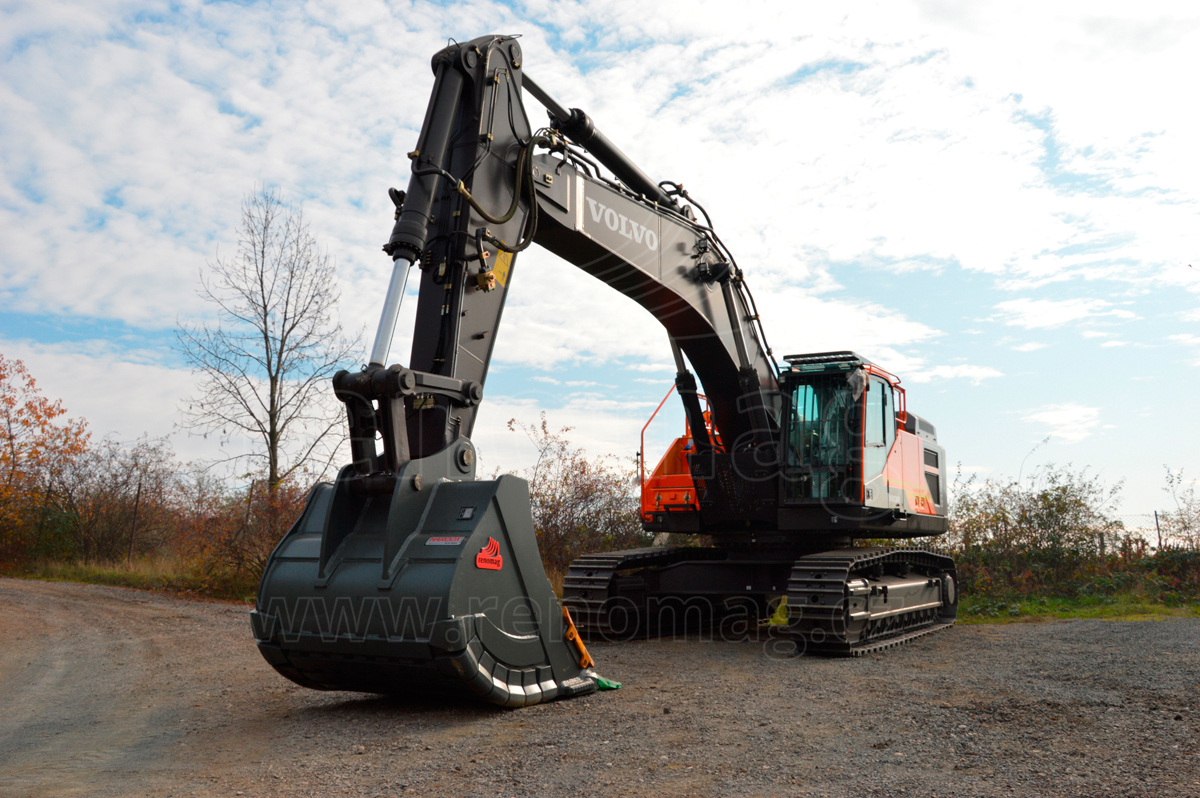

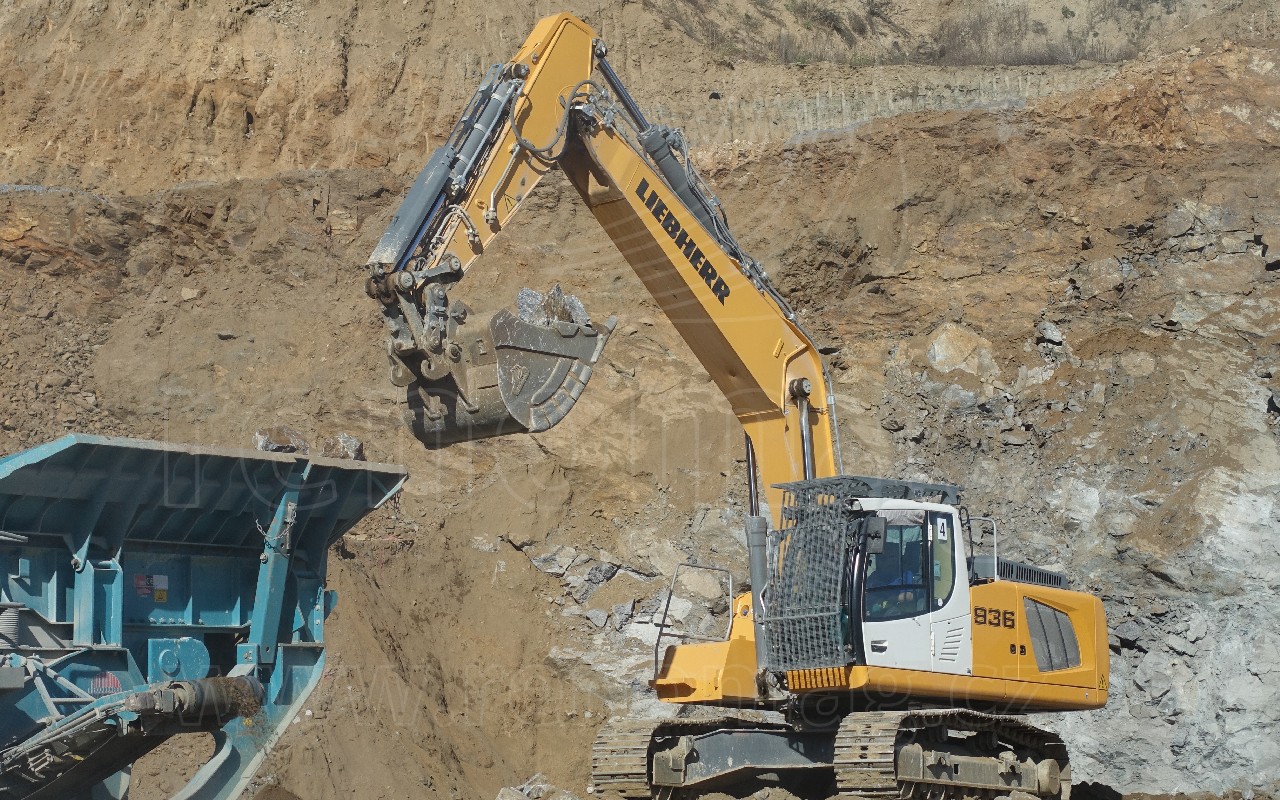

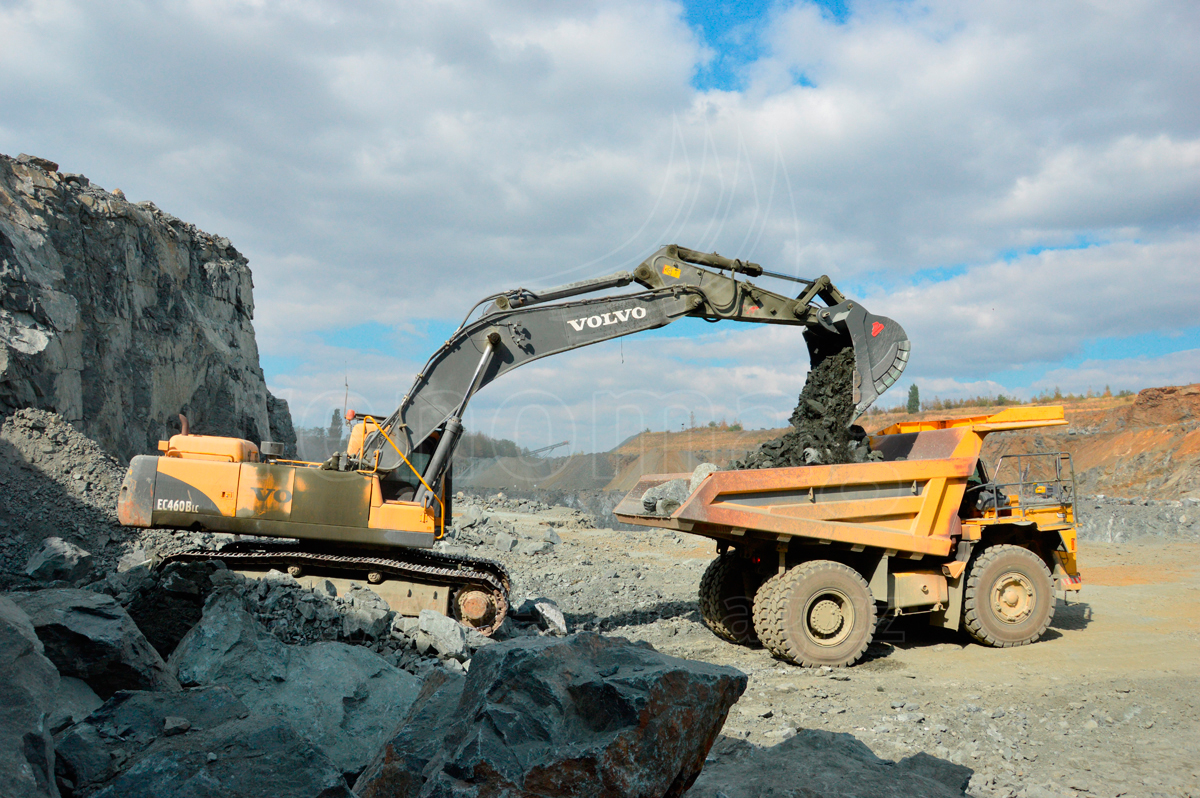

We developed the HXQ range in response to specific requirements from customers operating modern, high-performance mid-size excavators weighing approx. 30 to 40 tonnes in quarries, primarily across Central Europe. They excel in hard-to-rip materials of excavatability class 5 and above. Buckets in the HXQ extreme mining configuration are built for the most demanding work in mineral raw materials such as granite, shale, basalt and sandstone, as well as class 7 hard rock loosened by blasting. The Hardox® In My Body certificate confirms that the Hardox® 500 TUF material used guarantees unrivalled performance, service life and savings for the user.
With a product made from Hardox® 500 TUF
You load more material
A lighter bucket with the same capacity
You extend service life
You cut fuel consumption
Key features and benefits
Uncompromising design
Click a number on the model or in the list to see where the HXQ bucket gets its durability.
-
Ensures high stiffness and torsional resistance at the critical points where the components meet.
-
The optimised deep shape of the bucket body delivers a 100% fill factor. The minimised distance from the teeth to the mounting bracket maximises the transfer of digging force. The double floor radius eases penetration through the material and improves wear resistance. The bucket body tapers towards the rear and towards the upper mounting bracket, increasing productivity.
-
The bucket body and the one-piece reinforced side plates give the structure its integrity.
-
Delivers optimal digging performance.
-
Protect the structural components of the bucket sides. Welded on, or bolt-on replaceable on request. For larger machines, additional 700 HB side protection is available. Further supplementary protection parts can be added to suit the customer’s needs and requirements.
-
Against abrasion, plus cast supplementary protection elements on the underside of the sides.
Material service life comparison
Hardox® 500 TUF is a revolutionary material
4×+longer service life than S355 structural steel
- The option to cut weight and increase capacity, and lower fuel consumption.
- More work in less time, high productivity and reduced CO₂ emissions.
- Long service life, excellent strength and lower service costs.
Anyone can buy a bucket with the Hardox® In My Body certificate, but only a select few can manufacture one. The trademark on a product proves it is made from genuine Hardox® material and marks it out as a first-class product with outstanding toughness and endurance.

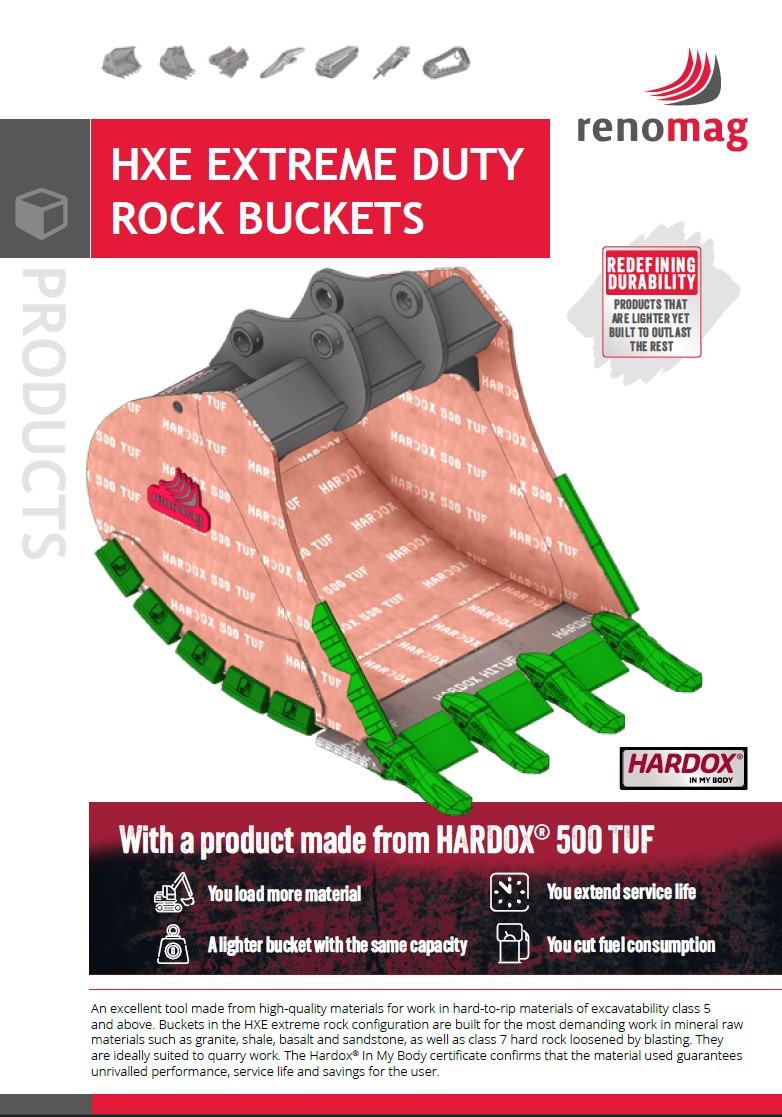

[ Extreme duty rock ]

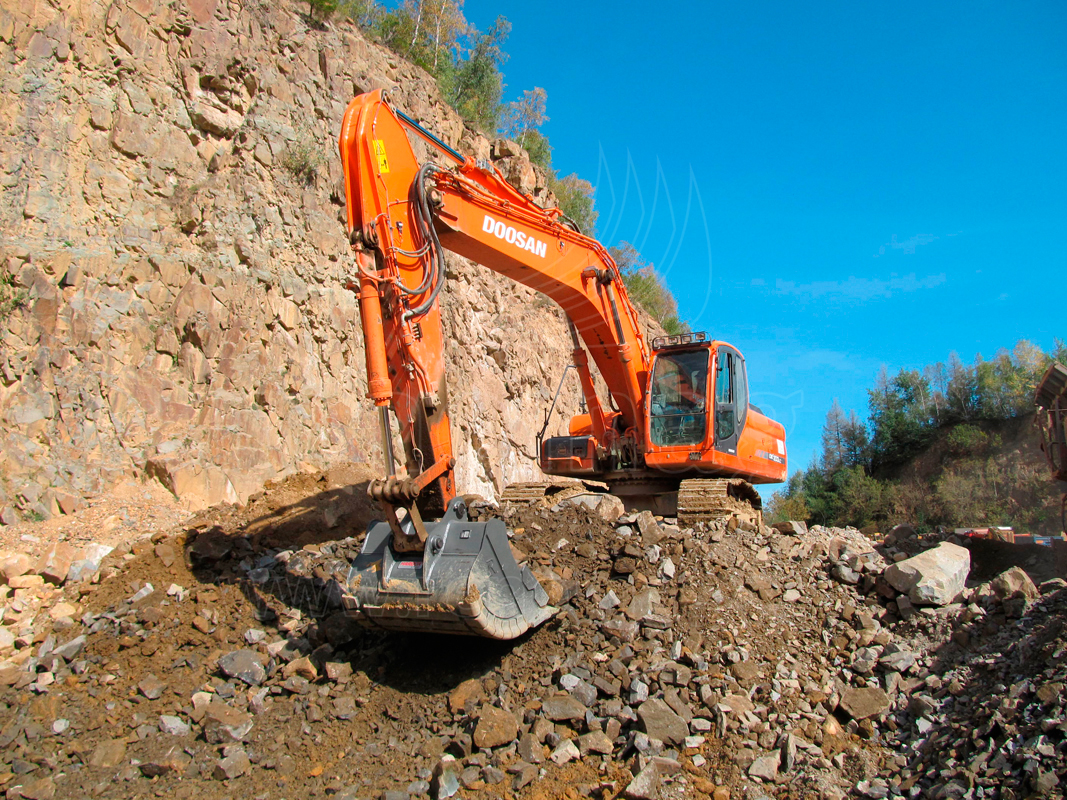

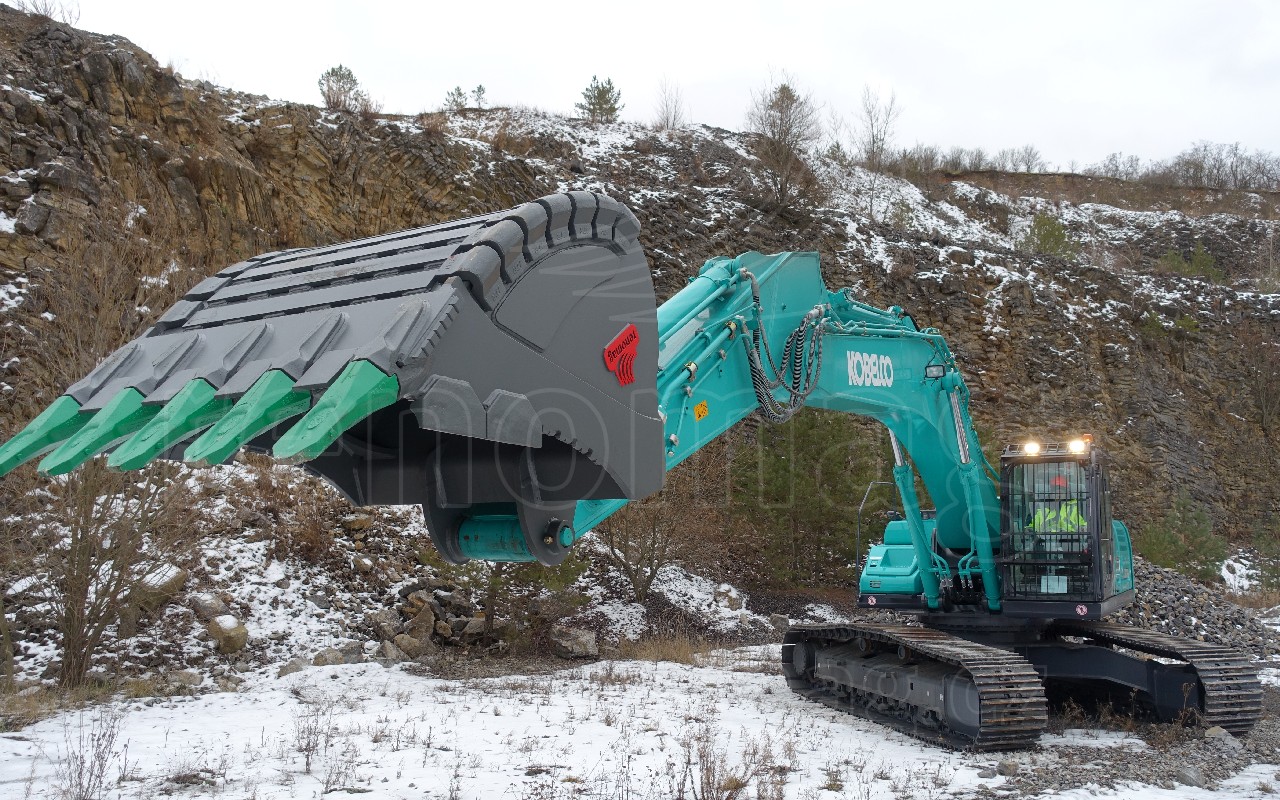

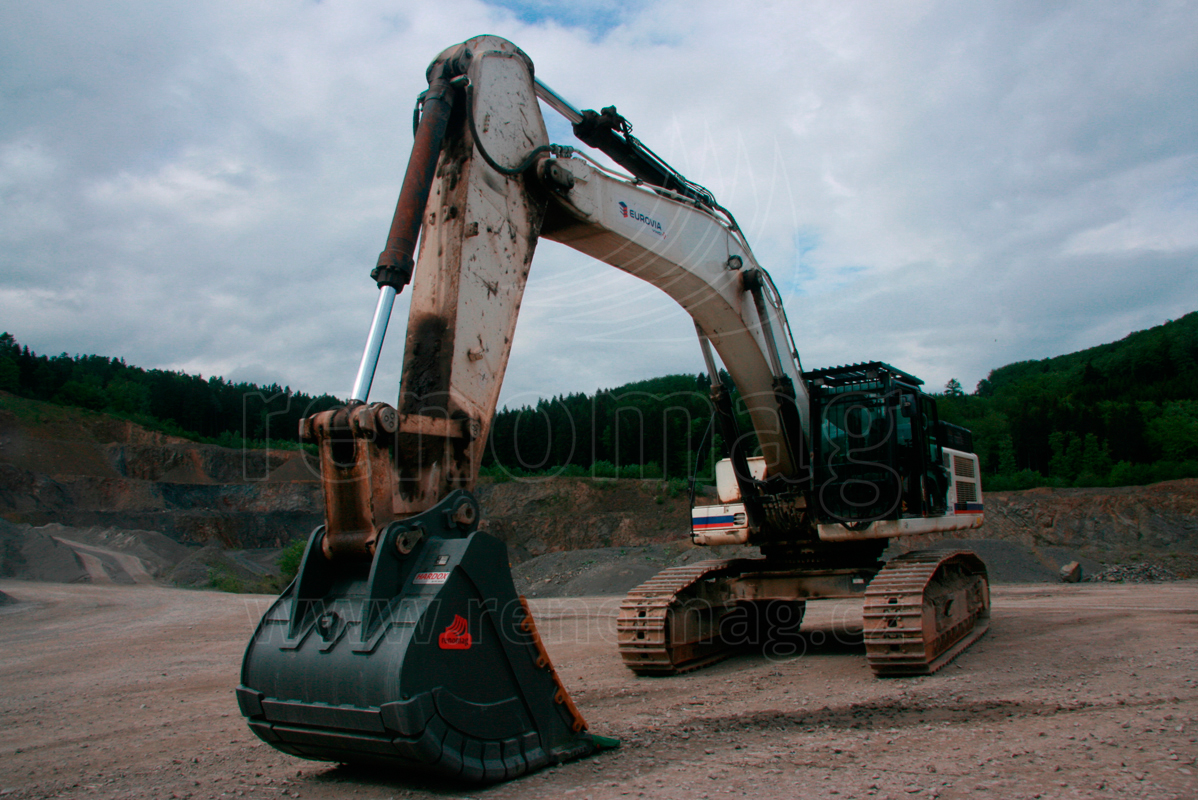

An excellent tool made from high-quality materials for work in hard-to-rip materials of excavatability class 5 and above. Buckets in the HXE extreme rock configuration are built for the most demanding work in mineral raw materials such as granite, shale, basalt and sandstone, as well as class 7 hard rock loosened by blasting. They are ideally suited to quarry work. The Hardox® In My Body certificate confirms that the Hardox® 500 TUF material used guarantees unrivalled performance, service life and savings for the user.
With a product made from Hardox® 500 TUF
You load more material
A lighter bucket with the same capacity
You extend service life
You cut fuel consumption
Key features and benefits
Uncompromising design
Click a number on the model or in the list to see where the HXE bucket gets its durability.
-
Ensures high stiffness and torsional resistance at the critical points where the components meet.
-
And a shorter distance between the pin and the teeth for maximum digging force.
-
The bucket body and the one-piece reinforced side plates give the structure its integrity.
-
Delivers optimal digging performance.
-
Against abrasion, plus cast supplementary protection elements on the underside of the sides.
-
Protect the structural components of the bucket sides. Welded on, or bolt-on replaceable on request.
-
Shields the side of the cutting edge.
-
Extends service life and saves on service costs.
Material service life comparison
Hardox® 500 TUF is a revolutionary material
4×+longer service life than S355 structural steel
- The option to cut weight and increase capacity, and lower fuel consumption.
- More work in less time, high productivity and reduced CO₂ emissions.
- Long service life, excellent strength and lower service costs.
Anyone can buy a bucket with the Hardox® In My Body certificate, but only a select few can manufacture one. The trademark on a product proves it is made from genuine Hardox® material and marks it out as a first-class product with outstanding toughness and endurance.
Why choose a Renomag bucket?
Five benefits you gain
Easy loading and dumping
The double floor radius eases penetration through the material, speeds up the fill and dump cycle and significantly improves the wear resistance of the bucket floor.
Fast work cycle
The body tapering from the cutting edge towards the mounting bracket, and the floor tapering from the cutting edge to the rear, increase productivity, minimise resistance when penetrating the ground, cut machine fuel consumption and abrasive wear, and speed up excavation and material handling.
Outstanding penetration and versatility
Our preferred choice is the ESCO® Ultralok® tooth system, with excellent penetration and service life. It is advanced and cost-effective, and answers users' needs when the machine works in varied conditions.
Hardox® In My Body durability
Anyone can buy a bucket with the Hardox® In My Body certificate, but only a select few can manufacture one. The Hardox® In My Body trademark on a product proves it is made from genuine Hardox® material and marks it out as a first-class product with outstanding toughness and endurance.
Which Renomag bucket suits you best?
Pick a material, we'll recommend a bucket
The right range depends on the abrasiveness of the material and on impact loading. Click a material or a bucket range.
LowAbrasionHigh
LowImpactHigh
The classification is indicative, based on the Renomag catalogue.
HXE / HXQ
Extreme rock and mining buckets
Typical materials
Switch bucket
